Product Specifications
| Prod Model: |
M820,MD618,MY250,MY3060,M7125A,M7140A, SHA4080AHD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Established in 2005, as a growing factory located in dafeng city, jiangsu province, we, Yancheng Chunjiang Machinery Co., Ltd. ( C&J Machinery Co., Ltd. ) is specialized in manufacturing all kinds of surface grinders machine and shot blast cleaning machines for many years. Also we can supply all kinds of lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.
With high quanlity and competitve price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina. Poland, Turkey and so on.
In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.
Also quanlity assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warrantly to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quanlity, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyerand we will forever do our best to proceed and gain further sucess. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
At present our main products range as following:
Surface grinding machine
Our surface grinding machine, combining the technology and experience of tainwan grinding machine, is our honorary product, and it is constantly improving from its material, structure, mechanical principle and precision adjustment,
And with CE certificate some models has been popular in Europe market. Such as SGA2550AHD, M7135A, SGA4080AHD.
The major products range is as following:
Manual Surface grinder: M618A, M820, M250
Auto electric Surface grinder: MD618A, MD820, MD250

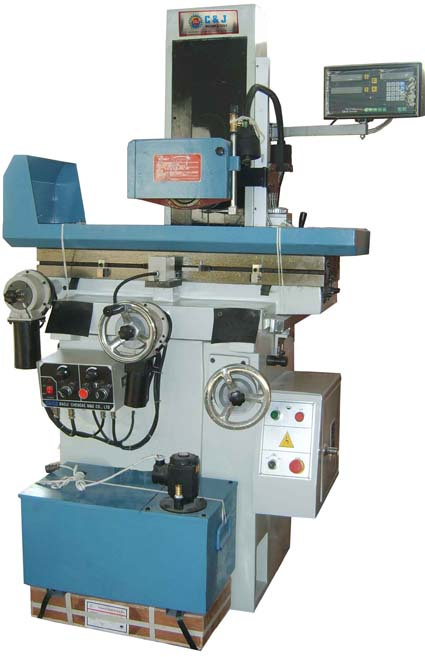

Auto Hydraulic Surface grinder: MY618, MY820, MY250, MY3060, MY3075, M230A, M7125A, M7135A, M7140A
Full Auto (PLC) hydraulic Surface grinder: SG2050AHD, SGA2550AHD, SGA3063AHD, SGA4080AHD, SGA40100AHD
Wheel Head Moving Surface grinder: M7130, M7132, M7140, M7150, M7160, M7163
Full Auto PLC Column moving surface grinder: SG50100AHD, SG50160AHD, SG60120AHD, SG60160AHD, SG60220AHD, SG50100SD, SG50160SD, SG60120SD, SG60160SD, SG60220SD,
These above surface grinding machine all adopt the V-type guide, bring transmission by synchronous belt. Meanwhile, adopt the exceeding precise P4 level ball bearing for spndle, having complete attachment with electro magnetic chuck or the dense chuck of permanent magnetism and having the following features: Operating simple and convenient, low noise, high precision for processing, steady mechanical performance, reliable hydraulic and electric system of table longitudinal and cross movement and long life service, mostly suitable for applying to process various moulds and ceramics and so on.
![]()
![]()
| Main specifications | Units | M820 |
| Max. workpiece to be Ground( L× W× H) | mm | 500× 200× 320 |
| Max. Grinding Length | mm | 530 |
| Max. Grinding Width | mm | 220 |
| Distance From Table Surface To Spindle Center | mm | 490 |
| Slide way | | V-type rail with Steel-ball |
| V-type rail with Steel-ball | Kg | 100 |
| Table Size (L× W) | mm | 480× 200 |
| Number of T -Slot | mm× n | 12× 1 |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution |
| Wheel Size (dia. × width× bore ) | mm | 200× 16× 31.75 |
| Spindle Speeds | 50Hz | rpm | 2850 |
| Spindle Motor | Kw | 1.1 |
| Coolant Pump | Kw | 0.4 |
| Minimum of Numerical Display | mm | 0.001 |
| Machine Size (L× W× H) | mm | 1680× 1140× 1800 |
| Packing Size (L× W× H) | mm | 1140× 1630× 1960 |
| GrossNet | T | O. 85 0.75 |
Technical Parameters
![]()
![]()
| Main specifications | | MY3060 | MY3075 |
| Max. workpiece to be Ground ( L× W× H) | mm | 600× 300× 390 | 750× 310× 390 |
| Max. Grinding Length | mm | 630 | 780 |
| Max. Grinding Width | mm | 320 | 320 |
| Distance From Table Surface To Spindle Center | mm | 550 | 550 |
| Slide way | | V-type rail with Plane | V-type rail with Plane |
| V-type rail with Steel-ball | Kg | 180 | 200 |
| Table Size (L× W) | mm | 600× 300 | 750× 300 |
| Number of T -Slot | mm× n | 12× 1 | 12× 1 |
| Speed OF Working Table | m/min | 3-25 | 3-25 |
| Cross Feed On Handwheel | mm | 0.02/div. 2.5/rev. | 0.02/div. 2.5/rev. |
| Vertical Feed On Handwheel | mm | 0.01/div. 2/rev. | 0.01/div. 2/rev. |
| Wheel Size (dia. × width× bore ) | mm | 250× 25× 76.2 | 250× 25× 76.2 |
| Spindle Speeds | 50Hz | rpm | 1450 | 1450 |
| Spindle Motor | Kw | 2.2 | 2.2 |
| Hydraulic station motor | Kw | 2.25 | 2.25 |
| Working Pressure | Mpa | 3 | 3 |
| Max. Capacity | L/min | 20 | 20 |
| Minimum Of Numerical | L | 100 | 100 |
| Coolant Pump | Kw | 0.04 | 0.04 |
| Minimum of Numerical Display | mm | 0.001 | 0.001 |
| Machine Size (L× W× H) | mm | 1900× 1530× 1750 | 1900× 1530× 1750 |
| Packing Size (L× W× H) | mm | 1500× 1750× 1980 | 1500× 1750× 1980 |
| Gross Net weight | T | 1.2 1.33 | 1.3 1.4 |
Technical Parameters
| Main specifications | | MY820 | MY618 |
| Max. workpiece to be Ground ( L× W× H) | mm | 500× 220× 320 | 480× 180× 250 |
| Max. Grinding Length | mm | 520 | 500 |
| Max. Grinding Width | mm | 220 | 190 |
| Distance From Table Surface To Spindle Center | mm | 490 | 335 |
| Slide way | | V-type rail with Plane | V-type rail with Plane |
| V-type rail with Steel-ball | Kg | 200 | 200 |
| Table Size (L× W) | mm | 480× 220 | 460× 180 |
| Number of T -Slot | mm× n | 12× 1 | 12× 1 |
| Speed OF Working Table | m/min | 3-23 | 3-23 |
| Cross Feed On Handwheel | mm | 0.02/div. 2.5/rev. | 0.02/div. 2.5/rev. |
| Vertical Feed On Handwheel | mm | 0.01/div. 1.25/rev. | 0.01/div. 1.25/rev. |
| Wheel Size (dia. × width× bore ) | mm | 200× 16× 31.75 | 200× 16× 31.75 |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| Spindle Motor | Kw | 1.1 | 1.1 |
| Hydraulic station motor | Kw | 1.5 | 1.5 |
| Working Pressure | Mpa | 3 | 3 |
| Max. Capacity | L/min | 18 | 18 |
| Minimum Of Numerical | L | 80 | 80 |
| Coolant Pump | Kw | 0.04 | 0.04 |
| Minimum of Numerical Display | mm | 0.001 | 0.001 |
| Machine Size (L× W× H) | mm | 1680× 1140× 1800 | 1550× 1150× 1590 |
| Packing Size (L× W× H) | mm | 1140× 1630× 1960 | 1000× 1140× 1760 |
| Gross Net weight | T | O. 85 0.75 | 0.80 0.70 |
Technical Parameters
![]()
| Main specifications | unit | MD820 | MD618A |
| Max. workpiece to be Ground ( L× W× H) | mm | 480× 200× 320 | 420× 180× 250 |
| Max. Grinding Length | mm | 520 | 430 |
| Max. Grinding Width | mm | 220 | 190 |
| Distance From Table Surface To Spindle Center | mm | 490 | 335 |
| V-type rail with Steel-ball | Kg | 100 | 100 |
| Table Size (L× W) | mm | 480× 200 | 400× 180 |
| Number of T -Slot | mm× n | 12× 1 | 12× 1 |
| Speed OF Working Table(stepless) | m/min | 3-20 | 3-20 |
| Cross Feed On Handwheel | mm | 0.02/div. 2.5/rev. | 0.02/div. 2.5/rev. |
| Auto transverse movement(stepless) | mm | 0.5-10 | 0.5-10 |
| Rapid transverse movement | r/min | 144 | 144 |
| Wheel Size (dia. × width× bore ) | mm | 200× 16× 31.75 | 180× 13× 31.75 |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| Spindle Motor | Kw | 1.1 | 1.1 |
| Auto transverse movement power | Kw | 0.2 | 0.2 |
| Auto longitudinal movement power | Kw | 0.2 | 0.2 |
| Machine Size (L× W× H) | mm | 1680× 1140× 1800 | 1550× 1060× 1590 |
| Packing Size (L× W× H) | mm | 1140× 1280× 1960 | 1060× 1280× 1590 |
| GrossNet | T | O. 85 0.75 | O. 80 0.70 |
![]()
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer's greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
Established in 2005, as a growing factory located in dafeng city, jiangsu province, we, Yancheng C&J Machinery Co., Ltd. is specialized in manufacturing all kinds of surface grinders machine and shot blast cleaning machines for many years. Also we can supply all kinds of lathe machine, milling machine, driling machine and sawing machine, shearing machine, press brake and so on other machine tools based on customer's requirement.
With high quanlity and competitve price & rapid delivery time our goods have been popular in every country. Our goods has been mainly exported to USA and Europe and other Asia, south America countries, especially, Vietnam, Brazil, Argentina. Poland, Turkey and so on.
In our company we have many professional technicians specialized in design, manufacture, inspection and after-sales services of our grinding machine.
Also quanlity assurance has been always the key secret of our success. Every single machine is thoroughly tested under load before delivery the customers. And we provide one-year parts warrantly to our customers around the world as well as professional technical support and services.
With the sprite of "quality first, user supreme", we're insisting on seeking survival with quanlity, to seek the development with reputation, to compete by technology, with the management concept of taking customer as god, we provide best quality with best price to our overseas buyerand we will forever do our best to proceed and gain further sucess. Your demand is our pursuit forever. We are ready to establish mutual benefits with companies both at home and abroad. If you are interested in any of our products, please feel free to contact us immediately.
At present our main products range as following:
Surface grinding machine
Manual Surface grinder: M618A, M820, M250
Auto electric Surface grinder: MD618A, MD820, MD250
Auto Hydraulic Surface grinder: MY618, MY820, MY250, MY3060, MY3075, M230A, M7125A, M7135A, M7140A
Full Auto (PLC) hydraulic Surface grinder: SG2050AHD, SGA2550AHD, SGA3063AHD, SGA4080AHD, SGA40100AHD
Wheel Head Moving Surface grinder: M7130, M7132, M7140, M7150, M7160, M7163
Full Auto PLC Column moving surface grinder: SG50100AHD, SG50160AHD, SG60120AHD, SG60160AHD, SG60220AHD, SG50100SD, SG50160SD, SG60120SD, SG60160SD, SG60220SD,
Cylindrical grinding machine (MW1320, M1332, M1350, M1363, M1380), Universal cylindrical grinding machine M1420, MW1420, M1432B, M1450, M1463) and so on.
Shot blast cleaning machine
- Q31 Rotary barrel( drum) type shot blast cleaning machine
- Q32 Tumblast type shot blast cleaning machine
Q324, Q326, Q328, Q3210 tumble rubber belt shot blasting machine
Q3210 Auto loading tumble shot blasting machine
- Q35 Turn table type shot blasting machine
- Q36 series car type shot blasting machine
- Q38/48/58 series hanging chain type shot blasting machine
- Q76 series car type shot blasting machine
- Q37 Spinner Hook tpye shot blast cleaning machine
- Internal & external pipe series shot blasting machine
- Q69 Roller type pass through shot blast cleaning machine
Q69 series Steelplate/profile series shot blasting machine (horizontal)
QH- Section/H-Bean structural steel series shot blasting machine ( Vertical)
- Steel plate pretreatment line
- Air recycling type/ Mechanical recycling shot peeing machine
- Internal & external pipe series shot blasting machine
- Big Sand Blasting room
- Blasting coating production line
- Sand blasting machine
- Dust collector (pleated bag with vibrating mechanism, cartridge filter with pulse valve)
- Blast wheels(impellers), shot blasting turbines system
( motor direct driven or belt driven 5.5kw, 7.5kw, 11kw, 15kw, 18.5kw, 22kw, 30kw, 75kw ),
- All kinds of spare parts
-blades, control cage, impeller, wheel hub, end liner, top liner, side liner, chamber liner.
