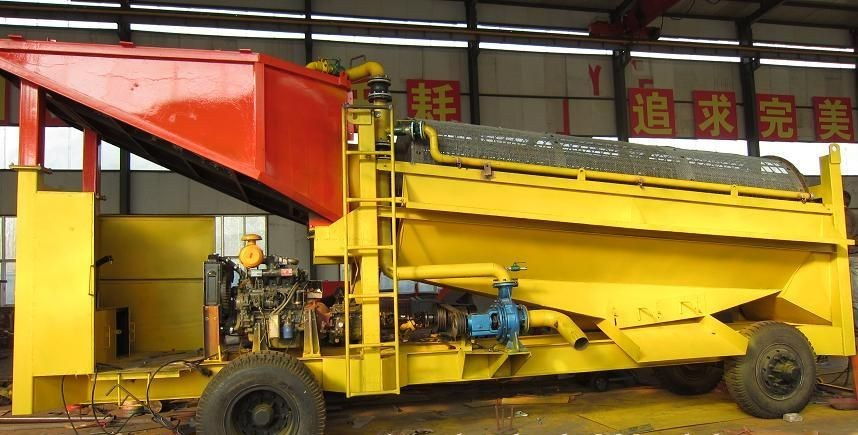

Portable / Mobile trommel screen with wheels
It is suit to small scale mine processing. It is portable and mobile easy to move to other place from one place when finish the job. This mineral washing machine is popular in African, Asian, South American due to its easy to move and easy to operate, moreover, it is low cost, miner just cost a little budget to buy Many miner came to our factory to buy it for their small alluvial, sand mineral.
Includes water pump, water pipe, diesel engine / electric motor, wheel, can be easy movable,
odel | Capacity (t/h) | Wheel
quantity | Water pump
& water pipe | Diesel engine
/ Electric motor | Drum
diameter | Drum length | Screen size(mm) | Weight
(kgs) |
| GL510 | 5-10 | 4 | include | Diesel/Electric | 500 mm | 1300 mm | <3-20 | 800 |
| GL615 | 10-20 | 4 | include | Diesel/Electric | 600 mm | 1500 mm | <3-20 | 1000 |
| GL715M | 20-30 | 4 | include | Diesel/Electric | 700 mm | 1500 mm | <3-20 | 1100 |
| GL815 | 30-40 | 4 | include | Diesel/Electric | 800 mm | 1500 mm | <3-20 | 1200 |
| GL1020 | 40-100 | 4 | include | Diesel/Electric | 1000 mm | 2000 mm | <3-20 | 2300 |
| GL1225 | 100-160 | 4 | include | diesel engine | 1200 mm | 2500 mm | <3-20 | 3000 |
| GL1530 | 150-200 | 4-6 | include | Diesel/Electric | 1500 mm | 3000 mm | <3-20 | 4000 |
| GL1545 | 200-300 | 4-6 | include | Diesel/Electric | 1500 mm | 4500 mm | <3-20 | 4500 |
| GL1848 | 300-450 | 4-6 | include | Diesel/Electric | 1800 mm | 4800 mm | <3-20 | 6000 |
| GL2055 | 400-600 | 4-6 | include | Diesel/Electric | 2000 mm | 5500 mm | <3-20 | 8000 |
Qingzhou Zhicheng Machinery Equipmeny Co., Ltd. is located in Qingzhou, one of the historic ancient State, that has advantageous geographical position and convenient transportation. The company is an integrated enterprise of research, development, manufacture. The main products are: Dredger, gold vessels, cutter suction dredger, sand dredging vessel, jet suction sand vessel, gold panning dredger, chain bucket sand dredger, sand making machine, sand screening machine, sand washing machine and so on. The company's mining machine can manage to complete the excavation of sand, filter and separate procedures. One-time qualified products can be divided into sand, gravel, the stones. It has the feature of efficiency, low cost, flexible operation, reliable quality. Product is suitable for complex terrain around the country, narrow or wide riverbed, abandoned the sandfield, the Gobi Desert, etc...The company can design, manufacture and install the equipment, to provide the best possible operational program according to the customer's requirement. At the same time we also install for the user, to guide trainers in order to improve the service, remove the user's worries.
We take "quality first, customer first" for the purpose " to produce 100% qualified products, 100% service to meet customer needs. " The companies adhere to the "people-oriented, science and technology to enterprise, integrity cooperation and common development" business purposes, willing to set up the most harmonious and mutually beneficial cooperation with first-class products, first-class service with the majority of users.
Mr. Lang, the general manager and all the staff, warmly welcome customers to visit and guide the work. We are ready to provide you with good, satisfactory service, and sincerely cooperate with you to create a brilliant future!
