Product Specifications
Prod Model: |
TS-811 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Customized |
Color: |
White, Wooden, Silver, etc. |
Hardware: |
High Quality Made-in-China or Roto |
Open Style: |
Swing |
Opening Pattern: |
Horizontal |
Function: |
Invisible |
Product Description

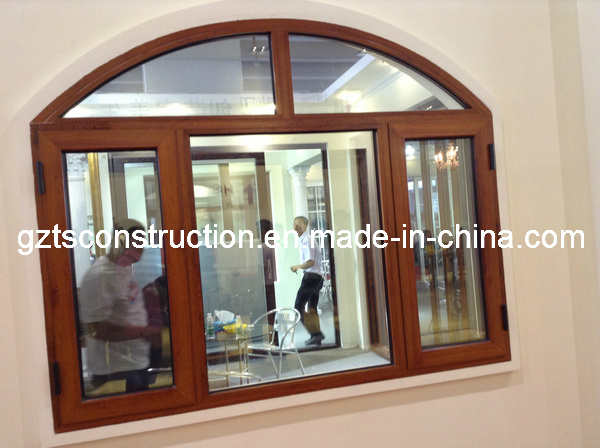

Double Glazing Aluminium Casement Windows/aluminum window/window with AS/NZS2208
1. Product Features:
Air-proof, Water-proof, Sound Insulation, Thermal Insulation, Anti-aging
Good combustion-retarding performance, Easy maintainance, Environmental protection.
2. Aluminum Profile:
1) Thickness
1.4-2.0mm or as client's demand.
2) Material:
6063T4, 6063T5, 6063T6, 6061T4, 6061T5, 6061T6 etc.
3) Surface Treatment
Anodized, Electrophoretic, Powder Coated, PVDF, Wood Finished.
4) Series
40 Series, 50 Series, 55 Series, 60 Series, 70 Series, 80 Series, 90 Series, 100 Series, 110 Series etc.
3. Glass:
1) Thickness
5mm, 6mm, 8mm
5mm/6mm+6A/9A/12A+5mm/6mm
5mm/6mm+0.38/0.76/1.52mm+5mm/6mm
2) Material
Plate Glass, Tempered/Enforced Glass, Low-E Glass
3) Surface Treatment
Filmed, Reflective, Clear
4) Classfication
Laminated, Insulation, Sigle
4. Hardware system:
Our standard hardware are in good quality, Chinese Brand or German Brand(ROTO, AUBI, GU). Customers' stipulated brand is available.
5. Seal system:
Ternary ethylenepropylene rubber sealing strip, black color, good quality.
6. Dimensions:
As per customers' sizes.
7. Mosquito meshes (screens):
Metal and nylon material net are available.
8. Performance parameters:
1) Sound Insulation
2) Water Resistance
3) Wind Pressure Resistance
4) Air Permeation Resistance
9. Packing:
Foam Paper+carton, pearl cotton+carton, wooden pallet etc
10. Drawing:
Our R&D team can make the windows and doors according to the Clients Demand or Drawing.
Any questions you have, pls don't hesitate to contact me.
1
|
Item name
|
Aluminium Casement window |
2
|
Aluminium profile
|
Standard/energy efficient aluminium profile with 1.4mm thickness.
|
3
|
Profile surface treatment
|
powder coating(with 70um thickness)
Anodized(with 15um thickness)
Electrophoresis(with 25um thickness)
PVDF(with 40um thickness)
|
4
|
Glazed(AS2208)
|
A: single glazed like 5mm or 6 mm glass
B: double glazed like 5+6/9/12+5mm.
C: Triple glazed like 5+9+5+9+5mm
D: Laminated glazed like 5+0.38/0.76/1.52+5mm
E: Low-e glazed/tinted glazed/frosted/obscure glazed
F: Can be with colonial/decorative bars
G: All the glass we choose are Safety/tempered/toughed glazed
|
5
|
Glazed seal
|
Rubber (EPDM) or silicone sealant.
|
6
|
Hardware
|
German brand Roto/AUBI or made in china
|
7
|
Screen fly net
|
Nylon/Fiber glass/metal material
|
8
|
Dimensions
|
According to your design
|
9
|
Window color
|
Any color is available
|
10
|
Packing
|
Cardboard and iron pallet
|
11
|
Delivery time
|
6-8 week
|
12
|
Performance Parameters
|
1. Soud insulation: 33dB/500HZ 2. Wind pressure resistance: 4.0kPa 3. Air permeation resistance: 0.5m² /(h. m. ) 4. Water resistance: 500Pa 5. U-Value< 2.0w/m2. k
|
Tiansheng Industry & Trade (HK) Co., Ltd /Guangzhou Tiansheng Building Materials Co., Ltd is a professional manufacturer of windows, doors and curtain wall.
With so many years' experience, good quality, fast delivery time, best after-sale service, pretty competitive price and continuously development of new products, have established long-term business relationship with so many customers from all over the world.
Our mainly products are as followings: Windows and door, curtain wall, framless glass door, sun room/green house, wrought iron railing/fence/gate, garage door. Our products are widely applied in thousands of projects, including commercial & high-end residential, house, villas, school, hotel, hospital, offices. As our products are customized, please give your window/door measurements, drawings and requirements to us, we will provide you with the best solutions.
We are here waiting for your inquiries. If you are interested in our products, please don' t hesitate to contact us by sending inquiry or calling. We sincerely hope to establish business relationship with you from all over the world based on the principle of Mutual Benefits!
