Features:
Aluminum alloy chassis, fan less design
Intel Celeron N2930 up to 2.16 GHz
SOC chipset
DDR3L 1333MHz, up to 4GB
2* Mini Pcle, 1*PClex1
Realtek 8111E 10/100/1000Mbps 2*RJ-45 ports
1*RS232/422/485, 3*RS232, 2*USB3.0, 2*USB2.0
DVI-I, Y cable transfer to DVI-D to VGA, option 24 bit LVDS
Shock &vibration resistance
Widely voltage input, Ignition for Various Vehicle
SYSTEM | CPU | Intel Celeron N2930 up to 2.16GHz |
| ARM | DDR3L 1333MHz, up to 4 GB |
| EXPANSION | 2* Mini Pcle, 1*PClex1 |
| DISPLAY | HDMI&VGA |
| M/K | USB |
| LAN | DVI-I, Y cable transfer to DVI-D to VGA, option 24 bit LVDS |
| SSD | mSATA, 16GB to 512GB |
| HDD | 2.5"HDD Bay |
| COM | 1*RS232/422/485, 3*RS232 |
| USB | 2*USB3.0, 2*USB2.0 |
| System control | 1*Power switch , reset switch x1 |
| LED indicator | 1*Power light,HDD light×1 |
| AUDIO | Mic-in /Phone/Line out |
| LED LIGHT | Power light×1,HDD light×1 |
| WATCH DOG TIMER | Timer system reset/interruption |
| OS | Windows 7,Windows XP,Windows XP Embedded, Linux |
| POWER | DC IN-PUT
VOLTAGE IN-PUT | built-in DC-DC Converter |
| DC 12V |
AC IN-PUT
VOLTAGE IN-PUT | power adapter (option ) |
| 100VAC~240VAC@50~60Hz |
| OPTION | WIFI /3G |
| MECHANICAL | STRUCTURE | aluminum-case, Wrinkle-shape for cooling and ultrathin |
| COLOUR | Silver aluminum+ silver SGCC |
| INSTALLATION | on-wall, desktop installation |
| DIMENSIONS | 167*108.4*45.7mm |
| WEIGHT | 1.0Kg |
| ENVIROMNTAL | OPERATION TEMPERATURE |
-10°C ~ 55°C - SSD Without Airflow; -10°C ~ 45°C - HDD With out Airflow |
STORAGE TEMPERATURE | -20°C ~ 70°C (-4°F ~ 158°F) |
| STORAGE HUMIDITY | 5~90%@40°C,non-condensing |
| VIBRATION | 5 grms / 5 ~ 500Hz / in work status (SSD) |
| 1 grms / 5 ~ 500Hz /in working status(HDD ) |
| SHOCK | 50 g peak acceleration (duration 11ms)(CFD) |
20 g peak acceleration (duration 11ms)(HDD ) |
EMC | CE /FCC A class, UL |
| ORDER INFORMATION |

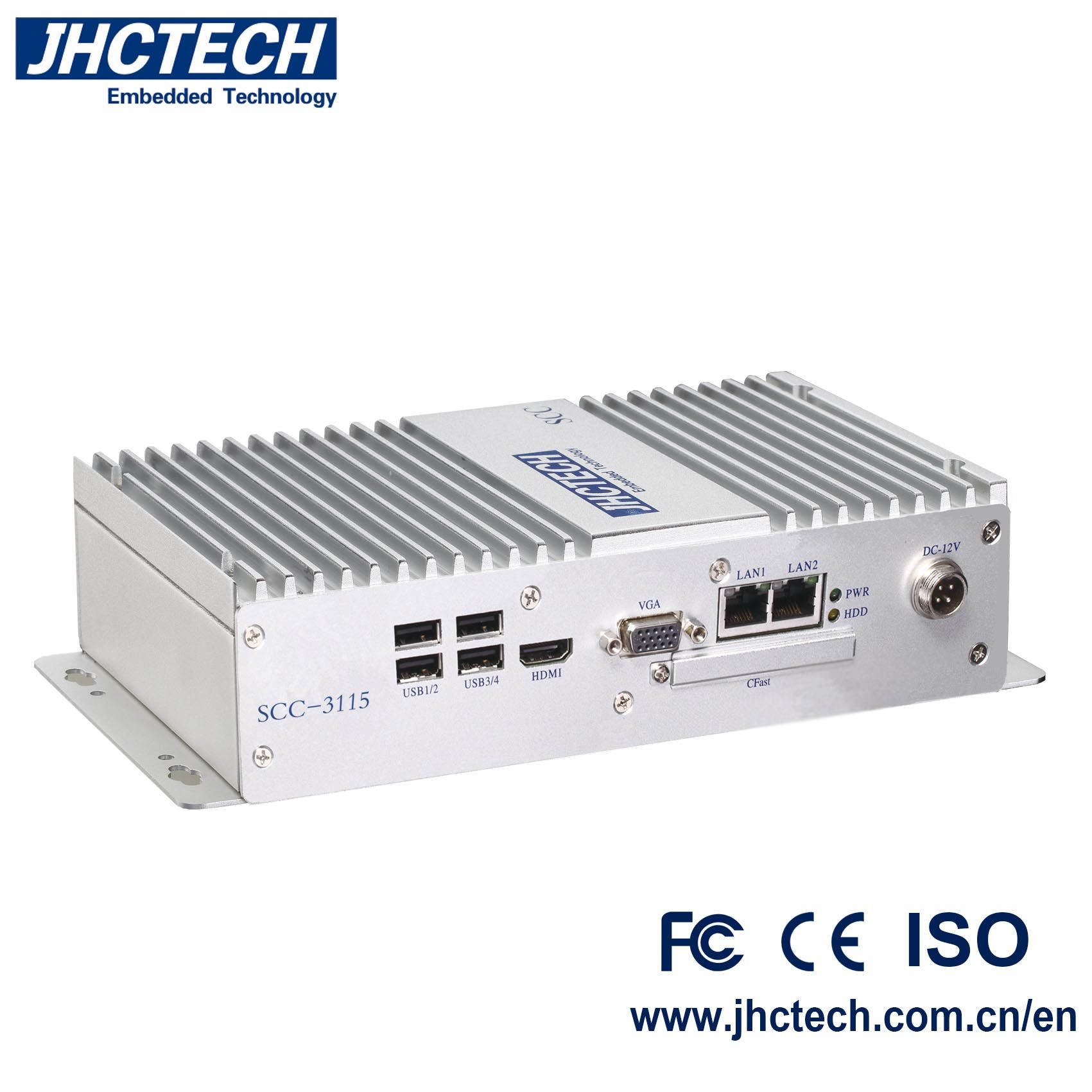

| SCC-3115 |
Intel Celeron N2930 up to 2.16 GHz
SOC chipset
DDR3L 1333MHz, up to 8GB
2* Mini Pcle, 1*PClex1
Realtek 8111E 10/100/1000Mbps 2*RJ-45 ports
1*RS232/422/485, 3*RS232 2*USB3.0, 2*USB2.0
DVI-I, Y cable transfer to DVI-D to VGA, option 24 bit LVDS
Wifi/3G |
PA-60DC12 |
| AC/DC power adapter ,DC12V/5A 60W |
