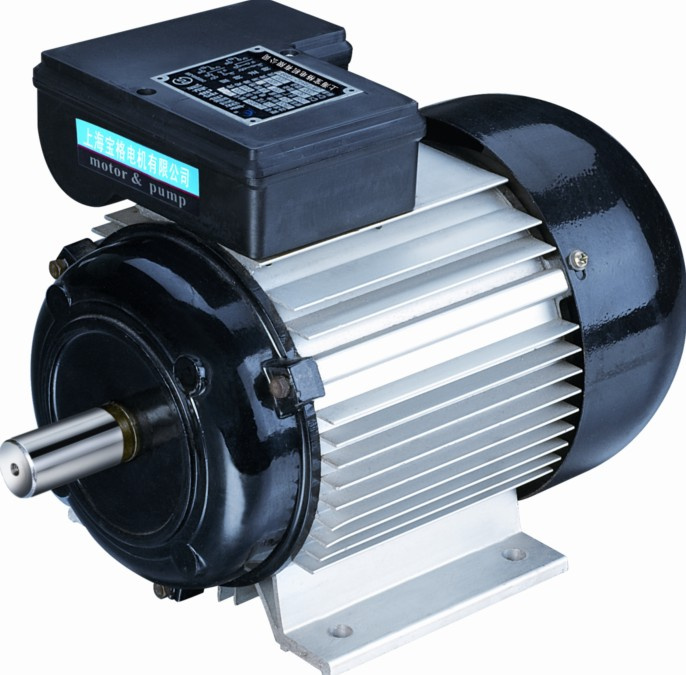

YY single phase capacitor running asynchronous electric motor 's Feature: High power factor and efficiency, little shape, less weight, excellent running performance, low noise, easy maintance.
Usage range: This single phase ac motor is widely used in Fans, ventilations and all kinds of light loading and none loading start equipments.
Protection Class: IP44/IP54/IP55 Cooling Type: IC0141
Insulation Class: B or F Operation Type: S1
Rated Voltage: 115/230, 220V Rated Frequency: 60 Hz(50Hz)
Frame material: Cast iron, cast aluminum and aluminium alloy (only used below 100)
|
Technical Data (220V/50Hz) |
|
Type |
Power |
Speed
(r/min) |
Current
(A) |
Voltage
(V) |
Eff
(%) |
Power Factor
(cosΦ ) |
|
Starting Current |
|
|
Hp |
kW |
|
YY6312 |
1/6 |
0.12 |
2800 |
0.99 |
220 |
60 |
0.92 |
0.5 |
3.5 |
1.7 |
|
YY6322 |
1/4 |
0.18 |
2800 |
1.4 |
220 |
65 |
0.92 |
0.4 |
5 |
1.7 |
|
YY7112 |
1/3 |
0.25 |
2800 |
1.9 |
220 |
66 |
0.92 |
0.4 |
7 |
1.7 |
|
YY7122 |
1/2 |
0.37 |
2800 |
2.7 |
220 |
67 |
0.92 |
0.35 |
10 |
1.7 |
|
YY7132 |
3/4 |
0.55 |
2800 |
3.9 |
220 |
70 |
0.92 |
0.35 |
15 |
1.7 |
|
YY8012 |
1 |
0.75 |
2800 |
5.2 |
220 |
72 |
0.92 |
0.32 |
20 |
1.7 |
|
YY8022 |
1.5 |
1.1 |
2800 |
7.1 |
220 |
75 |
0.95 |
0.32 |
30 |
1.7 |
|
YY90S-2 |
2 |
1.5 |
2800 |
9.5 |
220 |
76 |
0.95 |
0.3 |
45 |
1.7 |
|
YY90L-2 |
3 |
2.2 |
2800 |
13.7 |
220 |
77 |
0.95 |
0.3 |
65 |
1.7 |
|
YY6314 |
1/8 |
0.09 |
1400 |
0.86 |
220 |
52 |
0.92 |
0.45 |
2.5 |
1.7 |
|
YY6324 |
1/6 |
0.12 |
1400 |
1.1 |
220 |
57 |
0.92 |
0.4 |
3.5 |
1.7 |
|
YY7114 |
1/4 |
0.18 |
1400 |
1.5 |
220 |
59 |
0.92 |
0.4 |
5 |
1.7 |
|
YY7124 |
1/3 |
0.25 |
1400 |
2 |
220 |
61 |
0.92 |
0.35 |
7 |
1.7 |
|
YY7134 |
1/2 |
0.37 |
1400 |
3 |
220 |
62 |
0.92 |
0.35 |
10 |
1.7 |
|
YY8014 |
3/4 |
0.55 |
1400 |
4.3 |
220 |
64 |
0.92 |
0.35 |
15 |
1.7 |
|
YY8024 |
1 |
0.75 |
1400 |
5.5 |
220 |
68 |
0.92 |
0.32 |
20 |
1.7 |
|
YY90S-4 |
1.5 |
1.1 |
1400 |
7.5 |
220 |
71 |
0.95 |
0.32 |
30 |
1.7 |
|
YY90L-4 |
2 |
1.5 |
1400 |
9.9 |
220 |
73 |
0.95 |
0.3 |
45 |
1.7 |
Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.
The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.
Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.
Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
