Analog Panel Meter (96, 72, 48, 6L2, 42L6, 42L20, 99T1)
| Price: |
US $ 3-10/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
96, 72, 48, 6L2, 42L6, 42L20, 99T1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
18 Months |
| Delivery Detail: |
Fast Delivery |
| Display: |
Digital |
| Application: |
Telecommunications |
| Installation: |
General Installation Meter |
| Theory: |
Electronic Meter |
| Kind: |
Thermocouple Type |
| Power Source: |
AC and DC |
Product Description

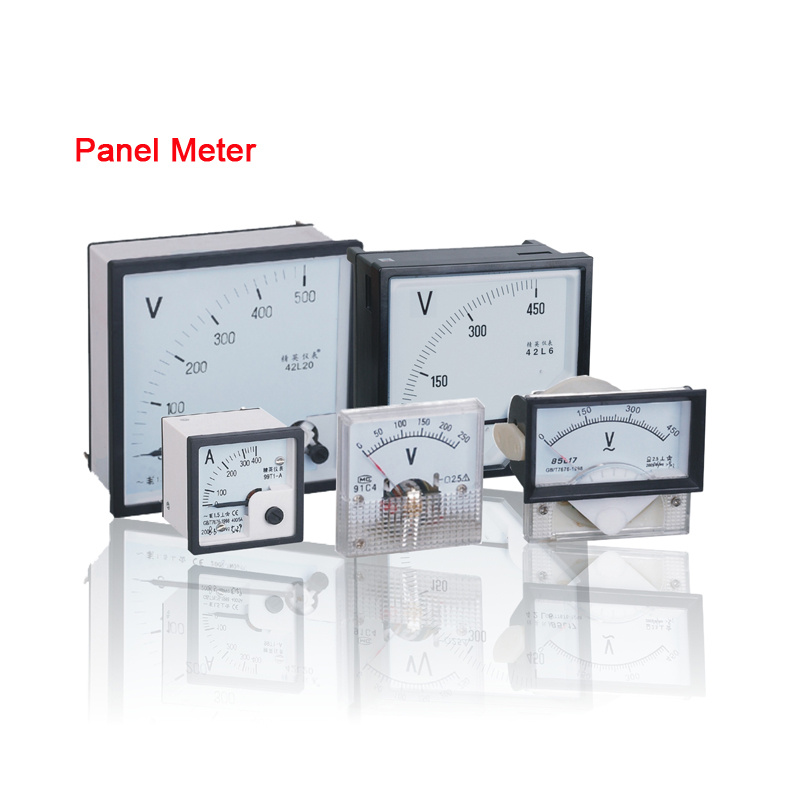

Analog Panel Meter (96, 72, 48, 6L2, 42L6, 42L20, 99T1)
The scope of application
The series product is magnetic series and electromagetism series. Suited in installing on display-faceplate and large switch plate of various control system and distribution system to indicate relative parameter, such as AC, DC, Voltage, power synchronous volume, frequency, expended voltage and overload current etc. The product performance is accordance with GB7676-98standard.
Main technical parameter
Accuracy: Class1.5, 2.5; Service condition: -20~+50º C; Relative humidity: ≤ 85%; Resistance to pressure: When self-frequency constant value various is ± 15%, The error of indicationg volume isn't more than the basic error; Machinery function: It can bear 30m/sencond, acceleration pounding frequeney of 80 to 120times per minute, and two hours tansport jolt; Operating positon: Vertical direction.
|
Name |
Common scale(measure range) |
NOTE
|
Ac ammeter
|
A |
0.5-50A*1T1 10A-200A |
Directly switch on |
|
10/5A-800/5A |
Switch on second current through current transformer |
|
KA |
1KA-10KA |
|
AC voltmeter |
V |
10V-600V |
Directly switch on |
|
KV |
1KV-35KV |
100V Switch on second current through current transformer s |
|
DC ammeter |
Ua, mA |
50ua-500uA 1Ma-500mA |
Directly switch on |
|
A |
1A-15A |
|
15A-750A |
75Mv Buildout current divier |
|
KA |
1KA-3KA |
|
DC voltmeter |
V |
3V-600V |
Directly switch on |
|
KV |
1KV-3KV |
Buidout rated resistance |
