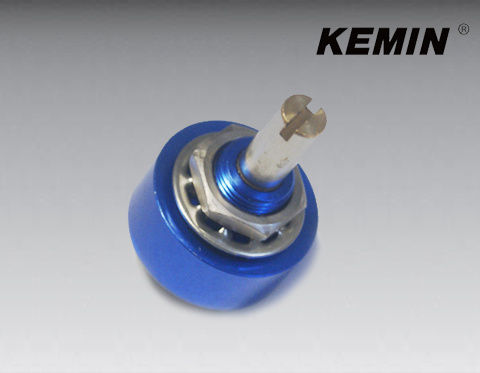

Electrical Characteristics 1
Standard Resistance Range...1 K/ 2 K /5 K / 10K oh m s/ Available
Total Resistance Tolerance...± 10 %
Independent Linearity...± 1 % down to ± 0.25 %
Effective Electrical Angle...340 ° ± 3 ° / Available
End Voltage...≤ 0.5 %DC
Output Smoothness...0.1 %
Wiper Current...Recommended: A few μA - 1 mA max. (continuous)
Resistance Load on Wiper...≥ 1000 X RT
Power Rating (Voltage Limited By Power Dissipation or 300 VAC, Whichever is Less)
+70 ° C...1 watt
+125 ° C...0 watt
Insulation Resistance...≥ 1000 MΩ, 500 VDC
Resolution...Essentially infinite
Envi r onmental Characteristics 1
Operating Temperature Range...-40 ° C to +125 ° C
Storage Temperature Range...-65 ° C to +125 ° C
Vibration...30...2000 Hz
Amax = 0.75 mm
Amax = 10 G
Shock...50 g
11 ms
Load Life...1, 000 hours, 1 watt
Total Resistance Shift...± 10 % maximum
Rotational Life (No Load)...30, 000, 000 movements
Total Resistance Shift...± 10 % maximum
IP Rating...IP 40
