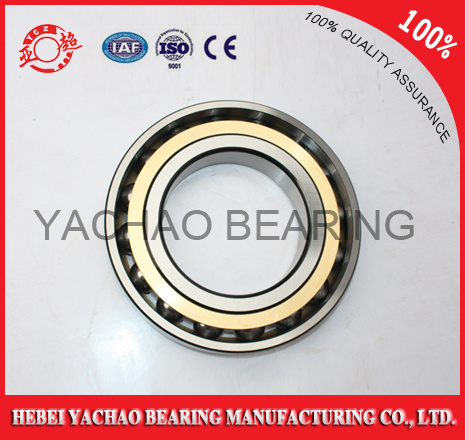

Angular Contact Ball Bearings (7212c, 7212AC, 7212 B)
Angular contact ball bearings can bear radial load and axial load at the same time.Can work under high speed.The larger the contact Angle, the higher the axial bearing capacity.High precision and high speed bearing contact Angle usually take 15 degrees.Under the effect of axial force, the contact Angle increases.
Angular contact ball bearing precision grade includes dimensional tolerance and revolving tolerance.From low to high precision is expressed as P0 (ordinary), P6 (P6X), P5, P4, P2.In addition, in the European and American brands also expressed in P3, P7 and P9 precision grade, P3 level equivalent to ISO and JIS standard P6, P7 is equal to the P4 level, P9 level equal to P2.
| Bearing Model No. | Size | 15º | 25º | Retainer material |
| Limiting speed | Limiting speed |
| d | D | B | Load Rating | grease oil | Load Rating | grease oil |
| Cr Cor | Grease Oil | Cr Cor | Grease Oil |
| 7200 | 10 | 30 | 9 | 6.4 3.8 | 55000 84000 | 6.3 3.7 | 52000 79000 | Bakelite |
| 7201 | 12 | 32 | 10 | 7.2 4.5 | 52000 79000 | 6.9 4.3 | 47000 69000 | Bakelite |
| 7202 | 15 | 35 | 11 | 9.1 5.8 | 47000 69000 | 8.8 5.6 | 42000 62000 | Bakelite |
| 7203 | 17 | 40 | 12 | 11.3 7.4 | 39000 59000 | 10.9 7.1 | 37000 55000 | Bakelite |
| 7204 | 20 | 47 | 14 | 13.1 9.6 | 33000 49000 | 12.6 9.2 | 29000 44000 | Bakelite |
| 7205 | 25 | 52 | 15 | 16.8 13.1 | 29000 44000 | 16.1 12.5 | 25000 39000 | Bakelite |
| 7206 | 30 | 62 | 16 | 23.4 18.8 | 23000 37000 | 22.3 18.0 | 19000 33000 | Bakelite |
| 7207 | 35 | 72 | 17 | 25.8 22.9 | 17000 29000 | 24.5 21.9 | 16000 27000 | Bakelite |
| 7208 | 40 | 80 | 18 | 34.1 30.9 | 16000 27000 | 32.5 29.5 | 14000 23000 | Bakelite |
| 7209 | 45 | 85 | 19 | 35.5 33.8 | 15000 25000 | 33.8 32.3 | 13000 21000 | Bakelite |
| 7210 | 50 | 90 | 20 | 43.3 40.6 | 14000 23000 | 41.3 38.7 | 13000 21000 | Bakelite |
| 7211 | 55 | 100 | 21 | 53.6 51.1 | 13000 21000 | 51.1 48.8 | 12000 19000 | Bakelite |
| 7212 | 60 | 110 | 22 | 55.8 56.2 | 11000 18000 | 53.0 53.5 | 10000 17000 | Bakelite |
| 7213 | 65 | 120 | 23 | 67.5 69.0 | 10000 17000 | 64.2 65.8 | 8500 15000 | Bakelite |
| 7214 | 70 | 125 | 24 | 70.2 74.6 | 9000 16000 | 66.6 71.7 | 8000 14000 | Bakelite |
| 7215 | 75 | 130 | 25 | 72.7 80.2 | 8500 15000 | 68.9 76.3 | 7500 13000 | Bakelite |
| 7216 | 80 | 140 | 26 | 86.5 96.5 | 8000 14000 | 82.1 91.9 | 7000 12000 | Bakelite |
| 7217 | 85 | 150 | 28 | 97.4 107.5 | 7500 13000 | 92.5 102.4 | 6500 11000 | Bakelite |
| 7218 | 90 | 160 | 30 | 121.9 131.3 | 7000 12000 | 115.8 124.6 | 6000 10000 | Bakelite |
| 7219 | 95 | 170 | 32 | 128.9 145.1 | 6500 11000 | 122.5 138.3 | 5700 9000 | Bakelite |
| 7220 | 100 | 180 | 34 | 146.2 165.9 | 6000 10000 | 138.9 158.2 | 5700 9000 | Bakelite |
| 7221 | 105 | 190 | 36 | 164.3 118.2 | 6000 10000 | 156.3 179.5 | 5300 8500 | Bakelite |
| 7222 | 110 | 200 | 38 | 170.4 202.5 | 5700 9000 | 161.8 193.0 | 5000 8000 | Bakelite |
| 7224 | 120 | 215 | 40 | 175.4 218.4 | 5000 8000 | 166.3 207.9 | 4300 7000 | Bakelite |
| 7226 | 130 | 230 | 40 | 200.6 258.3 | 4600 7500 | 190.4 246.2 | 4000 6500 | Bakelite |
| 7228 | 140 | 250 | 42 | 223.6 306.6 | 4000 6500 | 212.3 292.2 | 3500 5700 | Bakelite |
| 7230 | 150 | 270 | 45 | 240.9 341.5 | 3500 5700 | 228.7 325.5 | 3000 5000 | Bakelite |
| 7232 | 160 | 290 | 48 | 248.6 365.8 | 3300 5300 | 236.1 348.6 | 2800 4600 | Bakelite |
| 7234 | 170 | 310 | 52 | 300.2 459.2 | 2800 4600 | 285.0 473.6 | 2600 4300 | Bakelite |
| 7236 | 180 | 320 | 52 | 300.2 459.2 | 2800 4600 | 285.0 473.6 | 2600 4300 | Bakelite |
| Brand Name | YCZ or famous brand or according to your requirement |
| Clearance | C2 C0 C3 C4 C5 |
| Tolerance | ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2) |
| Vibration | Z1V1 Z2V2 Z3V3 Z4V4 |
| Material | carbon steel, chrome, stainless steel, plastic, ceramic |
| Sample Date | 3-5 days |
| Delivery Detail | 2-15 days after contract |
| Shipping | Express: DHL/EMS/By Sea |
| Advantage | 1).Excellent and high quality control |
| 2).Prompt delivery |
| 3).Competitive price |
| 4).Small order accepted |
| 5).Customers' drawing or samples accepted |
| 6).OEM service |
| Payment Term: | A: 30% T/T In Advance, 70% T/T Against Copy Of B/L |
| B: 100% L/C At Sight |
| Packing: |
|
| Industrial package or according to buyers requirement |
Hebei Yachao Bearing Manufacture Co., Ltd is located in the industrial park of trading business Guantao country in Handan city, this company mainly conducts the manufacturing and import and export of bearings. Covering an area of 12 hectare, this company has 360 staff, among which there are 40 technicians, 20 senior executives. Boasting over 100 sets of full-automatic professional equipment, this company can produce small and medium size bearings by approximately ten million sets with the annual value of production by 120 million RMB. The company has already passed the ISO9001: 2008 international quality management system certification. The "YCZ" brand product produced by this company is rewarded as: "Famous Trademark of Hebei Province", "Famous-brand Products of Hebei Province" and "Quality Goods of Hebei Province".
Its products are widely used on agricultural machinery, agricultural machinery, mining machinery, automobile and electrical machinery, machine tool equipment with marketing network covering all over the country and being exported to Vietnam UAE USA Canada and a lot of western European countries. Over the decade since the establishment of this company, it preserves in " honesty is the basis and operate legally", putting the quality as the priority as always, which makes the brand of "YCZ" be risen rapidly. We look forward to achieve a win-win result with you through our quality products and sincere services.
