Product Specifications
| Prod Model: |
QJ304-QJ318 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bearing: |
Angular Contact Ball Bearings |
| Brand: |
Ycz |
| Tolerance: |
Abec1(P0) Abec3(P6) Abec5(P5) Abec7(P4) Abec9(P) |
| Delivery Detail: |
2-15 Days After Contract |
| Size: |
40*90*23mm |
| Rolling Body: |
Ball Bearings |
| Material: |
Bearing Steel |
| Load Direction: |
Thrust Bearing |
| Separated: |
Unseparated |
Product Description

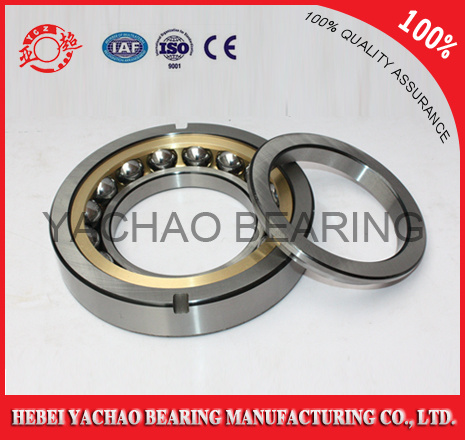

Angular Contact Ball Bearings (Qj308)
Angular contact ball bearings can bear radial load and axial load at the same time.Can work under high speed.The larger the contact Angle, the higher the axial bearing capacity.High precision and high speed bearing contact Angle usually take 15 degrees.Under the effect of axial force, the contact Angle increases.
Angular contact ball bearing precision grade includes dimensional tolerance and revolving tolerance.From low to high precision is expressed as P0 (ordinary), P6 (P6X), P5, P4, P2.In addition, in the European and American brands also expressed in P3, P7 and P9 precision grade, P3 level equivalent to ISO and JIS standard P6, P7 is equal to the P4 level, P9 level equal to P2.
| ANGULAR CONTACT BALL BEARINGS WITH SPLIT INNER RACE |
| Bearing NO. | Dimensions (Metric) | Approx. | Interchange |
| d | D | B | Wgt. lbs |
| HOFF | MRC | SKF | STEYR |
| QJ-303 | 17 | 47 | 14 | 0.3 | - | - | 9303-U | QJ 303 | QJ 303 |
| QJ-304 | 20 | 52 | 15 | 0.43 | QJ 304 | 320-CDS | 9304-U | QJ 304 | QJ 304 |
| QJ-305 | 25 | 62 | 17 | 0.65 | QJ 305 | 325-CDS | 9305-U | QJ 305 | QJ 305 |
| QJ-306 | 30 | 72 | 19 | 0.93 | QJ 306 | 330-CDS | 9306-U | QJ 306 | QJ 306 |
| QJ-307 | 35 | 80 | 21 | 1.26 | QJ 307 | 335-CDS | 9307-U | QJ 307 | QJ 307 |
| QJ-308 | 40 | 90 | 23 | 1.72 | QJ 308 | 340-CDS | 9308-U | QJ 308 | QJ 308 |
| QJ-309 | 45 | 100 | 25 | 2.29 | QJ 309 | 345-CDS | 9309-U | QJ 309 | QJ 309 |
| QJ-310 | 50 | 110 | 27 | 3.02 | QJ 310 | 350-CDS | 9310-U | QJ 310 | QJ 310 |
| QJ-311 | 55 | 120 | 29 | 3.84 | QJ 311 | 355-CDS | 9311-U | QJ 311 | QJ 311 |
| QJ-312 | 60 | 130 | 31 | 4.72 | QJ 312 | 360-CDS | 9312-U | QJ 312 | QJ 312 |
| QJ-313 | 65 | 140 | 33 | 5.98 | QJ 313 | 365-CDS | 9313-U | QJ 313 | QJ 313 |
| QJ-314 | 70 | 150 | 35 | 6.97 | QJ 314 | 370-CDS | 9314-U | QJ 314 | QJ 314 |
| QJ-315 | 75 | 160 | 37 | 8.56 | QJ 315 | 375-CDS | 9315-U | QJ 315 | QJ 315 |
| QJ-316 | 80 | 170 | 39 | 10.1 | QJ 316 | 380-CDS | 9316-U | QJ 316 | QJ 316 |
| QJ-317 | 85 | 180 | 41 | 12.1 | QJ 317 | 385-CDS | 9317-U | QJ 317 | QJ 317 |
| QJ-318 | 90 | 190 | 43 | 14.2 | QJ 318 | 390-CDS | 9318-U | QJ 318 | QJ 318 |
| QJ-319 | 95 | 200 | 45 | 16.4 | QJ 319 | 395-CDS | 9319-U | QJ 319 | QJ 319 |
| QJ-320 | 100 | 215 | 47 | 20.5 | QJ 320 | 400-CDS | 9320-U | QJ 320 | QJ 320 |
| QJ-321 | 105 | 225 | 49 | 22.7 | QJ 321 | 405-CDS | 9321-U | QJ 321 | - |
| QJ-322 | 110 | 240 | 50 | 27.6 | QJ 322 | 410-CDS | 9322-U | QJ 322 | - |
| QJ-324 | 120 | 260 | 55 | 35.3 | QJ 324 | 420-CDS | - | QJ 324 | - |
| QJ-326 | 130 | 280 | 58 | 43.4 | QJ 326 | 430-CDS | - | QJ 326 | - |
| QJ-328 | 140 | 300 | 62 | 52.8 | QJ 328 | 440-CDS | - | QJ 328 | - |
| QJ-330 | 150 | 320 | 65 | 64.2 | QJ 330 | 450-CDS | - | QJ 330 | - |
| QJ-332 | 160 | 340 | 68 | 68.13 | QJ 332 | - | - | - | - |
| QJ-334 | 170 | 360 | 72 | 78 | QJ 334 | - | - | QJ 334 | - |
| QJ-336 | 180 | 380 | 75 | 91 | QJ 336 | - | - | QJ 336 | - |
| QJ-338 | 190 | 400 | 78 | 108.24 | QJ 338 | - | - | QJ 338 | - |
| QJ-340 | 200 | 420 | 80 | 121.91 | - | - | - | QJ 340 | - |
| QJ-342 | 210 | 440 | 84 | 141 | - | - | - | - | - |
| QJ-344 | 220 | 460 | 88 | 160.27 | QJ 344 | - | - | QJ 344 | - |
| QJ-348 | 240 | 500 | 95 | 198 | QJ 348 | - | - | - | - |
| QJ-352 | 260 | 540 | 102 | 255.75 | - | - | - | - | - |
| QJ-356 | 280 | 580 | 108 | 313 | - | - | - | - | - |
| Brand Name | YCZ or famous brand or according to your requirement |
| Clearance | C2 C0 C3 C4 C5 |
| Tolerance | ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2) |
| Vibration | Z1V1 Z2V2 Z3V3 Z4V4 |
| Material | carbon steel, chrome, stainless steel, plastic, ceramic |
| Sample Date | 3-5 days |
| Delivery Detail | 2-15 days after contract |
| Shipping | Express: DHL/EMS/By Sea |
| Advantage | 1).Excellent and high quality control |
| 2).Prompt delivery |
| 3).Competitive price |
| 4).Small order accepted |
| 5).Customers' drawing or samples accepted |
| 6).OEM service |
| Payment Term: | A: 30% T/T In Advance, 70% T/T Against Copy Of B/L |
| B: 100% L/C At Sight |
| Packing: |
|
| Industrial package or according to buyers requirement |
Hebei Yachao Bearing Manufacture Co., Ltd is located in the industrial park of trading business Guantao country in Handan city, this company mainly conducts the manufacturing and import and export of bearings. Covering an area of 12 hectare, this company has 360 staff, among which there are 40 technicians, 20 senior executives. Boasting over 100 sets of full-automatic professional equipment, this company can produce small and medium size bearings by approximately ten million sets with the annual value of production by 120 million RMB. The company has already passed the ISO9001: 2008 international quality management system certification. The "YCZ" brand product produced by this company is rewarded as: "Famous Trademark of Hebei Province", "Famous-brand Products of Hebei Province" and "Quality Goods of Hebei Province".
Its products are widely used on agricultural machinery, agricultural machinery, mining machinery, automobile and electrical machinery, machine tool equipment with marketing network covering all over the country and being exported to Vietnam UAE USA Canada and a lot of western European countries. Over the decade since the establishment of this company, it preserves in " honesty is the basis and operate legally", putting the quality as the priority as always, which makes the brand of "YCZ" be risen rapidly. We look forward to achieve a win-win result with you through our quality products and sincere services.
