Product Specifications
| Prod Model: |

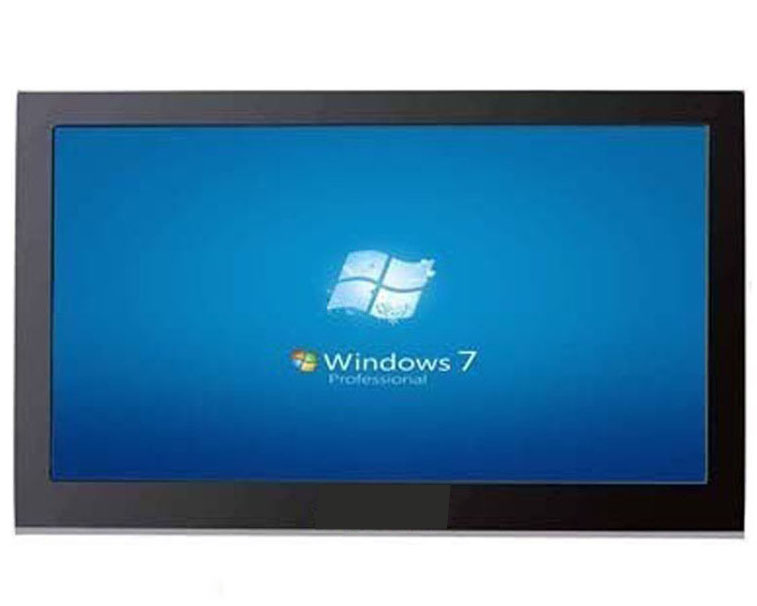

LIQI-6510B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Touch screen(standard) 17 inch surface acoustic wave screen(SAW, Resistance touch screen optional)
Use the most advanced surface acoustic wave screen with the resolution of 4096*4096 and light Transmittance 98% above; The touch Force is less than 85g; Response time is less than 5ms; Calibrate one time, never excursion; Mao`s hardness test is 7-grade; Single-point touch for 50 million times; The response is rapid and the utility time is durable. Agency Approval is CE, FCC, CCC.
Display 17 inch Samsung LCD panel(AU, LG, Samsung LCD optional)
Use 17 inch LCD panel; Resolution: 1280*1024; Field frequency: 60-75Hz; Pixel pitch: 0.264mm; Brightness: 280CD/m; Contrast Ratio: 1000: 1; Response time: 5ms; View angle: 160° /160° (horizontal/vertical); Active area: 338mm*270mm.
PC configuration Standard industrial mainboard: 2*PS2 Ports; 1*COM Port; 1*LAN; 1*LPT; 1*VGA; 4*USB2.0 Ports; 1* Audio Input Port; 1*Audio Output Port; Integrated sound card, integrated network card; Dual graphics card; Intel® Atom TM CPU, 1.6GHz; Huntkey 150W; Hard disk Hitachi 320G; RAM Kingston DDR2, 1GB.
Operating System Windows95/98/2000/NT/XP/LINUX/Win7, etc.
Working Environment temperature +0-+40, relative humidity 10%-90% (relative, non-compression)
Storage temperature -10-50
Power Supply Input: 110-240V\50-60Hz; Output: 12.0V_4.16A
Physical size 406mm*338mm*70mm
Packing size 480mm*415mm*160mm
Total weight 6.5kg
Agency Approval CCC, CE, CB
Since 1999, LiQi Kiosk has LED the industry in design and manufacturing of self-service kiosks. Who is the largest professional kiosk Manufacturer in South of China.
The team is a "cradle to grave" service organization that takes full ownership in the success of customer programs- from initial solution design to manufacturing and field services.
LiQi has partnered with clients in a full complement of vertical markets, transforming self-service concepts to deployed solutions. Projects range from traditional applications like retail, order entry, and human resources to highly specialized solutions in banking, healthcare, airport security, and outdoor ticketing.
with 100, 000+ kiosks deployed across this broad market spectrum, LiQi abilities in customized design, sophisticated peripheral integration, volume manufacturing, and field services have been exercised far deeper than any industry competitor.
LiQi has consistently proven the ability to execute at every stage of the program life cycle. Much lower volume clients (1-20 units) enjoy equal attention and responsiveness.
LiQi has established OEM supplier contracts and partnerships with our customers
This diverse customer base provides unusually high levels of industry and financial stability, ensuring a long-range partnership with a uniquely qualified solution provider.
All this experience boils down to one thing -LiQi's ability to simplify your long-term success
