Product Specifications
| Prod Model: |
APMON |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

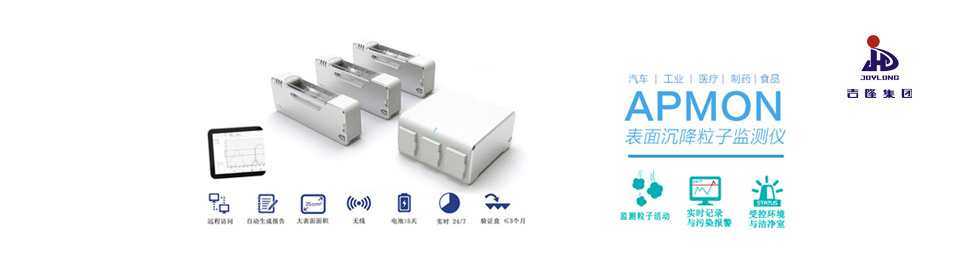

The APMON system consists of a sensor, base unit and a graphical user interface, which can be installed on every computer.
Every 10 minutes both particle size and increase in number are scanned on a measurement surface of 60cm2. The base unit analyses the results to determine if alarm thresholds are exceeded.
Using a compact design, the APMON sensor can be placed near critical production areas, to provide early insight in (possible) contamination sources which can result in a quick response.
Detectable Particle Sizes | 25 μm - 1500 μm |
| Sample Times | 5 minutes (longer interval possible) |
| Size | 390 x 80 x 150 mm (15.4 x 3.1 x 5.9 inches) |
| Weight | Approximately 5kg (incl. battery) |
| Power | Dual 110-230VAC 50/60Hz, adapter or battery 5VA |
| Battery Type | Lithium Ion Smart Battery, rechargeable inside Counting Unit |
| Battery Quantity | Included Two per sensor |
| Battery Operating Time | 2-3 weeks |
| Communication Counting Unit | Bluetooth 2.0 800m free field or Ethernet |
| Optical Light Source | Laser Diode 406nm @ 5 mW |
| Method | Holographical Imaging |
| Laser Safety Classification | 1m according to IEC 60825-1 |
| Calibration | Automatic Internal Optical Calibration |
| Base Unit collects and analyses data and charges batteries |
| Size | 250mm x 250mm x 150mm |
| Weight | 4kg (with batteries recharging: 5kg) |
| Coincidence Loss | 1% |
| Data storage | 10,000 samples per Counting Unit |
| Power | 110-230VAC adapter 150 VA |
| Cooling | Passive |
| Outputs | Ethernet cable UTP / RJ45 |
| Battery Recharge | 3 batteries per Counting Unit at the same time |
| Battery Recharge Time | 10 hours maximum |
| Technical Specifications APMON |
| User Interface v 1.0 |
| Tailor Made | Adjustable for every situation and requirements |
| Number of Size Channels | Flexible with a maximum of ten |
| Communication | Automatic report when PC receives data |
| Use of ethernet: approach from distance possible |
| Communication Protocol | Modbus TCP |
| Backup | Local Company Server |
| Languages | English, German, Dutch (tailor made possible) |
| System Requirements | Windows XP or Windows 7 |
| Reports | Alarm date/time, exceeding standard |
| Particle size and count over time |
| General |
| Models | Industrial (standard: 3 Sensors per Counting Unit) |
| Medical (standard: 3 Sensors per Counting Unit) |
| Environment (Operating) | 10 to 40 degrees Celsius (50 to 104 degrees Fahrenheit) |
| 10 to 90% relative humidity, non-condensing |
| Enclosure Material Easy to clean: | Aluminium and plastics (80% ethanol cleaning possible) |
| Cartridge | Disposable dust-cartridge lasting 2-3 weeks, self-calibrating, |
| Patent Pending |
| Cartridge Material | PMMA |
| Packaging | Free of dust, cartridges are sterile |
| In the box 1 Sensor, 2 rechargeable batteries, Base Unit, 3 Cartridges, |
| Software, documentation |
