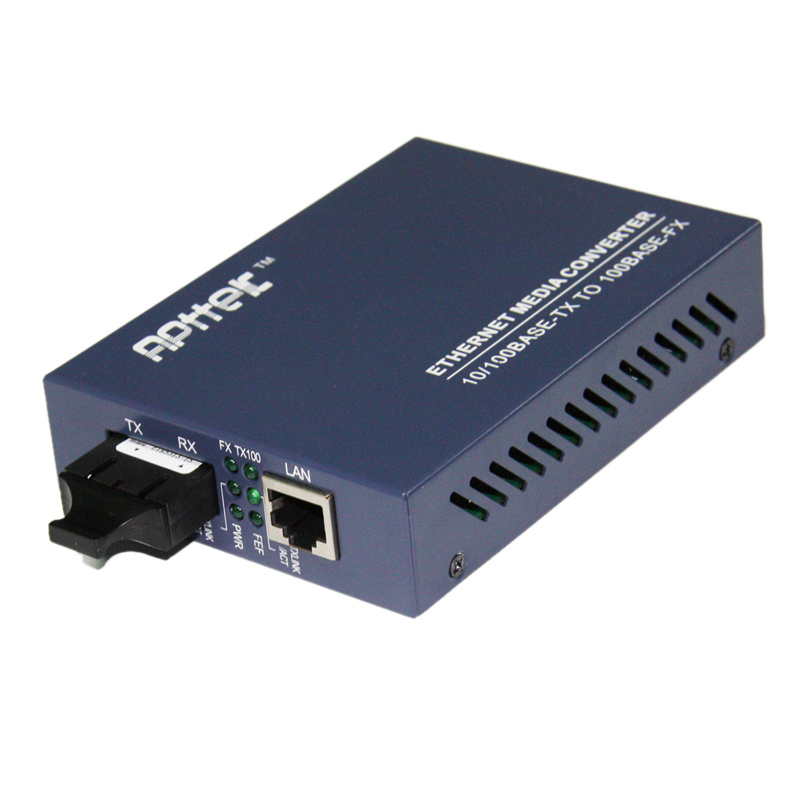

Product Specifications
| Prod Model: |
APT-103S512OC-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. According with IEEE802.3, IEEE802.3u, 10/100Base-TX, 100Base-FX Fast Ethernet, IEEE802.3x Flow control standard.
2. Interface: SC/ST (50/125um, 62.5/125um multimode) SC/FC(9/125um singlemode)
3. Modular configuration design(can be centralize in chassis).
4. 50/125um and 62.5/125um multimode fiber link transmission distance up to 2km.
5. 9/125um singlemode fiber link transmission distance up to 120km.
6. Support storage transmission and direct connection mode.
7. Built-in 288KB buffer, storage transmission support 2046Bytes, direct connection mode. Support unlimited package.
8. Support full-duplex/half-duplex working mode.
9. Port support Auto-MDI/MDIX Auto Flip
10. LED indicator dynamix feedback link signal, fault monitoring.
11. Support hot-swappable, plug and play.
12. Support LFP function, automatically detect the link, fored ethernet link interruption when detected in each of interface disconnected.
13. Built-in lightning circuit, significantly reduce the damage caused by thunderbolt induction.
14. Wavelengh: 1310nm/1490nm/1550nm
15. Transmission distance: Multimode 0.55km/2km singlemode 20km/40km/60km/80km/100km/120km.
16. Conversion mode: Media conversion, strorage transmission/direct connection.
17. MAC address: 1K
18. Buffer: 288KB
19. Error rate: <1/1000000000
20. LED indicator: POWER, TX Link/ACT(Twisted-pair link), FDX(ethernet full-duplex), FX Link/Act(fiber link), FX100(fiber 100M transmit speed), TX100(Twisted-pair 100M transmit speed).
21. Power supply: DC5V 1A(external power supply); AC220V 0.5A(built-in power supply).
22. Power Consumption: <0.25W.
23. Operating temperature: 0~50degree
24. Storage temperature: -40~70degree
25. Humidity: 5%~90%(no condensation
26. Size: 118mm*86mm*27mm(L*W*H)(External power supply)
Connect type: SC
Fiber type: Singlemode
Wavelengh: 1550nm
Typical distance: 120KM
Min TX PWR: -5.0dBm
Max TX PWR: 0.0dbm
Sensitivity: <-38dbm
Link budget: 42.0dbm
