Armoured Double Shiled Computer Cable
| Price: |
US $ 2.55/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |

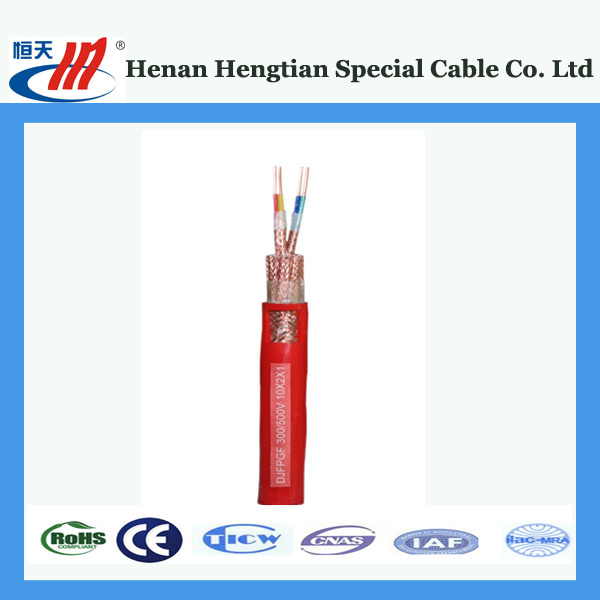

Armoured Double Shiled Computer Cable
It applies to electrical power transmission and distribution lines with A. C. Rated
Voltage U0/U up to and including 450/750V.
shielded twist pairs control cable:
1 UO/U: 450/750V
2 Standard applied: IEC60227, BS6500, VDE0250, GB/T9330
3 Max working temperature: 70C
4 Conductor: Annealed bare copper solid or strands
5 Insulation: PVC
6 Cores: Twisted Pair 1~16 pairs
7 Cross section areas: 0.750mm2~1.5 mm2
8 Armore: Steel wire or steel tape armored
9 Color: Red, blue, white for active core, green/yellow for earth core, black for sheath.
10 Certificate: : CCC
11 Roll package Wooden drum or as requested
12 Remark: The cable can be of flame retardance, fire resisrance and other property
13 OEM can be available14.Armoured Double Shiled Computer Cable specifications| Type in China | specification | pairs Number | Conductor strands | individual strands wire diameter-mm | weight kg/km | wire Dia.mm |
| DJYPVPR22 | 0.75*2C | 1pairs | 42 | 0.14 | 60 | 9.7 |
| DJYPVPR22 | 0.75*2C | 2pairs | 42 | 0.14 | 217 | 15.7 |
| DJYPVPR22 | 0.75*2C | 3pairs | 42 | 0.14 | 250 | 16.5 |
| DJYPVPR22 | 0.75*2C | 4pairs | 42 | 0.14 | 292 | 17.8 |
| DJYPVPR22 | 0.75*2C | 5pairs | 42 | 0.14 | 337 | 19.3 |
| DJYPVPR22 | 0.75*2C | 6pairs | 42 | 0.14 | 383 | 20.9 |
| DJYPVPR22 | 0.75*2C | 7pairs | 42 | 0.14 | 404 | 20.9 |
| DJYPVPR22 | 0.75*2C | 8pairs | 42 | 0.14 | 511 | 23.6 |
| DJYPVPR22 | 0.75*2C | 9pairs | 42 | 0.14 | 547 | 24.2 |
| DJYPVPR22 | 0.75*2C | 10pairs | 42 | 0.14 | 614 | 26 |
| DJYPVPR22 | 0.75*2C | 11pairs | 42 | 0.14 | 710 | 28.8 |
| DJYPVPR22 | 0.75*2C | 12pairs | 42 | 0.14 | 732 | 28.8 |
| DJYPVPR22 | 0.75*2C | 13pairs | 42 | 0.14 | 798 | 30.4 |
| DJYPVPR22 | 0.75*2C | 14pairs | 42 | 0.14 | 820 | 30.4 |
| DJYPVPR22 | 0.75*2C | 15pairs | 42 | 0.14 | 893 | 32.1 |
| DJYPVPR22 | 0.75*2C | 16pairs | 42 | 0.14 | 915 | 32.1 |
|
|
|
|
|
|
|
| DJYPVPR22 | 1.0*2C | 1pairs | 32 | 0.19 | 67 | 9.9 |
| DJYPVPR22 | 1.0*2C | 2pairs | 32 | 0.19 | 235 | 16.1 |
| DJYPVPR22 | 1.0*2C | 3pairs | 32 | 0.19 | 275 | 16.9 |
| DJYPVPR22 | 1.0*2C | 4pairs | 32 | 0.19 | 324 | 18.3 |
| DJYPVPR22 | 1.0*2C | 5pairs | 32 | 0.19 | 375 | 19.9 |
| DJYPVPR22 | 1.0*2C | 6pairs | 32 | 0.19 | 429 | 21.5 |
| DJYPVPR22 | 1.0*2C | 7pairs | 32 | 0.19 | 456 | 21.5 |
| DJYPVPR22 | 1.0*2C | 8pairs | 32 | 0.19 | 578 | 24.4 |
| DJYPVPR22 | 1.0*2C | 9pairs | 32 | 0.19 | 622 | 25 |
| DJYPVPR22 | 1.0*2C | 10pairs | 32 | 0.19 | 698 | 26.9 |
| DJYPVPR22 | 1.0*2C | 11pairs | 32 | 0.19 | 805 | 29.8 |
| DJYPVPR22 | 1.0*2C | 12pairs | 32 | 0.19 | 832 | 29.8 |
| DJYPVPR22 | 1.0*2C | 13pairs | 32 | 0.19 | 908 | 31.4 |
| DJYPVPR22 | 1.0*2C | 14pairs | 32 | 0.19 | 936 | 31.4 |
| DJYPVPR22 | 1.0*2C | 15pairs | 32 | 0.19 | 1019 | 33.2 |
| DJYPVPR22 | 1.0*2C | 16pairs | 32 | 0.19 | 1046 | 33.2 |
|
|
|
|
|
|
|
| DJYPVPR22 | 1.5*2C | 1pairs | 48 | 0.19 | 87 | 10.8 |
| DJYPVPR22 | 1.5*2C | 2pairs | 48 | 0.19 | 289 | 18 |
| DJYPVPR22 | 1.5*2C | 3pairs | 48 | 0.19 | 345 | 18.9 |
| DJYPVPR22 | 1.5*2C | 4pairs | 48 | 0.19 | 411 | 20.6 |
| DJYPVPR22 | 1.5*2C | 5pairs | 48 | 0.19 | 481 | 22.4 |
| DJYPVPR22 | 1.5*2C | 6pairs | 48 | 0.19 | 552 | 24.4 |
| DJYPVPR22 | 1.5*2C | 7pairs | 48 | 0.19 | 593 | 24.4 |
| DJYPVPR22 | 1.5*2C | 8pairs | 48 | 0.19 | 776 | 28 |
| DJYPVPR22 | 1.5*2C | 9pairs | 48 | 0.19 | 837 | 28.7 |
| DJYPVPR22 | 1.5*2C | 10pairs | 48 | 0.19 | 942 | 31 |
| DJYPVPR22 | 1.5*2C | 11pairs | 48 | 0.19 | 1086 | 34.3 |
| DJYPVPR22 | 1.5*2C | 12pairs | 48 | 0.19 | 1127 | 34.3 |
| DJYPVPR22 | 1.5*2C | 13pairs | 48 | 0.19 | 1231 | 36.3 |
| DJYPVPR22 | 1.5*2C | 14pairs | 48 | 0.19 | 1272 | 36.3 |
| DJYPVPR22 | 1.5*2C | 15pairs | 48 | 0.19 | 1386 | 38.4 |
| DJYPVPR22 | 1.5*2C | 16pairs | 48 | 0.19 | 1426 | 38.4 |
For more details, pls come to vist us! ! !
| Prod Model: |
DJYPVP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
RoHS |
| Model: |
Rvvsp |
| Brand: |
Hengtian |
Founded in 2001 in Zhengzhou, Henan Hengtian Special Cable Co., Ltd. is one of the leading manufacturers of LV & MV special cables in China. Our company integrates research, development, service and trade, covering a total area of 300, 000 square meters, with the registered capital of 150 million Yuan.
Henan Hengtian Special Cable Co., Ltd. always insists on independent research and development and takes "top quality, brand, service and reputation" as our tenet. We are continuously increasing our production capacity and export sales volume. We utilize the latest technologies, in response to the growing demands of customers through the R&D of our product lines.
In recent years, our company has contributed a large number of special cables to the industry, with more than 12 categories, 14 varieties, 60 series and 3, 500 specifications. These include PVC insulated wires, power cables, control cables, computer cables, aerial bundled cables, coaxial cables, telecom cables, rubber cables, mining cables, fire-resistant cables, corrosion-resistant cables, halogen-free and flame-retardant cables and other related products.

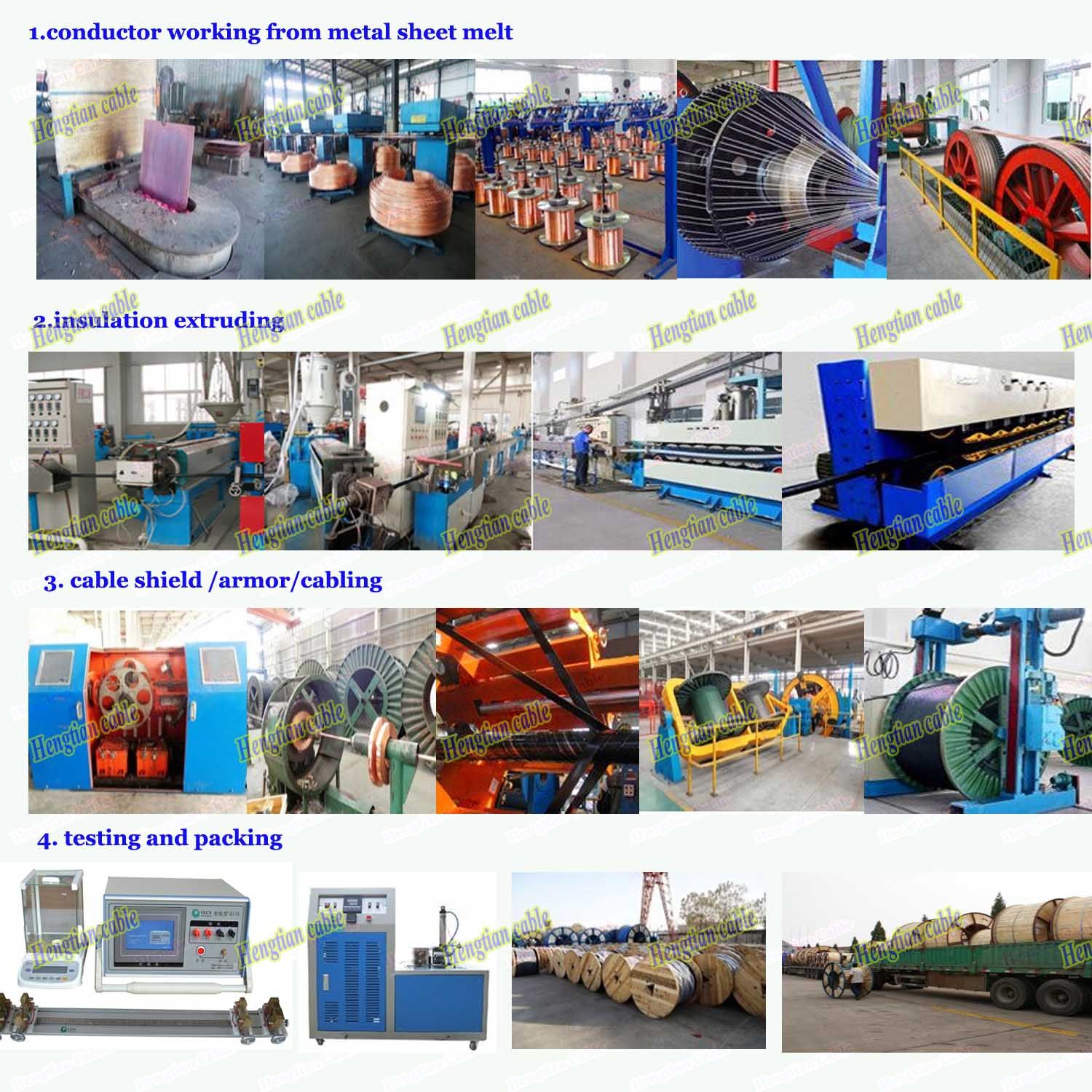

Our company performs all quality operation and production with 500 skilled and expert workers operating under ISO9001 and ISO14001 international quality system standards approved by China Quality Certification Center. The quality of our products is the result of continuously updated machinery and test devices and a comprehensive supervisory computer system which covers all stages of processing from purchase order to delivery
We sincerely welcome all customers from at home and abroad to work together with us and enjoy a splendid future.
