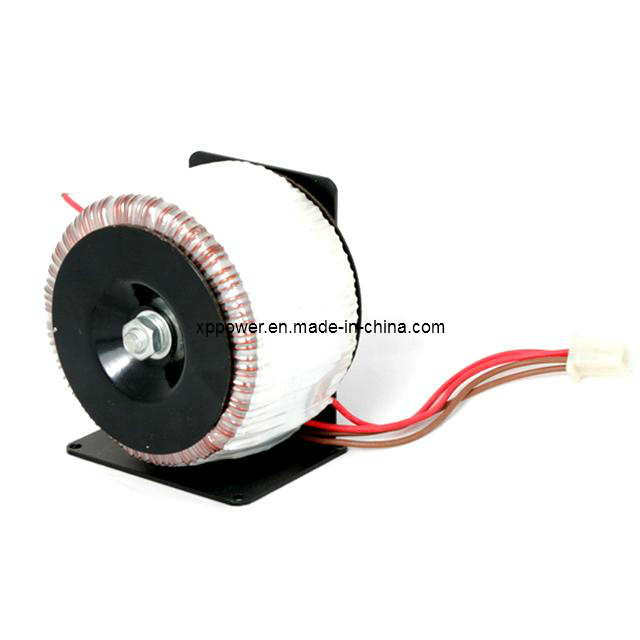

XPPOWER offers a variety of Audio application toroidal transformer for specific needs. All are constructed to meet low mechanical noise and low stray field noise. Products are low temperature, high efficiency, small size, light weight, easy mounting and high reliability.
Key Specifications/Special Features:
-High frequency, >95%
-Low no-load losses
-Low profile and low weight
-Low temperature rise
-Reasonable price
-Cost-effective
-Easy to mount
-Input/output: Customized
-Power range: 30VA— 4000VA
-Insulation Class: UL class B, F, H, N (Optional)
-Adjustable dimension
-Twin primaries/secondary
-Optional material: Copper, Aluminum, Aluminum Clad Copper
-Low magnetic stray field levels
-Easy to change the length, width and height of the core, customized specifications are welcome
-The certificate of our transformer has CE, CQC, RoHs and UL
Reasons of our top-quality components help your business succeed:
-22 years of experience customizing and power transformers
-Your professional and reliable partner for various electronics
- Over 1000 buyers value our products
-20000m2 factory with 21 production lines and 800 employees
- 5 million units annual capacity
Browse our online showroom, and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
Power
(VA) |
Outside Dimension
(mm) |
Temp.Rise
( ° C ) |
Weight
(Kg) |
Approval |
|
50 |
80*37 |
45 |
0.71 |
UL/CE/RoHS/CQC |
|
100 |
95*45 |
51 |
1.24 |
UL/CE/RoHS/CQC |
|
200 |
112*52 |
52 |
2.04 |
UL/CE/RoHS/CQC |
|
250 |
118*53 |
53 |
3.36 |
UL/CE/RoHS/CQC |
|
500 |
140*65 |
55 |
4.20 |
UL/CE/RoHS/CQC |
|
1000 |
170*75 |
58 |
7.20 |
UL/CE/RoHS/CQC |
|
1500 |
180*85 |
60 |
9.75 |
UL/CE/RoHS/CQC |
|
2000 |
185*105 |
62 |
12.00 |
UL/CE/RoHS/CQC |
|
3000 |
200*120 |
64 |
16.60 |
UL/CE/RoHS/CQC |
|
5000 |
230*135 |
65 |
24.00 |
UL/CE/RoHS/CQC |
XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world' S leading developers and manufacturers of power transformers, switching power supplies, power inductors, choke coils, high frequency transformers and filters solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in New energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' Development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 10 million and six hundred employees and three factories located inNingbo, HefeiandXi' An. The company has an annual production capacity of six million PCS. Our main market is Europe, North & South America, Middle East and Asia.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' Needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality.
XP Power supplies its products to 30 countries across the globe. Every year, over 3 million coils are wound, over 2 million high frequency transformers are Manufactured, and thousands of modules are mounted.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' Needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.
