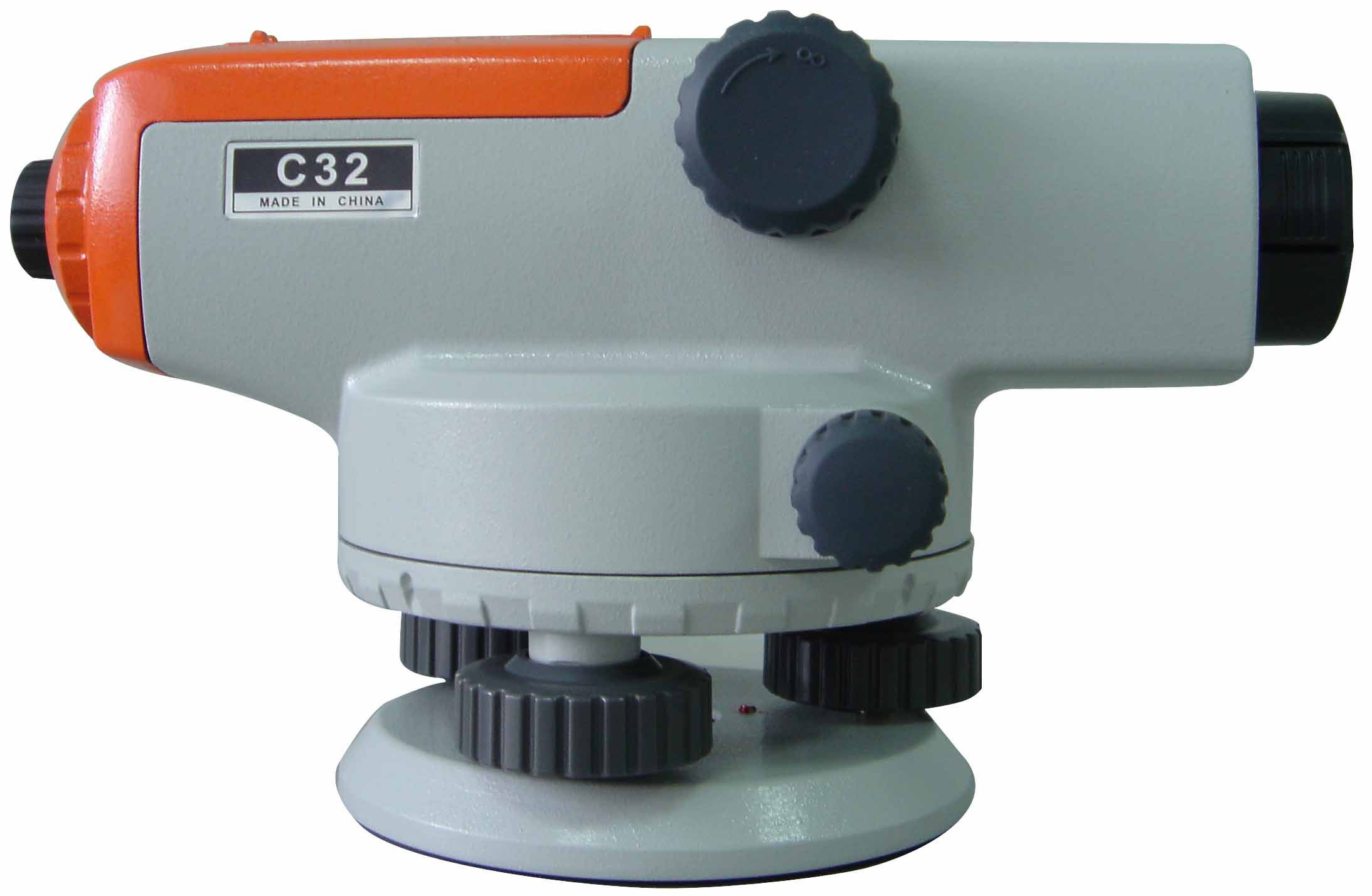

C32 auto level is designed by the technicians who have worked for Sokkia company.
1. Magnification: 24times
2. Resolving power: 4"
3. Leveling accuracy: ± 2.0mm/km
Model |
Sokiaa |
B32 |
B30 |
B20 |
Telescope |
Objective aperture |
32mm(1.26 in) |
36mm(1.42 in) |
42mm(1.65 in) |
Magnification |
24 × |
28 × |
32 × |
Image |
Erect |
Field of view |
1°25' |
1°20' |
Resolving power |
4 .0" |
3 .5" |
3.0" |
Shortest focus |
0.3m (1.0 ft) |
Stadia multiplication constant |
100 |
Stadia additive constant |
0 |
Coarse sighting |
without |
with |
with |
Compensator |
Damping system |
magnetic |
Working range |
±15' |
Setting accurancy |
0.5 " |
0.3" |
Leveling accurancy |
2.0mm |
1.5mm |
1.0mm |
Horizontal circle |
Diameter |
103mm(4.1in) |
Graduation/estimation |
1°(1 gon)/ 0.1°((0.1 gon) |
Sensitivity of circular level |
8'/2mm |
Horizontal fine motion screw |
Double-sided endless drive |
General |
Water resistance |
IP66 |
Base |
Concave and flat |
Base screw |
5/8in |
Size(W*D*H) |
215mm*130mm*135mm |
Weight |
1.75kg |
Case |
1.38kg |
Our company named Nanjing Longteng Survey Instrument Co., Ltd., as the exclusive agent of FOIF and Sokkia in JiangSu province for survey instruments, we can give you the best price and best service. We supply you with auto level, theodolite, total station, 3D scanner, rotary laser, tripod, prism, prism pole and so on. At the basis of Foif total station, we can accept OEM.
