Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
150kg~500kg |
| Automatic Grade: |
Automatic |
Product Description

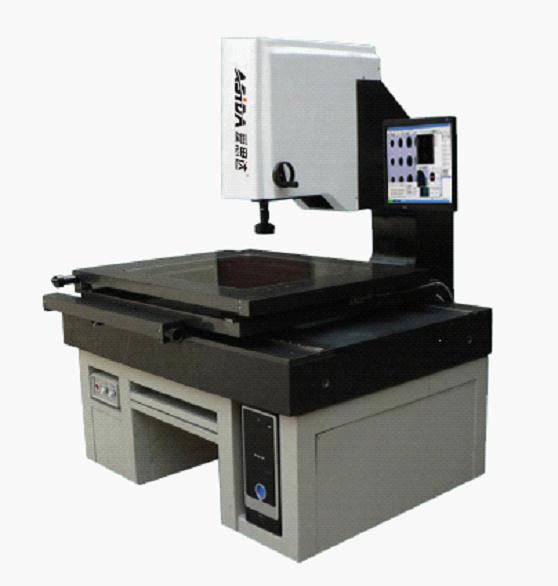

Video Measuring Instrument
1 USAGE
Applicable to two-dimensional measuring instruments mainly include points, lines, circles, rectangles and other geometric elements and zeropieces of length, angle, contour, shape, surface shape, increasing three-dimensional measuring probe can be realizde.
2 CHARACTERISTIC
1. Used of natural granite base and column sitting, strong stability, high hardmess. Not easy to deformation; Piece length, angle, contour, shape, surface shape, increasing three -dimensional measuring probe can realized;
2. High-precision rolling guide, to improve machine stability, work long hours to maintain accuracy;
3. Table using the toothless rod ang friction drive;
4. Ring LED cold light source, long life, will not produce thermal deformation measurement;
5. Optical system quality, bright and clear images, image reduction is good;
6. Three -axis servo motor drive with Panasonic.
Item
|
Automatic 4030 |
Automatic 5040 |
EC11~4030 |
EC11~5040 |
|
Measuring range(X. Y. Z) |
400× 300× 200mm |
500× 400× 200mm |
400× 300× 200mm |
500× 400× 200mm |
|
Stage size |
360× 260mm |
360× 260mm |
460× 360mm |
560× 460mm |
|
Load bearing |
30KG |
25KG |
|
Objective distance |
90mm |
|
Objective Magnification |
0.75X_5X |
0.65X_4.5X |
Ocular magnification
|
1X |
|
Gross Magnification |
25X_225X(19 Screen) |
|
Base and stand material |
Natural granite |
|
Grating resolution |
0.001mm |
|
X\Y Linear Accuracy |
≤ (3+L/200)um |
|
Repeat accuracy |
≤ ± 0.003mm |
|
Size(mm) |
710× 930× 1000 |
1000× 1100× 1180 |
1100× 970× 720 |
1000× 1200× 1300 |
|
Total weight |
150KG~500KG
|
|
Software |
ASIDA VMA3.00.01Solfware(CHS, CHT, English) |
|
Data output format |
DXF\EXCEL\WORD |
|
Operating system |
WindowsXP Pro |
PC requirement
|
CPU Dual Core, ≥ 2G Memory, ≥ 320G Hard disk |
Power supply
|
220 V, 50HZ
|
Established in 1997, Guangdong Zhengye Technological Liability Limited Company is a high and new-tech enterprise and is engaged in researching &developing, producing, selling and after-sale services of the precision detection equipments and electronic materials both in Printed Circuit Board manufacturing field and Lithium battery testing industry.
In recent years, the company is dedicated to researching and developing domestic scientific instruments and equipments through the scientific developing mode of "independent research and development", "introducing, digesting, absorbing and then re-innovating" and "combination involves producing, teaching & researching". We have independently worked out and produced more than 40 kinds of testing instruments and equipments for rigid and flexible board such as X-ray nondestructive inspection equipment, ionic contamination tester, visual inspection machine, impedance test system etc. All of the products have our own intellectual property rights, which also have filled the domestic gap. It has satisfiled with the demanding for high quality inspection of the electronic circuit industry and Lithium Battery testing industry.
In the process of continuous development of the enterprise, we have also won high reputation from the government and this industry and has been awarded as the key high-tech enterprise of national Torch Plan, outstanding national brand enterprise in the 1st and the 2ND China electronic circuit industry, national standardization good behavior enterprise AAA enterprise, fast-growing medium and small enterprises, the national torch plan, the famous trademarks of Guangdong province, the major provincial-supported equipment manufacturing enterprises, technology center of all enterprises in Guangdong and preponderant enterprise in intellectual property in Guangdong, etc. At present, the company's selling market covers the Pearl River delta region and Yangtze River delta region and is expanding to South Korea, Taiwan and other southeast Asia areas.
Zhengye technology of the independent research and development production X-ray non-destructive inspection equipments are widely used in the Lithium battery industry\PCB field and electronic manufacturing process, it is used for Non-destructive testing analysis of the products' internal defects. The whole parts of the X-ray non-destructive testing equipment meets safety requirements both in Europe and USA, which has got the radioactive isotopes and radial device management exemption certificate in Guangdong Province.
In future, Zhengye will continue to provide sincere service for customers and further focus on outstanding technical innovation. We will constantly improve the accuracy and stability of testing instruments, strengthen our brand construction with the aim to be a professional supplier of precision detection equipments and electronic materials and Lithium battery testing industry.
