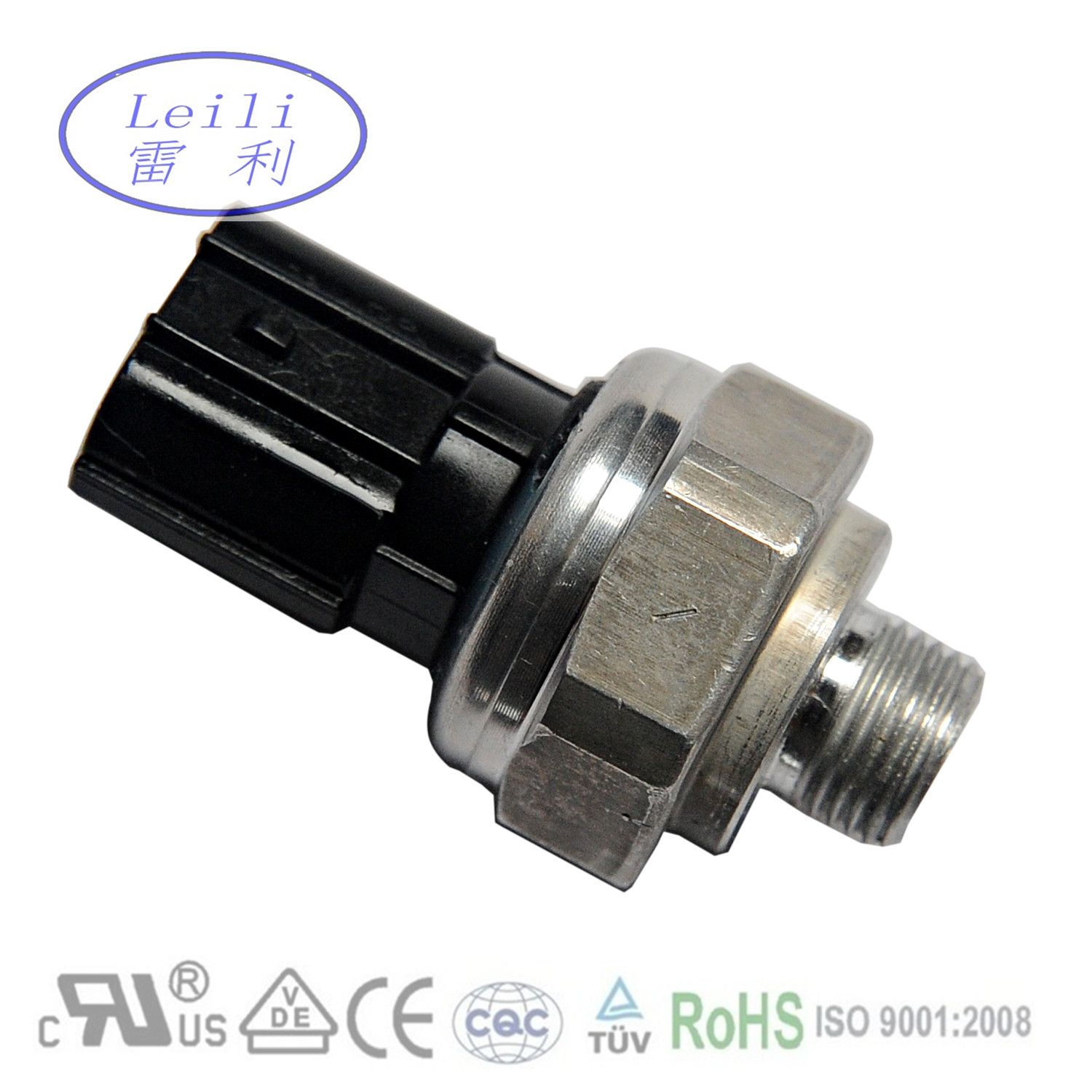

1. Product introduction
The sensor uses MEMS technology, automobile manufacturing and ASIC design. It is especially suitable for harsh automotive environment.
2. Technical features/Parameters
Electric characteristics:
Power supply voltage: 5 ± 0.25VDC
Working Current: ≤ 10mA
Output voltage: 0.5 ~ 4.5VDC,
Response time of pressure signal: ≤ 2.0ms
Overvoltage protection: 16VDC
Specification:
Power supply voltage: 4.75-5.25VCD
Supply Current: 10mA MAX
Working pressure: 0.1-3.2Mpa
Working temperature: -30-120 degree celsius
Output load: 51KΩ ,
Safe pressure: 5.88Mpa
Breaking pressure: 9.8Mpa
Output range: 10-90%Vcc
Tolerance: +/-3%Vcc
3. Output Characteristic:
4. Electrical Connection:
5. Special Point of LEILI:
Create your own brand logo
Strict quality control
On time delivery schedule
6. Our Service:
Reply your inquiry in 24 working hours
Customized design is available. OEM&ODM are welcome
Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff
Special disount are provided to our distributor.
7. About Us:
We are a high-tech enterprises dedicating to research, development, manufacture and service. Since nearly 20 years of development, we have accumulated rich experience in product design and manufacture, quality control, warranty and after service. Our company possesses UL of the United States, VDE of Germany and CQC product certificate of China quality certification center. We have already passed ISO9001 quality management system certification and SO/TS16949 quality management system certification, and develop products with AQPQ advanced product quality planning process to meet customer requirements. With the concept of "People oriented and technology innovation, we have introduced senior and mid-level technical and management personal with rich practical experience and strong quality consciousness and innovation ability, and established a wide range of technical information with industry association cooperation network which aims to ensure the quality of products, at the same time, to keep the product technology and innovation always standing at the top in the industry.
Changzhou Leili Pressure Controller Co., Ltd. is located in Xinnan Village, Yaoguan Town, Wujin District, Changzhou City, Jiangsu Province. It was established on Aug. 1st, 1994. Our company covers an area of 15, 000 square meters. Our main products are automotive pressure sensor, automotive pressure switch and household pressure switch with nearly 500 models.
LEILI Pressure Controller Co., Ltd. is a high-tech enterprise dedicate to research, development, manufacture and service of pressure controller. After nearly 20 years of development, we have gained rich experience in product designing and manufacturing, quality controlling and after service. According to the survey of 2013, our pressure controller has a civilian market share of 15%, and automotive market share of 20%. We have already passed UL of the United States, VDE of Germany and CQC product certificate of China quality certification center, as well as ISO9001 quality management system certification and ISO/TS16949 quality management system certification, and develop products with APQP advanced product quality planning process to meet customer's requirements. We have introduced professional technician and management personal with rich practical experience and strong quality consciousness and innovation ability. We establish a wide range of technical information with industry association cooperation network which aims to ensure the quality of products and keep our technology and innovation always standing in the leading position in this field.
