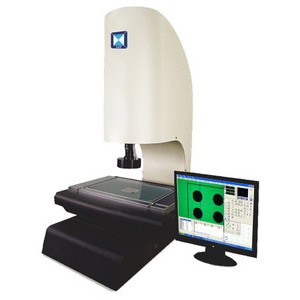

Automated Vision Measuring Machine for PCB Inspection (CV-300)
Price: |
US $ 11000-13000/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Product Specifications
Prod Model: |
CV-300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Automated Vision Measuring Machine |
Model: |
CV-300 |
Stage Size (Mm): |
500 X 300 |
Glass Size (Mm): |
350 X 280 |
Travel X-Y-Z: |
270*170*150 |
Driving System: |
Servo Motor Control |
Speed: |
200 Mm/S |
Software: |
Quick Image Measuring Software Qim-5008 & USB |
CCD Camera: |
Japansentech Color 1/2" CCD Camera |
Lightening System: |
Cold-Light Source Surface and Transmission Illumin |
Product Description
Automated Vision Measuring Machine For PCB Inspection (CV-300)
Feature for this VMS:
Step servo, high positioning accuracy and smooth movement
Advanced Navitar 0.7-0.45x zoom lens
Japan SENTECH Color 1/2" CCD Camera
Joystick and mouse operation, easy to use
Granite base
Programmable LED cold lights
Automatic software
Fast Auto Focus
Model | CV 250 | CV 300 | CV 400 |
Stage Size (mm) | 450 x280 | 500 x 300 | 606 x 466 |
Glass Size (mm) | 306*196 | 350 x 280 | 450 x 350 |
Travel (mm) | X axis | 220 | 270 | 370 |
Y axis | 120 | 170 | 270 |
Z axis | 150 (for focus) | 150 (for focus) | 150 (for focus) |
Driving System | Servo Motor Control |
Speed | 200 mm/s |
Resolution of X/Y/Z-axis | 0.0005 mm(0.5μ m) |
Positioning Accuracy | 0.001 mm(1 μ m) |
Accuracy | ≤ 3.0 + L/75 (μ m) |
Software | Quick Image Measuring software QIM-5008 & USB |
Video System | ? CCD Camera: JapanSENTECH Color 1/2" CCD Camera ? Lightening System: Cold-light source Surface and Transmission illumination ? Zoom Lens: U. S. A Navitar Zoom Lens ? Magnification of field lens: 0.7X-4.5X ? Total Magnifications: 30X-190X ? Object View: 10.6mm-1.6mm |
Weight (KG) | 145 | 170 | 270 |
Power Supply | AC220V/110V 50/60 Hz |
