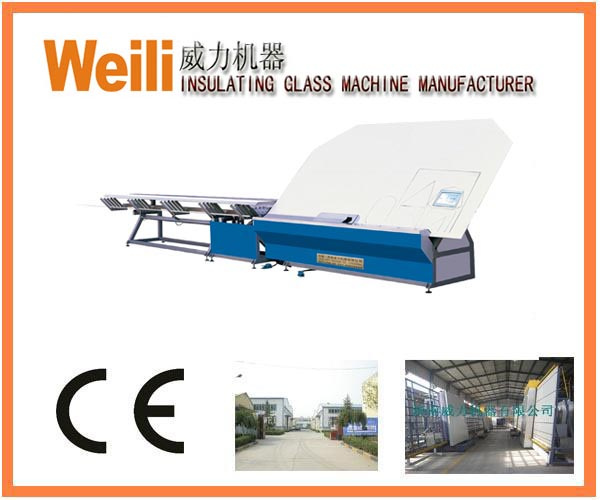

Automatic Bar Bending Machine (LWJ01)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
LWJ01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Application: |
Machinery & Hardware |
Product Description
LWJ01 Automatic Bar Bending MachineFeatures and functions
1. The whole machine is controlled by Siemens PLC. The Man-machine contact screen is Taiwan Easyview brand. The whole machine features easy and quick operation.
2. It adopts Taiwan Airtac pneumatic components. The movements of the machine are precise and reliable.
3. It adopts the Japan FUJI servo motor system to feed and bend the aluminium bar. The efficiency and bending precision are high.
4. The machine is eauipped with four storage area and can store four different sizes of aluminium bar.
5. When bending and cutting, the machine will automatically avoid the connection parts of the aluminium bar and the circle arc parts. After bending, the machine will cut the bar automatically.
6. It can be operated manully so it is easy to debug and maintain the machine.
7. The machine can produce 32 different shapes of aluminium bar, including the triangular, rectangle, positive pentagon, circle arc with a straight line.
Technical Parameters
|
Power supply |
3P 380V/1P+N 200V 50Hz 4KW |
|
Total power |
4KW |
|
Air pressure |
0.6Mpa |
|
Min spacer frame size |
250*250mm |
|
Max spacer frame size |
2400*2400mm |
|
Spacer width range |
5.5mm~23.5mm |
|
Overall dimension |
10480mm*2200mm*2600mm |
|
Production tolerances |
± 0.2mm |
|
Weight |
1800kg |
