Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Application: |
Machinery & Hardware |
| Type: |
Roller-Bending Machine |
| Type For Cutting Machine: |
Automatic |
| Type For Fold-bending Machine: |
Automatic |
Product Description
Information:

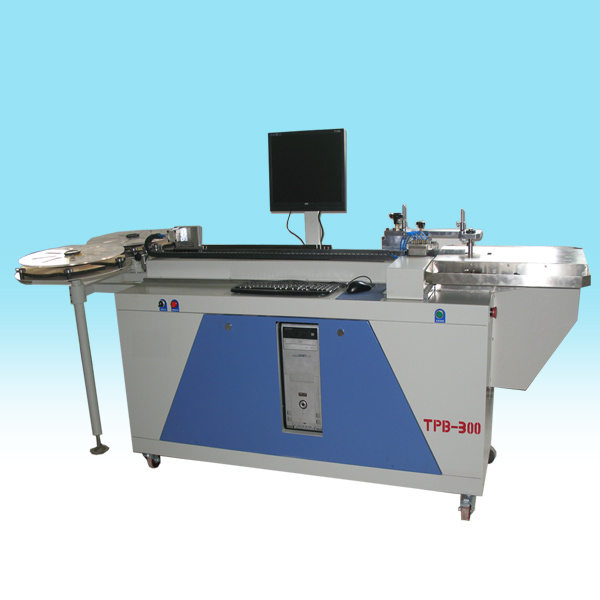

Automatic Cutting Rule Bender Machine (TPB-300)
Steel cutting rule
Model: TPB-300 Auto Bender
1. Use: For making die cutter
2. Function: Bending, Setting notch site, breaking, cutting and lipping
3. Power Supply: 220V 50Hz
4. Material Applied: 8mm-30mm high, 0.45mm-1.05mm thick cutting rule
5. Equipped with: Parker Control System from USA
6. Feeding Systen: Screw rod
7. Master Unit: Length 1550mm*width 930mm*height 1450mm
8. Feeding Frame: Length 550mm*width 550mm*1050mm
9. Features: Easy to operate, high in precision, quick in speed and high in cost performance.
Characteristics:
1)High-precision
2)Low price
Bending Shape:
More:
We can also supply many die-making materials and machines and packing and printing materials and machines.
|
1 |
The Precision After Bending |
+-0.03MM |
|
2 |
The Planeness |
0.5MM |
|
3 |
The Min Head Length of The Bending |
0.5MM |
|
4 |
The Min End Length of The Bending |
1.5MM |
|
5 |
The Min Bulking Angle |
85 degree |
|
6 |
Material Applied |
0.45MM/0.53MM/0.71MM/1.05MM |
|
7 |
The Height of The Blade |
8-30MM |
|
8 |
Power Supply |
380v/50HZ |
|
9 |
Air Pression |
0.6MPA |
|
10 |
Size(L*W*H) |
2550*850*1500MM |
|
11 |
Weight |
500KG |
Yitai Packing-Materi Accessories(Kunshan)Co., Ltd. was established in 2003. We belong to Grandcorp precision mould group, but professional of die-making materials and package machines.
Our main business scope is as below: Flat & rotary die board, cutting rules, creasing rules, creasing matrix, doctor blade, manual die making machine, auto-bender machine, sample making machine, nick grinder, trash-cleaning machine and so on. Specialty and first class service make us attract the customers from domestic and overseas.
Our products are well sold to South Africa\ Australia\ Brazil India We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
