Product Specifications
| Prod Model: |
DXDF-150II |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bag Size: |
L:70-150mm/W: 70-115mm |
| Capacity: |
35-60bags/Min |
| Max Filling Range: |
150ml |
| Power: |
220V,50Hz,1.9kw |
| Weight: |
350kg |
| Dimension: |
700*800*1900mm(L*W*H) |
| Automatic Grade: |
Automatic |
| Driven Type: |
Electric |
| Packaging Material: |
Plastic |
| Material Type: |
Grain |
| Applicable Industry: |
All of The Industries |
| Application: |
Packaging |
| Packaging Type: |
Bags |
Product Description

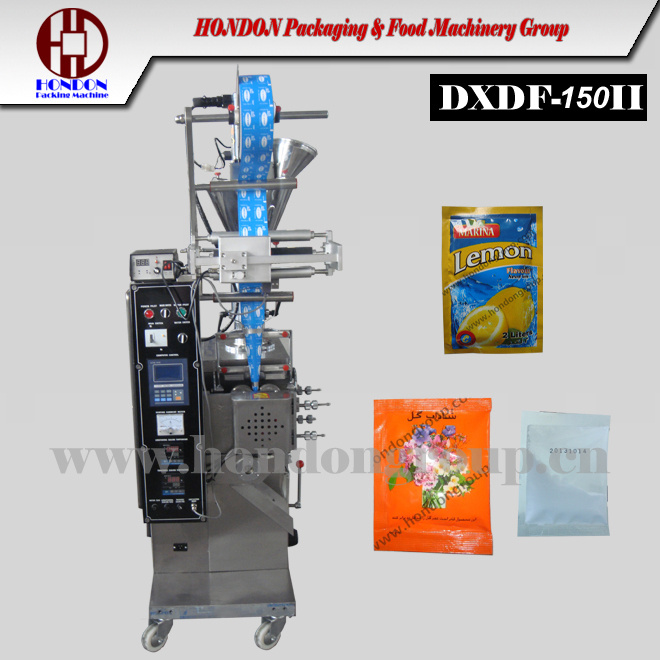

DXDF-150II
Automatic Powder Packaging Machine
Applications
The feeding way for this packing machine is special designed straight auger screw which is made of 304 SS, the straight auger screw will extend to the above the sealing roller to avoid the powder spreading phenomenon to make sure the seal side of the bag neat, gas-tight and beautiful. Also, the machine head for this packing machine is movable, it is easy for you to clean the machine after using it.
Features
1. Compare with other factories' machine (201 stain steel and iron screw), which always facing with rusting problems, our machine's exterior and exposed screw all made of high quality 304 stainless steel, which meet with GMP requirement.
2. The adjustment for the grams of the powder is controlled by the computer controller, you can adjust the filling range of the bag via the computer controller imported from America. The measuring for the grams of the powder will be very accurate.
3. Our complete machine is fully controlled by imported computer system. Further more, all of our circuit and electrical equipment meet up with 3C standard(China Compulsory Certificate). Support with these structures, the whole operation can be more secure and reliable.
4. The internal gear with chain system makes the whole machine running steady and speedy, keep the noise lowly and extend the service life more than ten years.
5. Advanced sealing system makes the bag sealing process much more solid and pretty.
6. Our thermometric system designed with special slip ring technique, which measure the surface temperature of the packaging material, in order to make sure the artistic of the bag.
(Other company's machine designs with clipping bars, which only measure the temperature of the slide block. This inaccurate temperature measurement always cost the bag in-aesthetic problem. )
7. With no need for the lubricating oil, our high-temperature bearing design(which imported from Japan) helps our customer save huge amount of maintenance expense. Compare with other factories' bearing bush structure, our bearing design can extend the service life from regular 1-2 months into 2-3 years.
8. Humanized hidden Free-Swinging knife design extend the knife's service life longer and makes the knife usage more secure to our customer.
9. This machine already receive European CE certification, Chinese MC certification and Swiss SGS certification.
Company Profile
Established in 1986, Hondon Packaging & Food Machinery Group is specialized in producing various packaging machines and food machines.
We are the first one to obtain the international certificate of ISO9001: 2000 edition in packaging line. And some of our products have obtained European countries' product certificate on the CE system.
All products are applied for the country patent in practical new-mode and out-surface design etc.
The machines are applied for the packaging of soft bags of granule, powder, sauce, tablets etc in the industry of medicine, food, daily expenses, chemical, dairy products, quick noodles condiment, tea etc.
The packaged bags are even and perfect owing to the unique design of the forming system. All the processes of bag making, measuring, filling, sealing, cutting, counting and printing can be done automatically.
The producing procedure is proceeding on the monitor of Canadian Emulation Inc. Our products are very popular in the Domestic market and exported more than 40 countries and regions, such as USA, Canada, Italy, Egypt, Turkey, Iran, Russia, Malaysia etc.
Operation in honest, leading the industry, creating fine products, famous in the industry. We provide the packaging equipment of non-standard for user, in the meantime of providing the various packing machines.
We hope to establish friendly business relations with domestic and abroad customers, create good future together.
|
Bag size |
L: 70-150mm/W:70-115mm |
|
Capacity |
35-60bags/min |
|
Max Filling range |
150ml |
|
Power |
220V,50HZ,1.9KW |
|
Weight |
350Kg |
|
Dimension |
700800*1900mm |
