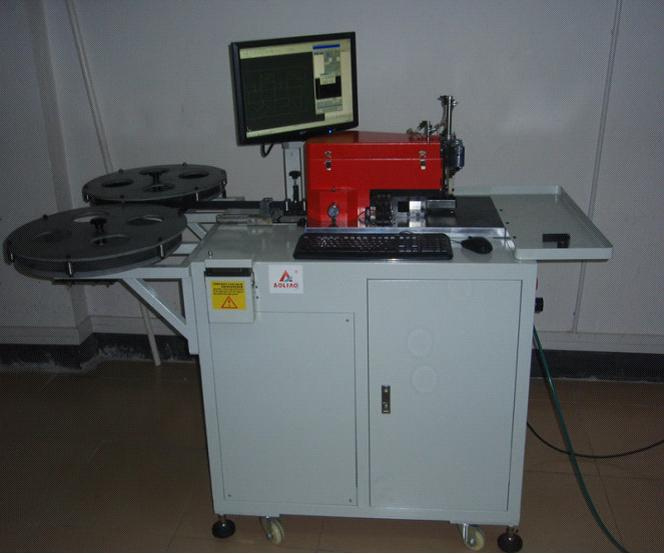

Product Specifications
| Prod Model: |
XGY-7100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Coiling Bending Machine |
Product Description
\Machine Configuration
Parts Description Quantity
Software & control Taiwan Control System BKM-S one
Bending axis servo motor Panasonic A5 one
Feeder axis servo motor Panasonic A5 one
Bending axis speed reducer SHIMPO A5 one
Feeder axis speed reducer SHIMPO A5 one
Display Acer one
Mainframe Special Industrial Computer one
\Mould Configuration
In Model BKM-ACC-BE one
Out Model BKM-ACC-MO one
Push Head BKM-ACC-BR one
Shears BKM-ACC-CU one
\Computer configuration
Computer P4Mainframe 1G Memory
Dual Core CPU 19 Inch LCD Widescreen
\Technical parameters
90° Min. R 1mm
180° Max. R 3mm
Max bending R 200mm
Max bending angle 130°
Min 90° Bending size 2mm
Min shearing size of the head 1mm
Min shearing size of the tail 0.5mm
Feeding accuracy ± 0.05mm
Bending flatness ± 0.3mm
Bridge site size Width: 6mm; Length adjustable
Available document forms dxf. Nc. Plt
Wood packing size 1750*650*1350mm
Available environment Well ventilated, dry & below 40
Air pressure 0.5~0.6mpa
Voltage and frequency 220V 50Hz
Power 1.2KW
\Features and functions
1: Self-developed updated automatic bending control system with powerful function. Adoption AUTO CAD interface, easy to learn and easy to understand. Control system support various kinds of file format, such as DXF \AI \PLT and so on.
2: Our machine takes imported steel for bending mould which is tough\high strength\durable.
3: High and accurate performance guarantee bender consistency.
4: The special profession designs, having the mighty flection edit the function, process of automatic bending \notching\cutting\lipping and so on functions. Reduce the working intensity for users.
5: Using "Bend first, Cut last ", does not waste the rule, saves the cost for users.
6: Our machine takes imported the high performance servo motor driver, reduce the fault rate for users.
7: Once \one group \ the many group processes the pattern, the realization in batches fully automatic process.
8: The more reasonable price, the more thoughtful service. Supply the accessories of the machine regularly, train the operator and the technique support.
\Functions
1: Applicable blades
(1) Height of rule: 0.45-0.71mm Thickness of rule: 23.8-30 mm
(2) Height of rule: 0.45mm Thickness of rule: 8.0 mm
2: Using "Bend first, Cut last ", make the shear surface smooth.
3: Two-way activity coil-trolly setting, may use clockwise and counterclockwise two different direction of the blades.
4: Process of automatic bridge, arbitrary set the width.
\Applicable industry
1: Printing\packing\clamshell blister\laser mould \handwork mould;
2: Paper box \ toy mould \ self-adhesive and so on.
