Product Specifications
| Prod Model: |
XLQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Carbon Steel, 304ss or 316L |
| Install: |
Vertical, Horizontal |
| Filter Precision: |
5-500microns |
| Max Pressure: |
1.0 Mpa 1.6mpa |
| Power: |
380V 50Hz |
| Filter Rating: |
30-3000 Um |
| Filter Area: |
1500-13500 Cm2 |
| Power Supply: |
550W |
| Control Way: |
PLC or Not |
| Motive Force: |
Electric power |
| Usage: |
Environmental Protection |
| Type: |
Water Filter |
| Certification: |
SGS, ISO |
Product Description

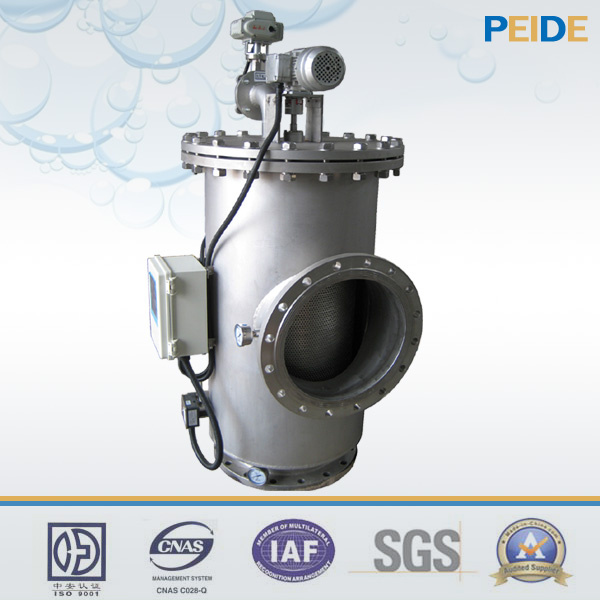

Automatic Control System Self-Cleaning Water Filter for Underground Water
1. Application of water filter
1. Lake water, Sea water, River water, Well water, Underwater
2. Cooling tower, Air conditioning system, Supplement water
3. Industrial recycling water
4. Irrigation water.
2.How It Works
The unit consists of two stages of filtration, a coarse pre-filter and a stainless steel fine screen.
The unwanted solids accumulate on the inner surface of the fine screen, building up a filtercake, which filters out even finer particles, creating a pressure differential. Once the pressuredrop reaches a preset level, a rinse cycle is activated by the factory supplied control system.
The solids are removed from the fine screen using a spot backwashing method, whichaggressively sucks the dirt off the screen, similar to a vacuum cleaner, and are carried tothe drain via the rinse valve. The dirt collector rotates, ensuring the entire screen is cleanedeach cycle. The process takes a matter of seconds, without interruption of system flow.
3.Control Method
Filter has differential switch and integrator. Once the pressure drop reaches a preset level, a rinse cycle is activated by the PLC controller.
4.Feature
structure compact
low water consumption
fine filter degree
low pressure drop
5.Application
1,Chilling water treating: such like cooling tower, water supplement system, air conditioning system, heat exchange system.
2,Raw water treating: such like surface water, lake, sea water, tank water, well to remove grind, sand, algae, organism etc.
3,cycling industry water: cooling tower, polishing process water, ion exchange water, spraying process water, heat exchange plant, rolling plant, casting plant etc.
4,irrigation: farm, dip field, golf, lawn etc.
5,recycle water
Parameter
| Max Water Temperature | 70 centigrade
(Reach 100 centigrade in special requirements) |
| Filter precision | 80-500microns |
| Pressure loss | 0.01-0.08Mpa |
| Max pressure | 1.0Mpa, 1.6Mpa |
| Control method | Pressure differential control, time control and manual control |
| Filter flow | 15-1000 CMB/Hour. If customer need higher flow, we suggest using many automatic sucking type filter parallel. |
| Backwash Time | 60-120 seconds |
| Backwash Water Consumption | About 500 kg |
| Power | 380.50Hz, 3 phase, Controller 220V |
| Power of Motor | Suction type 0.37Kw |
| Motor | 14-20 round every minute |
| Filter chamber material | Resin covering carbon steel or stainless steel |
| Filter strainer | 316 stainless steel (weave, stintering, wedges) |
6. How to Select The Appropriate Water Filter
1. The Water Flow
2. System's Pipe Pressure
3. Filter Medium Thickness and Diameter
4. Filter Precision
5. Physical and Chemical Characteristic of Medium
6. Local Voltage
7. Our Quality Assurance System
1. We have passed the ISO9001 quantity management system certification, SGS certification
2. Each produce with a warranty and after-sales toll-free information.
3. We provide services in researching, water quality monitoring, designing, technical consulting, commissioning.
4...We owned 17 items of patented technologies
5...We are the most powerful manufacturer of water treatment equipment in China; China famous brand, Quality Trust-worthy enterprise
6. Our annual sales reached 4, 300 sets, which make sure of the stable and persistent quality.
Welcome to inquire, We will offer you the best items !
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,
For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.
Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .
Certificate: ISO: 9001: 2008, CE, China Famous Brand
Sales: 20M RMB/year
Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
