Product Description

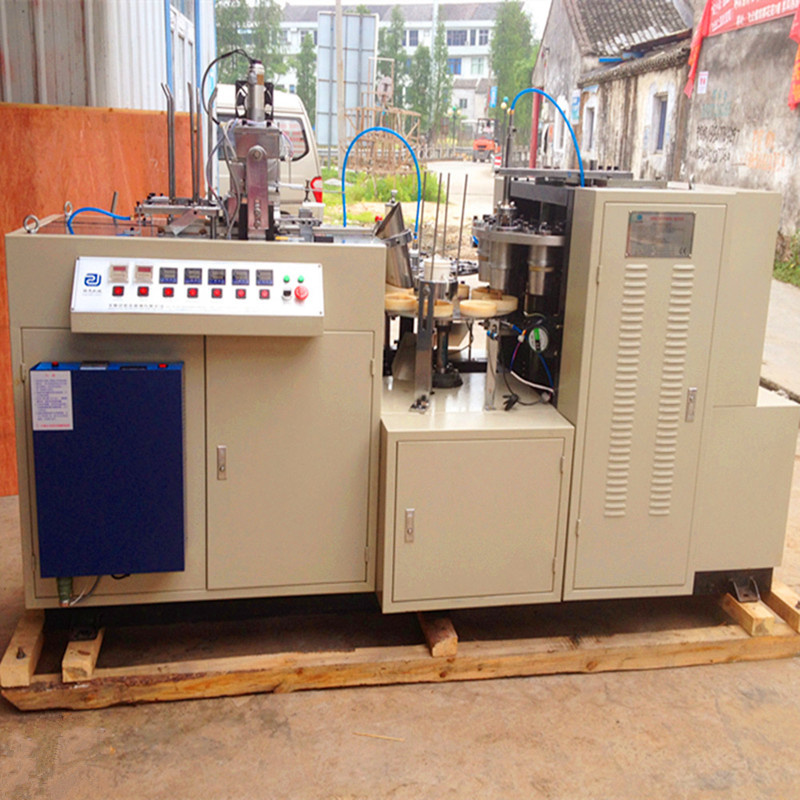

DS-L16 Automatic Double PE Coated Paper Cup Machinery
It is an development on the basis of common ultrasonic paper cup machine, it is used to make super size cup(the height of cups can be up to 180mm), The machine is with ultrasonic sytem to sealing the paper cup body, the ultrasonic syste, resolves the problem that double side PE coated paper cannot be sealed by heater, the reason is that when a heater is adopted on the outside sureface, the PE film will be burnt and become yellow or blackish and make the cup's shape ulgy. then in this machine you can produce both single side and double side PE coated paper cups only by changing the raw material.
Technical Data
Suitable Size |
>=16oz(mold changeable) |
Raw Material: |
150-380gsm one/two-side PE coated paper |
Ration Productivity: |
40-50pcs/ min |
Total Power : |
3.8-5.5KW |
Working Pressure: |
0.4-0.6MPA |
Power: |
220V or 380V / 50HZ |
Net Weight: |
1600kg |
Gross Weight: |
1700kg |
Machine Size: |
2620L*1200W*1600H(mm) |
Main Advantages
Capacity |
45-60pcs/min, which is faster than other similar machines |
Divided Box |
Divided box can be 125 type or 100 type, on client decision |
Speed Reducer |
It is 1:30 100type, other company use 1:20 80 type.
Our 100 type speed reducer is bigger with stronger outputting
which makes which make machines more stability and work longer |
Total Power |
Smaller than other company machine, which saves a lot of electric
power |
Free spare parts |
one year guarantee,will give spare parts with machine while packing (enough for 2year using) with one year,all parts given for free,
after that we need charges and delivery cost |
Machine Details
FAQ:
1. ARE YOU MANUFACTURE FACTORY OR TRADING COMPANY ?
We are the manufacturer of the paper cup machine, die cutting machine, cake tray machine paper plate machine and also the burger box machine in China.
2. WHERE IS YOUR FACTORY LOCATION?
Our company locates in No.1, Ruiyang Industrial Zone , Zhangdi, Ruiyang Village, Wanquan Town, Pingyang, Wenzhou, Zhejiang,China
3. WHAT ABOUT YOUR MACHINE DELIVERY TIME ?
25 days after getting the advance from client
4. HOW DO U PACK THE MACHINE?
Export and sea-worthy standard wooden case
5. WHAT IS YOUR PAYMENT TERMS:
T/T or Western Union, 30% as deposit. Balance before delivery/against scan copy of BL.
6. WHAT IS YOUR SERVICE?
one year gurantee. if any question on the machine, the client can take picture and video to show us, we will figure out the problem and tell the ways to fix. If the client need the engineer to come to check, they need to pay all the charges, including flight, accommodation, salary, etc.
Pingyang Dush Machinery Co., Ltd. is specialized in producing series of paper product making machinery. Our factory boasts advanced equipment, strong technological strength and rich manufacturing experience. We study current products and future trend to develop novel products such as single PE or double PE coated paper cup forming machines, paper bowl forming machines, paper cake tray machines, paper plate machines, tea hidden cup machines, cutting and creasing machines.
Every year, we also created some new style machine, such as fuel oil filter machine, hotel cup lid machine, etc. We constantly improve ourselves to provide customers with quality products and first rate after-sales service.
Our company has advanced equipment, solid technical power and plentiful manufacturing experience. Moreover, we attach importance to after sales service. All of our machines have one year warranty, including installing and debugging equipment, training technical staff and others. In addition, we can provide raw materials, technology and equipment of paper products.
We prefer action to words. Our company is growing up! We hope all customers can witness and get double-win with us.
We warmly welcome the domestic and foreign friends to cooperate with us. If you are interested in any of our products, please feel free to contact us.
