Product Specifications
| Prod Model: |
YCW-210F8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Ycw-210f8 |
| Weighing Capacity: |
Less Than or Equal to 3000g |
| Weighing Accuracy: |
+/- 3G |
| Sorting Speed/Throughput: |
160PCS/Min |
| Weighing Products Length: |
<300mm |
| Weighing Products Width: |
<210mm |
| Products Memory Parameter: |
up to 99kinds |
| Mechine Dimension: |
4603 L*896 W*1494 H (Mm) |
| Type: |
Automatic-weight Classifier |
| Sorting Method: |
Pusher-bar |
| Accuracy: |
＜±2g |
| Check Weight Range: |
1000-4999g |
| Touch Screen: |
Touch Screen |
| Application Area: |
Seafood Aquaculture Industry |
Product Description

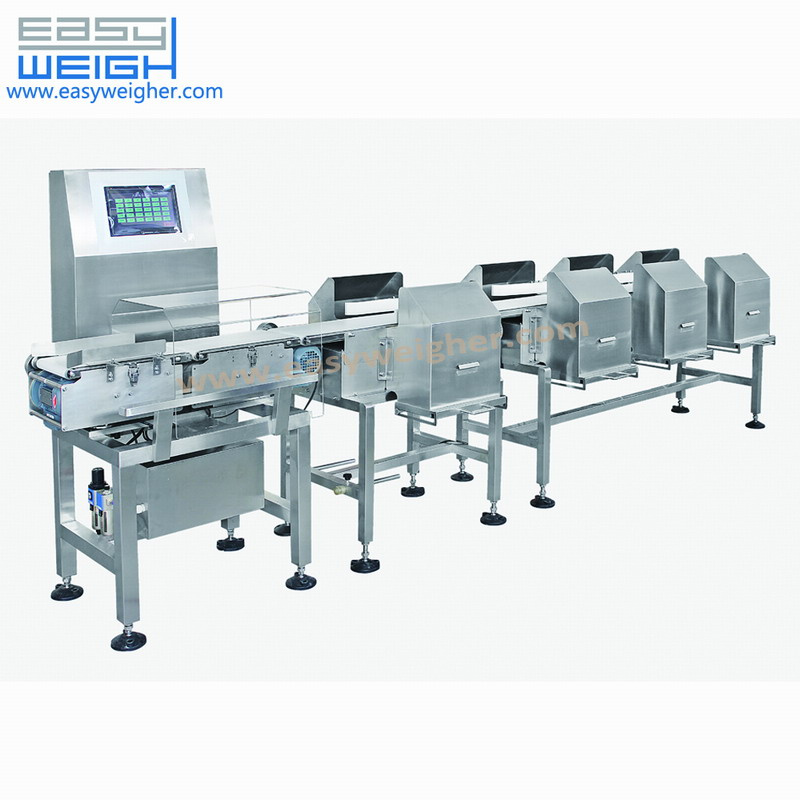

The weighing sorter is to check and weigh the products online, then to sort into 8 gates/trays for which have allocated with different weight class as well as automatically grading the products as you need without handy worker, improving the precision of products sorting, This Weight Grader is specially for seafood or aqualtic products sorting, It can helpful to increase capacity utilization and cut down worker cost and food safety.
Advantage
* Waterproof design with IP65 Protection Grade.
* Food and pharmaceutical hygiene standard.
* Standard machine structure and standard interface can suitable for wide range products;
* Easy panel operation with HMI touch screen;
* Up to 99 preset products memory, quick product changeover;
* Quick release drive unit for simple maintainace and easy cleaning;
* Speed adjustable by variable frequency motor;
* High speed and High precision, by high speed A/D Sampling Controller;
* Customized machine acceptable.
* Zero tracking: Zero by manual or automatic, dynamic zero tracking available;
|
Model No. |
YCW-210F8 |
|
Weighing Range |
≤3000g |
|
Weighing Accuracy |
±1~ ±3g |
|
Minimum Scale |
0.1g |
|
Throughput/Sorting Speed |
Max. 160pcs/min, Suject to feeding speed |
|
Weighing Product Length |
≤300mm |
|
Weighing Product Width |
≤210mm |
|
Measuring Belt Size |
210mm*300mm |
|
Working Condition |
Temperature: 0 C~ 40 C Humidity 30% ~ 95% |
|
Products Memory |
up to 99 kinds |
|
HMI |
Touch Screen |
|
Machine Frame Structure |
SUS304 Full Stainless Steel |
|
Protection Grade |
IP65, Water Proof |
|
Power Supply |
AC220V 50hz ~ 60HZ |
|
Sorting Device |
Swing Arm |
|
Machine Size |
4603mm (L) *896mm (W) * 1494mm(H) |
