Euipment Introduction

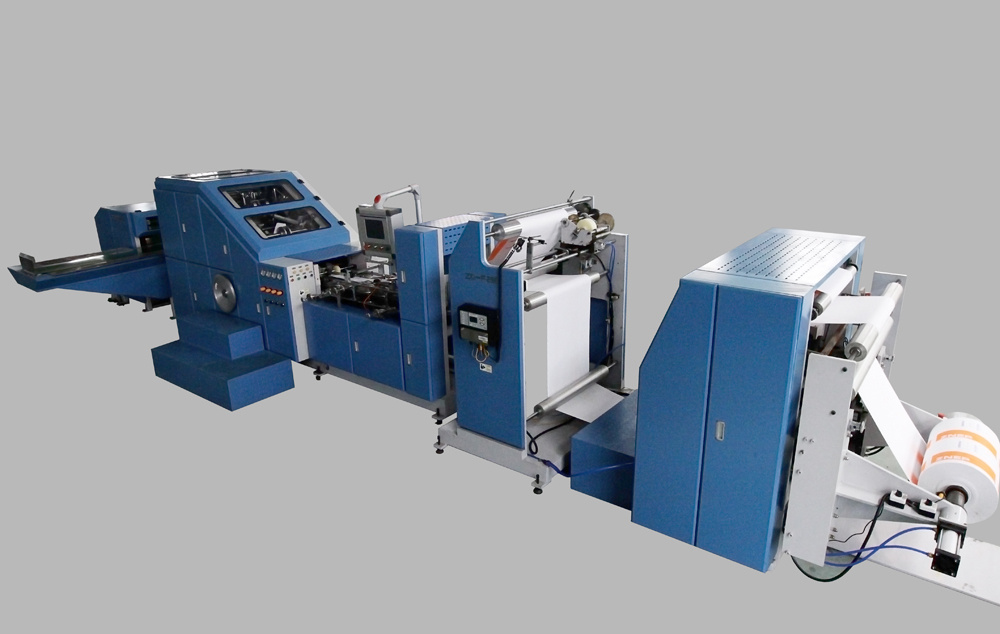

ZD-F190/290/450 full automatic square bottom paper bag machine, paper as raw material for the production of environmental-friendly paper bags, food paper bags, shopping paper bags. It can use primary color or post-press roll paper to finish bag forming in one step, with automatic functions of side gluing, folding into a tube, cutting paper tube, bottom creasing, bottom gluing, bag bottom forming, bag output and etc. The machine adopts the original German electronic control system (Bosch Rexroth), the production of paper bag length and collecting finished products is controlled by servo motor, with advantages of high precision & efficiency, strong stability and easy maintenance.
| Model | ZD-F190 | ZD-F290 | ZD-F450 |
| Roll paper width | 280-650mm | 380-1000mm | 660-1300mm |
| Paper tube length | 190-380mm | 270-530mm | 270-580mm |
| Bag face width | 80-190mm | 120-260mm | 260-450mm |
| Bag bottom width | 50-110mm | 65-150mm | 70-170mm |
| Paper gram | 50-150GSM | 60-150GSM | 60-150GSM |
| Max dia of roll | 1200mm | 1200mm | 1200mm |
| Inside dia of roll | 76mm | 76mm | 76mm |
| Max speed of bags | 280pcs/min | 230pcs/min | 200pcs/min |
| Total Power | 13KW | 16KW | 18KW |
| Weight | 6500kg | 8500kg | 10000kg |
| Machine Dimension | 8800*1800*1600mm | 9200*3200*1900mm | 9500*3500*1900mm |
| Machine Color | White or blue | White or blue | White or blue |
| Computer Box | Touch Screen /automatic PLC | Touch Screen /automatic PLC | Touch Screen /automatic PLC |
ZONO Packtech is had 12 years experience on paper machine series, which is service for NANJING ZONO MACHINERY. We manufacturer paper bag machine, envelope machine series, die cutting machine, slitting machine and paper cutting machine which used on envelope production line, paper bag production line, food production line. Basic on print, die cutter, package etc one stop-station service.
ZONO Packtech ' S head office is keep at wenzhou city, the machine capital of China. Also is bsiness city and near Shanghai ningbo port around 1 hour. Our factry -ZONO MACHINERY which is situated in No. 31 Gu' Tan Road, Gaochun Economic Development Zone, Nanjing City, covering 16000 squaremeters. Closing to Shanghai and Ningbo port, 30km away from Nanjing Lukou Airport, which form excellent geographical location and convenient traffic.
ZONO Packtech is come from Italy-which mean beauty & nice. So we make our servie and customer in our heart., according to the business philosophy of "based on market quality, customer service to create brand credibility",
ZONO Packtech has entered into a new aera, and is willing to set up long-term relationship with businessmen in all over the world...
