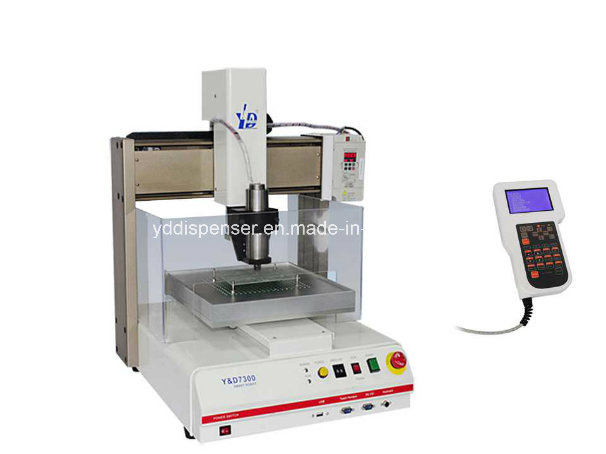

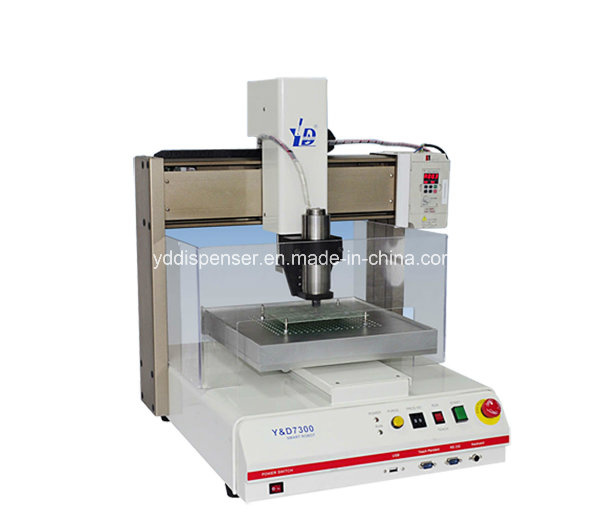

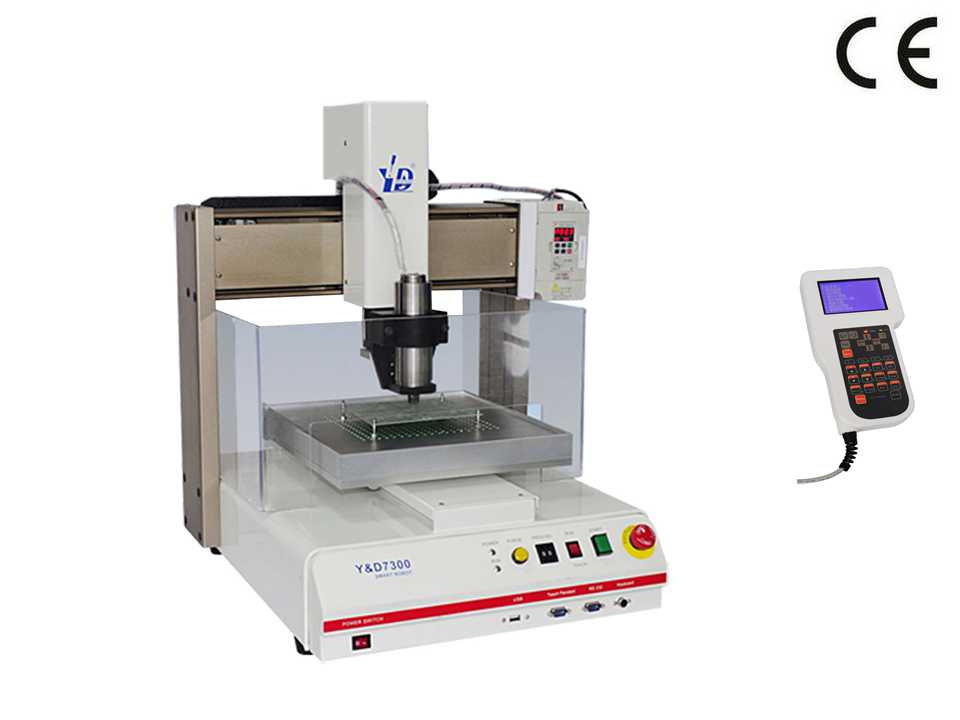

High quality & precision PCB cutting machine for electronic products
Y&D7300 cutting machine is three axis designed with micro stepping motor, it is especially suitable for PCB cutting. This kind of cutting machine is operating by teach pendant which is quite easy to learn and use. User can learn to make program in a few minutes. Its moving speed when working can reach at 100mm/s, and its positioning speed can reach at 500mm/s. Designed with a cleaner on the Y Axis, there will be no dust last when finish cutting. High-tech designed with excellent quality hardware to make sure its high precision and performance. It can continual to cutting when you make it up or take it apart. With high quality rotating system which makes it quick and easy to speed up or slow down. In using this kind of cutting machine can not only improve working efficiency but also can make sure its precision. So this kind of cutting machine is popular selling all over the world.
Specification
Item Y&D7300 cutting machine
X/Y/Z working area (mm)300/300/100
Air moving speed500mm/s
Cutting speedMax 100mm/s
Rotate speed50000r/min
Resolution0.01mm/axis
Repeatability+/- 0.01mm / axis
Cooling modeCold air
Circuit board thickness0.4-4mm
Handing modeManual work
Program DisplayTeach pendant LCD
ConfigurationX/Y/Z 3 axis
Program methodTeach pendant
I/O signals8 inputs / 8 outputs
External interfaceRS232
Power supply AC 90~260V 500W
Operating temperature0~40°C
Motor systemMicro stepping motor
Dimensions485*505*610
Net Weight34kg
Any questions pls feel free to contact me, I will give you te specific answer for every question. Also I promise t give you the quickest reply as soon as I get it.
