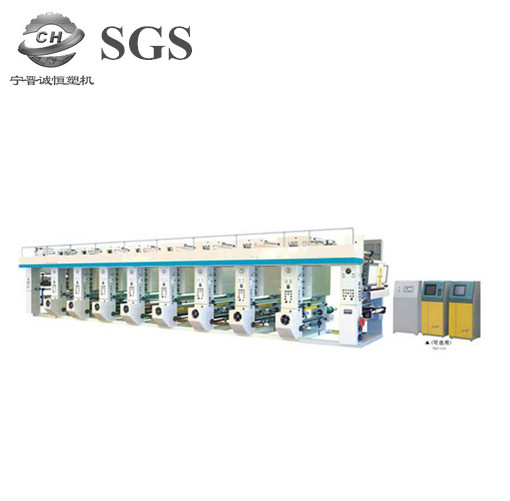

Performance & Feature
1. Every control module of the automatic color register system is equipped with a microprocessor which can correct the deviation of color register quickly and accurately.
2. The main motor is equipped with frequency converter for the speed regulation
3.Unwinding tension adopts the automatic tension controller and the magnetic powder brake.
4. Rewinding process employs the torque motor and the double-station automatic turret.
5. Closed oven, independent heating hot air blowing system and automatic constant temperature system.
6. Pneumatic pressing and traction system and pneumatic scraping blade system
7. Diaphragm-type pneumatic ink auto circulating system
8. Inflatable air shaft for unwinding/rewinding material loading
9. Printing linear speed and meter counting display
10. Shaftless printing cylinder loading device
11. The still frame can be selected.
12. Five-motor or seven-motor closed tension control system is optional.
Main Technical Dimension
Model | CHCY -8/600D | CHCY -8/800D | CHCY -8/1000D |
| Printing width | 600mm | 800mm | 1000mm |
| Max. width of materials | 650mm | 850mm | 1050mm |
| Max. printing speed | 140m/min | 140m/min | 140m/min |
| Max. machine speed | 160 m/min | 160 m/min | 160 m/min |
Max. diameters of
winding and unwinding | 600mm | 600mm | 600mm |
| Roll diameter | 76mm | 76mm | 76mm |
| Printing roll diameter | 120~300mm | 120~300mm | 120~300mm |
| Registering precision | ±0.1mm | ±0.1mm | ±0.1mm |
| Tension control range | 3~25kg/Full Width | 3~25kg/Full Width | 3~25kg/Full Width |
| Oven heating power | 96Kw | 120Kw | 168Kw |
| Total power | 133Kw | 161Kw | 185Kw |
| Machine weight | 23000kg | 25000kg | 27000kg |
| Overall dimension | L14500×W3300×H2700mm | L14500×W3500×H2700mm | L14500×W3700×H2700mm |
The machine shape, performance and feature of the technical parameters can be changed at any time without prior notice. Without the written approval of Fang Bang company, no materials shall be reproduced or disseminated.
Service;
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service(No charge for changing parts) and mechanical parts lifetime warranty.
3.We will offer you the professional answers about the relating machines in 24 hours.
