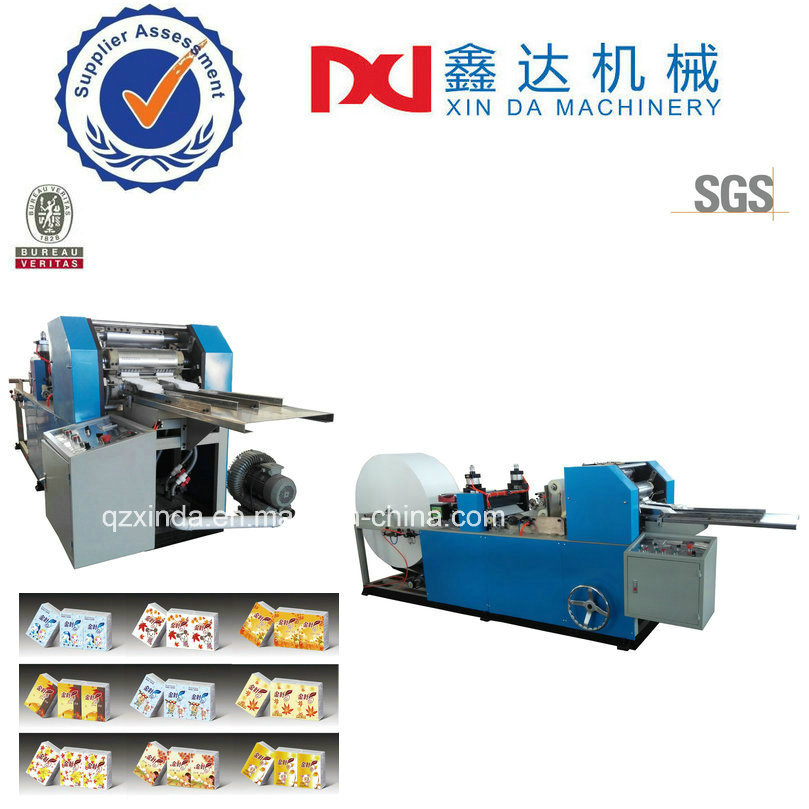

Automatic high speed pocket facial tissue paper machine Xinda machinery
Description:
CIL-MFT-21Mini type facial tissue machine adopts vacuum adsorb and high-speed to fold the paper. Adopting step-less adjusting speed, and it is running smoothly. It is special equipment for 4 folding facial tissue machine. This machine composed of raw paper stand, embossing unit, lengthways folding unit, cutting and transversal folding unit, It runs a whole set of rolling to fix difference tension of raw paper, embossed, lenghtways folding, pushing the paper, cutting the paper, transversal folding paper and finished products transfer.
Features:
1...Embossing design on raw paper with clear embossing shape.
2. Controlled with rolling tension to fit production with different tension of raw paper.
3. Mill edge infolding, the appearance of product is elegant.
4. Adopting screw turning knife to cut for easy adjustment
5. Adopting vacuum folding format.
6. Equipped with single color or double color printing according to customers' requirement.
Technical Parameter:
| Model | CIL-MFT-21A | CIL-MFT-21B |
| Power | 4.5Kw(380V or 220V 50Hz) | 5.5Kw(380V or 220V 50Hz) |
| The max. production speed | 400-500 pcs/min | 700pcs -1000 pcs/min |
| Specification of finished product(LxWmm) | a.75x52 (opening 210x210)
b.105x52 (opening 210x210) | a.75x52 ( opening 210x210)
b.105x52 (opening 210x210) |
| Overall dimension(m) | 3.15x0.77x1.26(LxWxH) | 3.15x0.98x1.26(LxWxH) |
| Weight of equipment | About 0.8T | About 1.2T |
Quanzhou Xinda Machinery Co. Ltd is located in the Quanzhou City which is a famous Historical and Cultural City, Fujian Province, China. Our company was founded in 1997. Beginning in the 1980s, we engaged in machinery manufacturing, main production toilet paper machine, napkin paper machine, facial tissue machine, baby diaper production line, coffee filter paper bag machine and paper cup coaster machine and disposable household paper manufacturing machinery. And we can also design and manufacture machine according to the customer' S requirements. Including non-standard machine. Our main market is the Middle East, Africa, Eastern Europe. Now we are trying to open up Emerging markets, mainly Brazil, Russia and South Africa. We have over 12, 000 kilometers of its own plant and have over 25 years experience in research and development technical team. We offer the favorable price, the well-pleasing service and quality to both domestic and overseas customers. Our company have International Quality System C E certificate as well as production capacity and trading capacity have already certified by BV international inspection group certifier. We have agencies in Dubai and Cairo( Egypt ) and Tehran( Iran). Provide consultation and satisfactory installation and maintenance services.
Quanzhou Xinda Machinery Co., Ltd. Wishes to create a bright future with every friend from all over the world.
