Product Specifications
| Prod Model: |
EM-180S-19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
1-1000ml |
| Measuring Device: |
Liquid&Paste Filler |
| Power: |
9kw |
| Packaging Capacity: |
60ppm Max |
| Function: |
Spouted Pouch, Doy Pack, Zipper Pouch |
| Automatic Grade: |
Automatic |
| Applicable Industry: |
Medical |
| Application: |
Carbonated Drinks |
| Driven Type: |
Electric |
| Material Type: |
Liquid |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bags |
Product Description

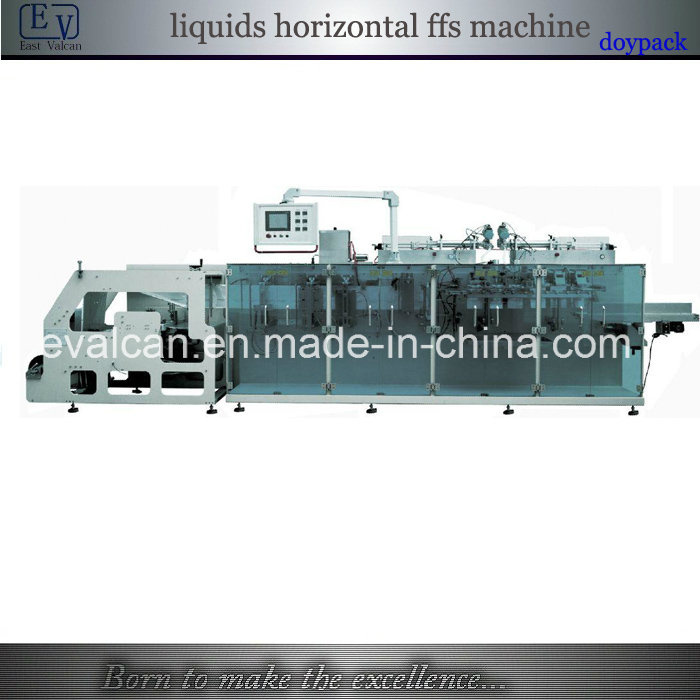

Automatic horizontal ffs machine for beverage
Applications:
It can be used to pack liquid product such as milk ,juice, ketchup ,paste, shampoo,detergent etc. up to 1000ml.
Function:
The machine can automatic finish bag forming, filling, easy tear notch making, print date, finished bag discharged. Reclosable zipper, spout, nitrogen flushing, unique bag shape, hole and Round corner punching are optional.
Characteristics:
1) PLC control, English and man-machine interface, operating easy and simple maintain .
2)Advanced photoelectric sensor tracking system and servo motor pull for precise bag width and position of film.
3) versatile machine could make doy pack bag with zipper or spout, unique bag shape could be designed according to requirement.
4) independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.
5) easy and fast adjustment of change over, the machine has strength extensibility, could fill two or even more products into one bag by added filling device .
6) smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production to get Friendly working environment.
Technical Specifications:
| Model | EV-180S |
| Measuring range | 1-1000ml |
| measuring method | piston pump filler |
| bag size | Length: 110-250mm width: 90-180mm |
| Capacity(max) | 50 bags/min |
| Control style | PLC+ English touch screen |
| Power | 8KW |
| Power supply | AC 380V 50Hz |
| Air pressure | 0.6Mpa |
| Weight | N.W.:2150Kg |
| Dimensions(mm) | 6900(L)*1210(W)*1500(H) |
| Bag shape | Stand up pouch |
