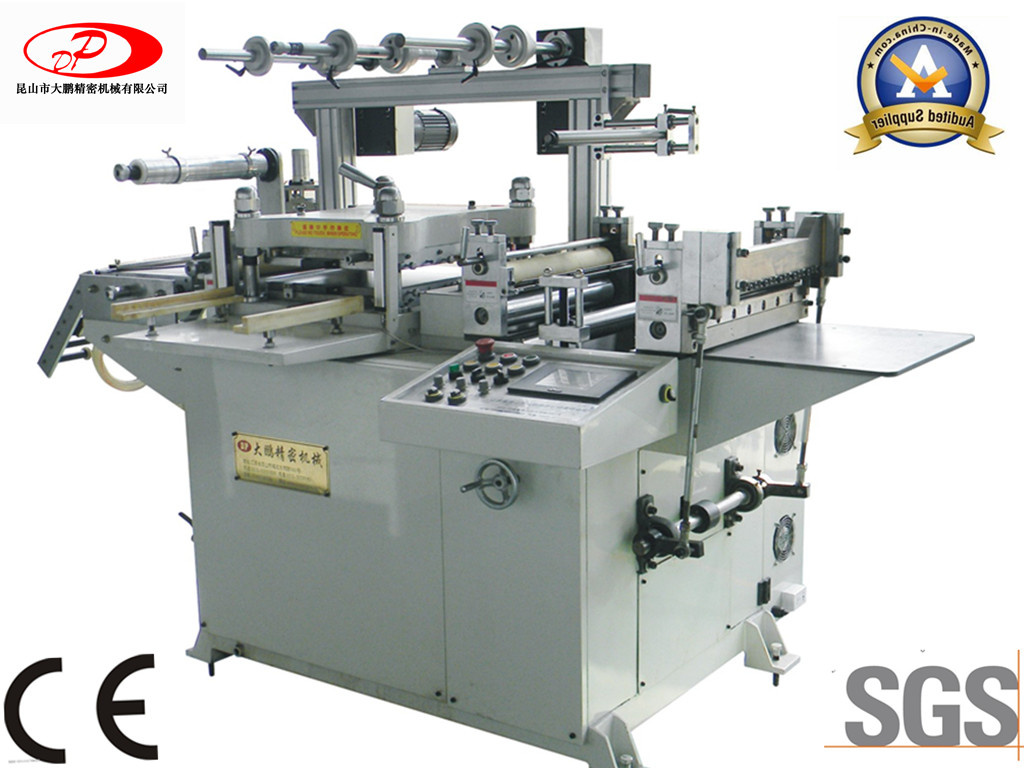

Automatic Induction Seal Cap Liner Die Cutting Machine (DP-320B)
| Price: |
US $ 14000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Automatic Induction Seal Cap Liner Die Cutting Machine(DP-320B)
Functional Characteristics:
320B die cutting machine is developed on the basis of imported cutting machine.
The machine body is cast on the whole, and the mahcine enjoys powerfull pressure, stable operation, firm and durable.
It contains an oil gear box which reduces abrasion to the mahcine during the operation, thus prolonging the life span of the machine,
Enhacing the utilization ratio of the machine. Press itinerary and pull the material length are automatically adjusted by screen, make mold-adjustment more convenient
Automatic Induction Seal Cap Liner Die Cutting Machine(DP-320B)
Scope applicable:

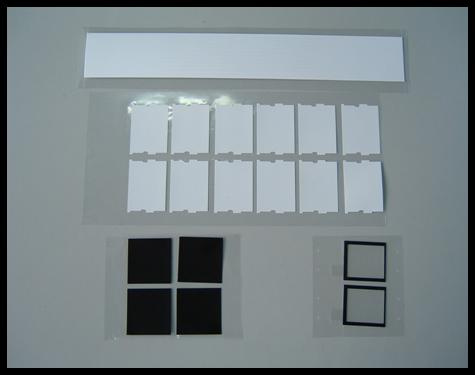

The product is developed aiming at die cutting and forming of various insulating materials such as PVC, film, Mylar, copper oil, aluminum foil, foam, vinyl, polyester etc.
Screen protective film in the electronic industry.
Automatic Induction Seal Cap Liner Die Cutting Machine(DP-320B)
Model: DP-320B
Max Feeding Width ( mm ): 320
Cutting Area ( mm ): 320*300
Cutting Speed ( T/M): 30-170
Position Accuracy ( mm ): ± 0.1
Power of Main Engine ( kw ): 2.2
Size ( mm ): 2300*1250*1500
Voltage (V ): 220
|
Model |
Max feeding
width(mm) |
Cutting
area(mm) |
Cutting
speed(T/M) |
Position
accuracy(mm) |
Power of
main engine(kw) |
Size(mm) |
Voltage(V) |
|
DP-320B |
320 |
320*300 |
30-170 |
+/_0.10 |
2.2 |
2300*1250*1500 |
220 |
|
DP-420B |
420 |
450*400 |
30-170 |
+/_0.10 |
3 |
2400*1290*1610 |
380 |
|
DP-350B |
350 |
320*300 |
30-170 |
+/_0.10 |
2.2 |
2300*1250*1500 |
220 |
|
DP-450B |
450 |
450*400 |
30-170 |
+/_0.10 |
3 |
2400*1290*1610 |
380 |
|
DP-320BIII |
320 |
320*300 |
20-170 |
+/_0.10 |
0.2 |
2300*1250*1500 |
380 |
| Prod Model: |
DP-320B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
320mm/420mm/500mm/650mmetc |
| Cutting Type: |
Wooden Mould Die Cut |
| Automatic Grade: |
Automatic |
| Placing Form Of Template: |
Horizontal |
| Imprinting Type: |
Platen |
| Application: |
Paper Packaging Materials |
| Die Cutting Tool: |
Metal Mold |
Kunshan Dapeng Precision Machinery Co., Ltd is specialized in manufacturing high precision die cutting machine, sheet cutter, slitting machine, laminating machine, belt cutting machine and related machinery equipment. Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials, insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and cap line and plastic and rubber line.
We pride ourselves in our quality manufacturing processes and professional designs. With strong technology, international quality control system and perfect after-service, our products enjoy a Good reputation at domestic and international market. We own professional technical staffs, engineers, sales and after-service employees to be a Young and high caliber team.
At "Dapeng", we are confident that our hands on approach and direct involvement with out manufacturing assures our customers' Will get the best quality products available on the market today.
