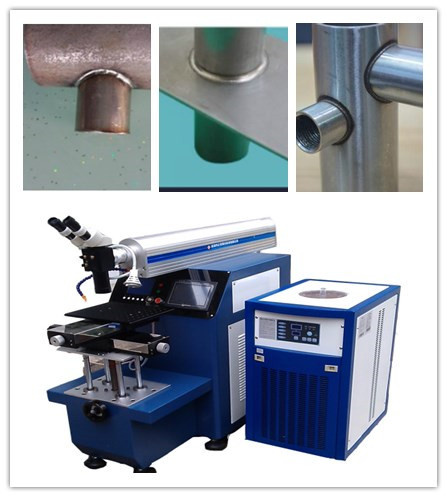

Automatic Laser Welding Machine
Price: |
US $ 7500-7700/Piece |
Trade Terms: |
FOB,CIF,others |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Applicable Material:
metals and alloys, such as Ti, Mo, Zn, Cu, steel, aluminum, chromium, niobium, gold and silver kovar alloy of the same material. It also can be used for different materials between different metal.
Applicable Industry :
mobile phone communications, electronics, watches, jewelry, metal products, precise instruments, medical equipment, auto parts etc..
Technical parameter:
Parameters/ Model | ZY- A200 | ZY- A400 |
MaxI. output power | ≤ 200W | ≤400W |
Laser wavelength | 1064nm | 1064nm |
Frequency | 1 - 40Hz | 1-40Hz |
Pulse width | 20ms | 0.1 - 20ms |
Spot adjustment range | 0.3 - 2mm | 0.3 - 2mm |
Aiming and positioning | Red cross | Red cross |
Power of refrigeration chiller | 1.5P | 3P |
Positioning accuracy | ±0.02 | ±0.02 |
The power supply voltage | 220v/50Hz/30A | 220v/50Hz/30A |
Working table stroke | 170mm*170mm | 170mm*170mm |
Size of the host | 700mm*1600mm*1300mm | 700mm*1600mm*1300mm |
Dimensions of cold water machine | 560mm*600mm*900mm | 600mm*700mm*1200mm |
Samples:
Guarantee and after sale service (0:p)
1) Guarantee for one year excluding comsumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) Your order will be shipped within 3-5 business day after payment received.
3) 24-hour technical support on internet or by telephone, free instructions and problem solving.
4) Free installation and fully test before send and free training for operators.
Please advise us the following information, then we can recommend you the most suitable model.
1. The exact material you want to process
2. The maxi. Output power you demand.
We are look forward for agency abroad.
Please feel free to contact me if you are interested in.
Prod Model: |
ZY-200W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Laser Welding Machine |
