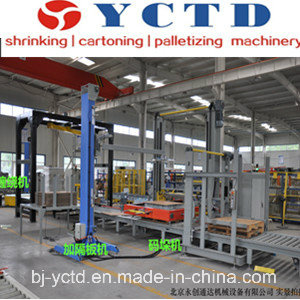

Automatic Mechnical Palletizer for Beverage Production Line (YCTD-YCMD40)
| Price: |
US $ 100000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Name :Automatic Mechnical Palletizer for Beverage Production Line (YCTD-YCMD40)
Product Model: YCMD40
Cartons input device
Cartons sorting device
Lifting & stacking devices
Automatic pallet supply device
Full stack discharge device
Safety gate device
Specification:| Capacity | 40 cases/min |
| Work air pressure | 0.6-0.8 Mpa |
| Rated power | 10 kw |
| Weight | 7500kg |
| Dimension of machine | L8000mm*W5200mm*H3200mm |
| Max loading height | 1800mm |
| Max loading weight | 1600 kg |
Characters:
Cases feeding form side, save more space , simplify transport system, save 50% Cost than robot.
Low level palletizing , Advanced layer-type palletizing design, advanced configuration, running stabley and low power consumption.
PLC control system and convert for speed control insure that cases transfer, Array, palletizing , pallet uploading, solid pallet pushing out are automatically.
Machine with high security and powerful diagnosis function,malfunction alarm and Guard to insure personal safety.
Easily to adjust for palletizing format by touch screen,No need to change parts for malfunction to finish palletizing.
| Prod Model: |
YCMD40 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Category: Cantry Palletizer: |
Work Air Pressure:0.6-0.8MPa |
| Rated Power:10kw: |
Weight:7500kg |
| Dimension Of Machine:8000*5200*3200: |
Max Loading Height:1800mm |
| Max Loading Weight:1600kg: |
Brand Name: YCTD |
| Application: Beverage: |
Place of Origin: Beijing, China (Mainland) |
| Speed:35-40cases/Min: |
After-Sales Service Provided: Engineers Available |
| National Patent Technology--Have: |
Supply:380V, 3-Phase-5-Line |
| Certification: ISO9001: |
Manufacture: Yes |
| Model: Ycmd40: |
Pallet Way: Automatic |
| Can Have Clapboard: |
Pallet Height: 1800mm |
| Composition: |
Packaging Equipment |
| Processing Material: |
Special Agricultural Products |
| Process: |
Palletizer |
Beijing Y. C. T. D. Packaging Machinery Co., Ltd. is a high-tech enterprise which focuses on drinks secondary packaging line; Founded in 2001, the registered trademark "YCTD. " The company headquarters is located in Beijing Daxing Yufa industrial zone, near the Da-Guang high-speed, Lang-zhuo high-speed; And it is adjacent to the capital second airport, convenient transportation.
We are one of the biggest Shrink Packing Machine/Carton Wrapping Machine/Pallletizer solution providers, which has complete ability of technology development, product design, manufacturing, service of pre-sales and after. The company has more than 200 staff, professional and technical staff of nearly 50 people.
It has passed ISO9001: 2000 international quality management system certification, European CE certified national safety standards. And has 20 national patents packaging machines. As a member of China Packaging Federation, China Light Industry Federation governing units, the China Beverage Industry Association, China Brewing Industry Association, We are the members of China Packaging Federation, and for 3 consecutive years as Beijing trustworthy company. Product market share is ahead.
The products are widely used in beer, beverage, pure water, mineral water, fruit juice, dairy product and condiment, etc. Already have become Huiyuan Group, Coca-Cola, Dali Group, United Group, Master Kong, Harbin Pharmaceutical Group, Tsingtao Beer, Wong Lo Kat and other well-known brands trusted partner of packaging equipment; Shrink packing machine, carton wrapping machine, palletizer and other turn-key project products have been exported to more than 60 countries and regions in North America, South America, Africa, Europe, the Middle East and so on.
We successfully cooperate with many famous enterprises, which received widely trust from the users with found industry experience, which is a true famous brand in the industry of thermal shrink packing with strong competition.
March 2014 the company name voted to build a new base in Handan 200 acres, is expected to formally put into use in 2015; So far, our company has two research and development, manufacturing plants, covers an area of over 150, 000 square meters, the new plant will become the second largest drinks packaging machinery R & D and manufacturing base in China, not only can achieve large-scale production, reduce costs and shorten delivery time; Equipped with better after sales service team, which allows the company to provide our clients with better products, more efficient services and have more reliable protection.
YCTD--Chinese drinks secondary packaging professional solution provider!
YCTD--Innovative packaging for you, win products new profits!
