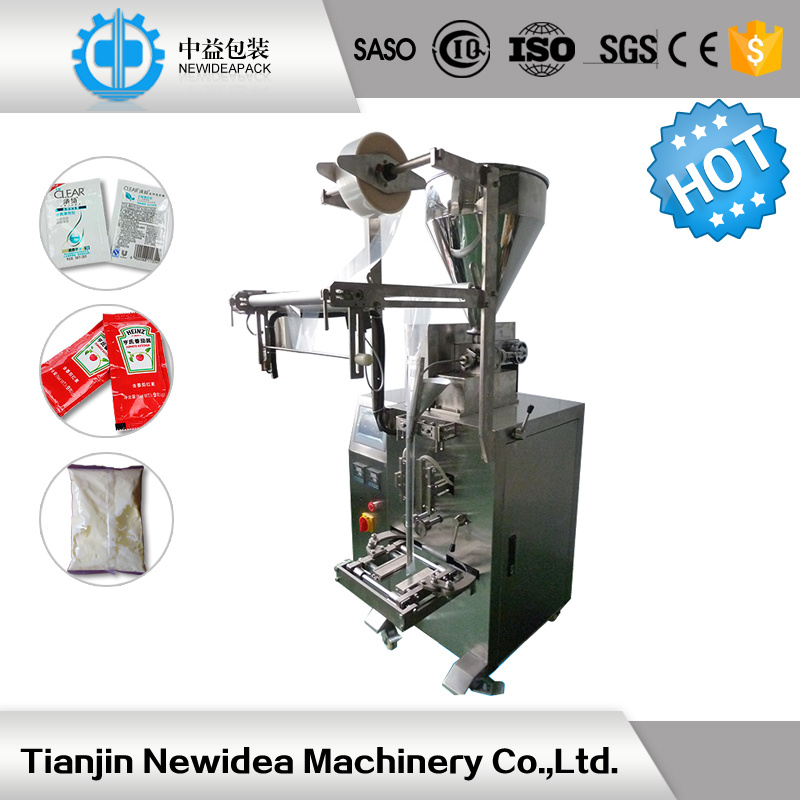

Automatic Mini Pillow Sealing Paste Packing Machinery (ND-J320)
ND-J320:
1.ND-J320 is Automatic Blueberry Sauce Packing Machine ,include three types (ND-J320I,ND-J320II,ND-
J320III).
2. The machine autocratically finish the function of bag making, measuring, filling,sealing, code, counting
etc.
3. Packing material are heat-sealed composite membrane coils, lower cost than other materials.
4. Using plunger pump measuring and filling materials,changing the volume of product by adjust the
plunger lift,then fill into the bags,error keeps within 1%. At last,finish the bags through former and
horizontal & vertical sealer.
5. Suit for packing paste product that volume around 5-300ml.
6. Machine can pack continuous bags,and cut off the bag when a certain number.
7. Easy tear function can be added as customer's requirement.
Automatic Paste Packing Machine ND-J320 | Features:
1. Measuring system adopt piston pump measuring system, which is used to adjust material content
during operation of the machine.
2. Adopt Delta/Siemens PLC or Micro computer and touchable screen,Chinese and English surface.
3. Equipped with Schneider frequency converter, just input number to change the whole speed, easy for
operation.
4. Use double heating tubes to guarantee stable temperature and perfect sealing surface, intelligent
temperature controller, and stable color mark tracking system,increase the cutting precision.
5. All the work of bag making, measuring, filling, sealing, cutting, counting,heat-printing codes can be
done automatically.
6. High output 3000-5000 bag/hour,good labor and power saver. the continuous running make it very high
efficiency.
Optional Accessories:
Piston Pump Bag Former Heating-double Layer Hopper
Coding Machine Stirrer Finish Product Conveyor
Feeding Machine Metal Detector
Automatic Paste Packing Machine ND-J320 | Parameters:
Type | Bag Length (mm) | Bag Width (mm) | Packing Speed (Bag/hour) | Measuring Range(ml) | Voltage Power | Weight (kg) | Size (mm) | Sealing Methods |
ND-J40 | 55-110 | 30-80 | 2400-4800 | 5-40 | 220V/50/60Hz/ 1.8Kw | 300 | 850*790*1800 | 3 /4 Sealing |
ND-J150 | 80-140 | 30-80 | 2400-4200 | 30-150 | 220V/50/60Hz/ 1.8Kw | 300 | 850*790*1800 | 3/4 Sealing |
ND-J320I | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/ 2.0Kw | 300 | 950*700*1800 | Pillow sealing |
ND-J320II | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/ 2.0Kw | 320 | 950*850*1900 | 3 Sides sealing |
ND-J320III | 40-160 | 15-150 | 3000-5400 | 5-300 | 220V/50/60Hz/ 2.0Kw | 350 | 950*850*1900 | 4 Sides sealing |
ND-J398 | 30-320 | 70-210 | 1800-3600 | 100-1200 | 220V/50/60Hz/ 1.8Kw | 350 | 1200*900*2000 | Standard pillow bag |
ND-J420 | 80-300 | 50-200 | 300-3000 | Max 1200 | 220V/50/60Hz/ 2.2Kw | 540 | 1320*950*1360 | Pillow bag/Gusset bag/Box bag Pillow bag with punch hole Gusset bag with punch hole |
ND-J520 | 100-400 | 80-250 | 300-3000 | Max 3000 | 220V/50/60Hz/ 4.0Kw | 600 | 1150*1795*1650 |
ND-J720 | 100-480 | 180-320 | 300-3000 | Max 6000 | 220V/50/60Hz/ 5.0Kw | 900 | 1320*950*1360 |
Automatic Paste Packing Machine ND-J320 | Why Choose US:
1.8 years manufacture experience,strong R&D department.
2.Exported to more than 1000 customers from more than 50 countries.
3.We promiss machine keep working over 10 years in good working condition.Fewer easy
broken parts,easy to change.
4.Intelligent PLC control system,easy operate,more hommization.
5.One year guarantee time,lifelong free service,24 hours online service.
6.High output 3000-5000 bags/hour,save energy & labor.
7.OEM,ODM and customized service.
8.CE ISO BV GMP certificates.
Machine packing inside is plastic films and outside is fumigation wooden case.
Long time cooperation is needed:
Newidea is still developing,and the products are also being innovated.Welcome our old and new customers to visit our factory and make the consultation.We will provide professional packaging solutions for you.
Tianjin Newidea Machinery Co. Ltd was established in 2006, located in Tianjin High-Tech Industrial District, Tianjin, China, about 120 kilometers away from Beijing Airport. Since Newidea was established, we are engaged in improving the quality of the bag packaging products. We aim at making the environmental and healthy bag package. Through 6 years developing, Newidea has become a professional supplier for packing machine from researching, manufacturing to selling.
According to the type of the machine, our products include mini packing machine and the automatic packing system line, consisting of five series products, granule packing machine, powder packing machine, paste packing machine, liquid packing machine, tea packing machine. The machines are suitable for food industry, medicine industry, chemical industry, hardware industry etc. Which need the bag packaging. In food industry, such as packing coffee, sugar, tea, snacks, ketchup etc. In medicine industry, such as packing tablets, particles etc. In chemical industry, such as packing shampoo etc. In hardware industry, such as packing rivets etc.
Relying on our professional technique development, strict assembling team, and perfect after-sales service, we have successfully exported our products to more than 40 countries and win much more reputation from our customers. Till now, we had ever served more than 300 customers and had build up the distribution net in Eastern Europ, MID-East, MID & North America etc. We believe that the responsibility of our Newidea People pass on the value of honest operating business.
Newidea is still developing, and the products are also being innovated. Welcome our old and new customers to visit our factory and make the consultation. We will provide our professional packaging solutions for you
