Product Specifications
| Prod Model: |
WD-150A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

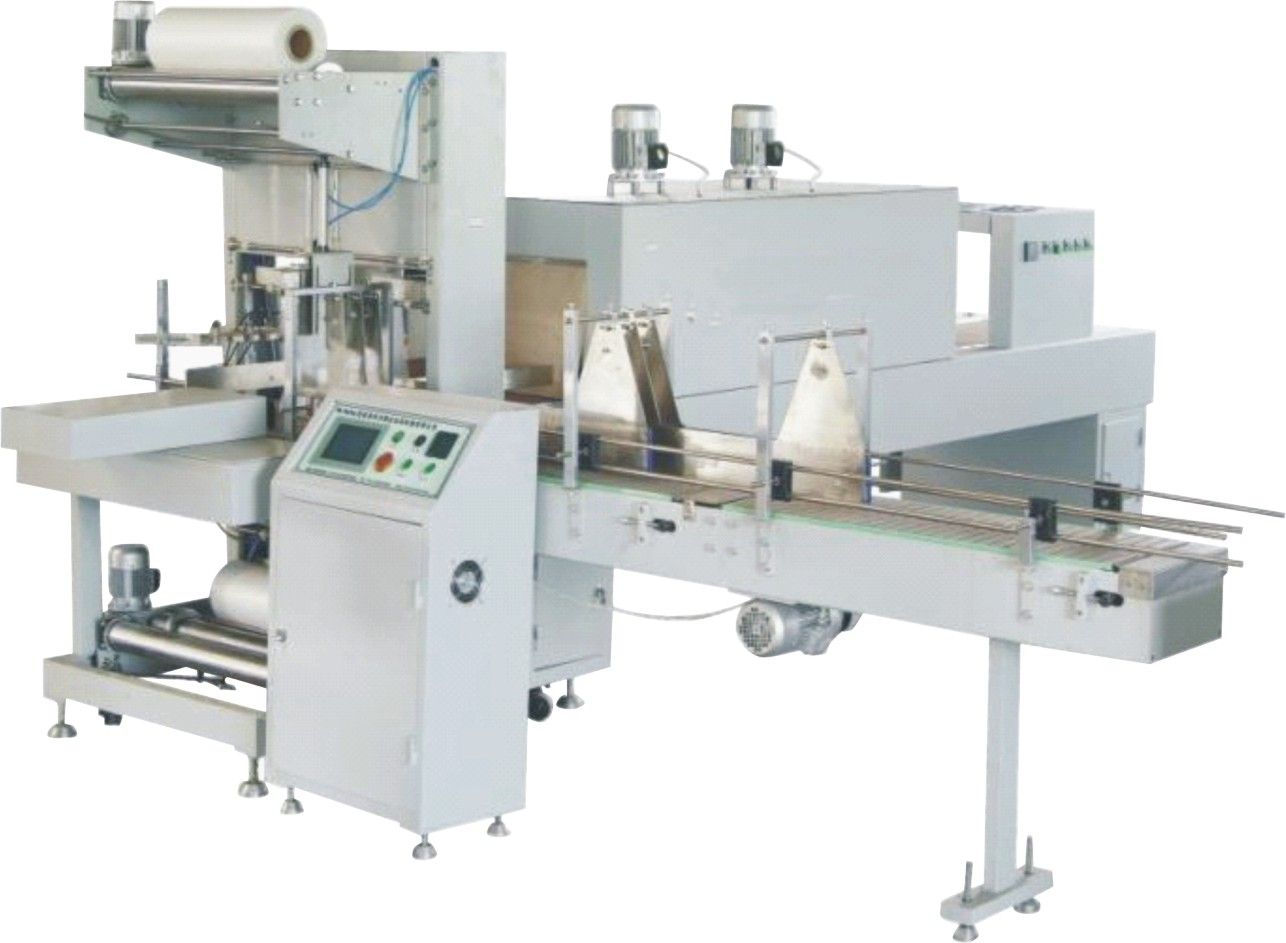

Full automatic shrink wrap packing machine
The specialty of the machine:
1. Full-automatic
2. Adjustable production speed
3. Design for variety bottle 330ml-2L
4. Have CE certificate
5. Warranty period; 18 months
6. Auto Shrink-Wrapping Packing Machine
7. For packing plastic bottle/glass bottle/cans/beverage
8. Meet filling line
9...PE. PP PVC. POF film packing
Features
1. Applying imported PLC procedure automatic control, stable performance, and accurate control.
2. Enjoying full-automatic function of feeding, tube management, shrinkage, and cooling shape-fixing flow.
3. Film transportation is adopted with sensor switch control, adjustable deliver film lentgh, and can reduce wastage.
4. Elector motor is adopted with imported transducer to control, realizing unlimited speed regulating.
5. Advanced spiral wind circulating structure, three-layer insulation treatment, and enrgy conservation.
6. Reinforced cooling shage-fixing channel to ensure packaging products shape quickly and convenient storage and transportation
4 To meet the filling machine speed.
(1) 350/500/550/600ML--Big package: 4 × 6, 4 × 5, (12000-15000 bottles / hour), Small package: 3 × 5, 3× 4, (8000-10000 bottles / hour).
(2) 1L/1.5L/2L--Big package: 3 × 4, 3 × 3 (5000-6000 bottles / hour), Small package: 2 × 3, 2 × 2 (3000-4000 bottles / hour).
5 packaging materials: PE shrink film width (200-600mm), thickness (0.08-0.12mm)
Standard functions: (three parts)
1, Automatic transmission organizations; Butt filling machine conveyor belt, two levels, or a transmission, the drive control, speed adjustable, can be automatic bottle.
2, Automatic envelope sealing body to complete the set automatically by the packaging film and sealing functions.
3, Automatic thermal cooling mechanism; Can automatically after the completion of mantle contraction and cooling.
Packing Type:
A)300-600ml: Big package: 4× 6, 4× 5; Small package: 3× 4, 3× 5.
B) 700-2000ml: Big package: 3× 3, 3× 4; Small package: 2× 2, 2× 3
JIANGMEN GREENFALL WATER TREATMENT TECHNOLOGY Co., Ltd Located in China's first overseas Chinese of JIANGMEN. Since 1996 the company since its establishment, our factory purpose is improve water quality, benefit of humanity, fervor-self, contributing to society.
Our factory manufacture complete water plant equipment. Include injection machine, blowing bottle machine, water treatment equipment, ozone system,
Filling machine, labeling machine, packing machine and palletizer etc.
As one of the leading manufacturers in drinking water treatment and bottled water engineering (covering water dispensers) in China, we are pursuing good reputation in the global market also. Our products are selling well in Canada, French, USA, Japan, Korean, Russia and Indonesia. And we have more customers from USA, Mexico, Ecuador, Australia, Singapore, Thailand and Brunei. We have a good beginning in most of African countries.
The main products of the company
1, 2000BPH---20000BPH hot liquid filling, middle temperature beverage production line
2, 2000BPH---36000BPH Mineral water and purify water production line
3, 2000BPH---20000BPH Gas beverage production line(PET, glass bottle)
4, 2000BPH---12000BPH Glass bottle wine complete production line
5, 2000BPH---20000BPH Pulp beverage mixed filling machine
6, 60BPH---1200BPH barrel mineral water, purify water production line
Plastic injection machine, Blowing bottle machine, Mould etc
Bottle unscrambler, Labeling machine, Shrink packaging machine, etc
Ozone system, ultraviolet sterilization system, air shower, laboratory equipment etc
Purified Water Treatment Equipment, Mineral Water Treatment Equipment, Seawater treatment Equipment, Brackish Water Treatment Equipment, etc.
Providing "Quality Products, Excellent Service, Competitive Prices and Prompt Delivery", we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in our products, please feel free to contact us for more information.
