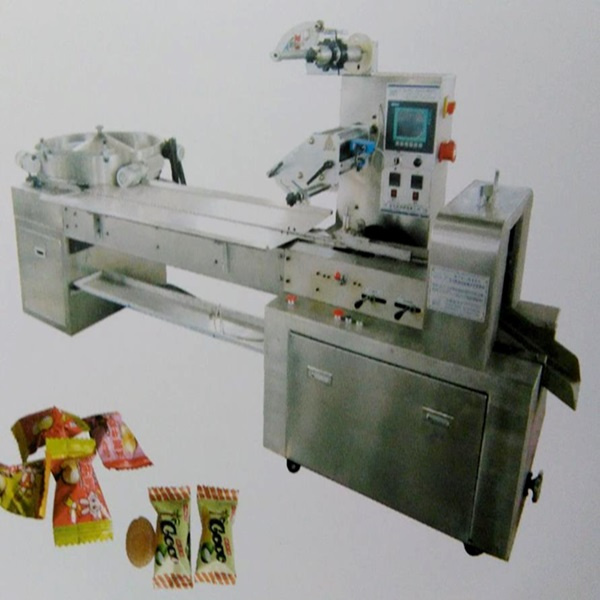

Automatic Packaging Machine
Characteristics:
1. Double transducer control(can use servomotor), flexible bag length, operator needn't to adjust the unloading working, saving time and films
2. Human-machine operation, convenient and quick parameter setting
3. Self diagnosis failure function, clear failure display
4. High sensitivity optical electric color mark tracking, digital input cut position whigh makes the sealing and cutting more accurate
5. Separeate PID control to temperature, suitable for various packing materials
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film
7. Simple driving system, reliable working, convenient maintenance
8. All the controls are achieved by software, convenient for function adjusting and upgrading
Technical Parameters:
| Model | SH-250B/D | SH-320B/D | SH-350B/D | SH-450 | SH-550 |
| Film Width | Max.250mm | Max.320mm | Max.250mm | Max.250mm | Max.250mm |
| Bag Length | 65-190/120-280/90-220mm | 65-190/120-280/90-220/150-330mm | 65-190/120-280/90-220/150-330mm | 130-450mm | 130-450mm |
| Bag Width | 30-110mm | 50-160mm | 50-160mm | 60-200mm | 60-260mm |
| Product Height | Max.40mm/Max.55mm | Max.40mm/Max.55mm | Max.40mm/Max.60mm | Max.80mm | Max.80mm |
| Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | Max.320mm | Max.320mm |
| Power | 220v 50/60Hz 2.4kw | 220v 50/60Hz 2.6kw | 220v 50/60Hz 2.6kw | 220v 50/60Hz 2.6kw | 220v 50/60Hz 2.6kw |
| Packaging Rate | 40-230bag/min | 40-230bag/min | 40-230bag/min | 30-180bag/min | 30-180bag/min |
| Machine Size | (L)3770*(W)670*(H)1450mm | (L)3770*(W)720*(H)1450mm | (L)4020*(W)770*(H)1450mm | (L)4020*(W)920*(H)1450mm | (L)4020*(W)920*(H)1450mm |
| Machine Quality | 450kg | 480kg | 540kg | 750kg | 800kg |
| Remarks | Optional Filling Device |
Packaging & Shipping
Port: XINGANG, SHANGHAI, QINGDAO
Delivery time: Depending on your orders and mechanical models
Payment term: 30% T/T in advance for deposit, the balance against the copy of the B/L
Packaging: Single-layer and multi-layer heat sealing materials, such as OPP, CPP, PET aluminum-plated film, aluminum plastic film, paper plastics, paper adhesi, and wooden packing
Our Services
1.We will provide guarantee of the equipment permanently whatever within guarantee period or not, we will react during 48 hours after received the fax required to ensure the recovery of buyer's production line first.
2.We will despatch engineers to working place of buyer and guide the workers to install and operate the equipment, and to install the water,electric appliance,and steam connecting with the machine, the buyer should pay the technicians return fly tickets and visa and accommodation and food with 30usd/day allowance.
4.We will dispatch the professional to help buyer major fixing.
5. We will provide the parts of equipment permanently based on the principle of reasonable price and quick delivery to guarantee the machine's function in normal.
6.We will provide the technical guiding and support.
Company Information
Hebei Saiheng foodstuff machine Co.,Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine. The company's main products: biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment. "Good quality is the key to survive, Good credit standing is the key to develop" is the enterprise purpose of SaiHeng. With the management philosophy of "quality, service, innovation", under the efforts of SaiHeng people, the company achieves a rapid improvement in sales value year after year. The company's products are exported to Britain, Japan, Ireland, France, Africa and other parts of the world.
Nowadays, food safety is becoming a more and more serious problem, China's food machinery equipment upgrading has become a big trend. On the existing technology, Our company constantly introducing foreign advanced technology and continue innovation to make the company's produced equipment gradually in the leading level in the food machinery industry at home and abroad. The whole production line operation, improves the degree of automation, reduces the repair rate, and the production has improved a lot.
Excellent staff, advanced technology, high quality equipment, strict management, all these make the company continues to growing and products win trusts from all users. In the long process of excellent product quality development, excellent product performance, leading-edge technology, we have established long-term partnership with many large domestic and foreign enterprises. We also warmly welcome all customers to visit our company and to exchange technical information.
Shenghua Group Hebei Saiheng Food Processing Equipment Co., Ltd is an industrial company with rich experience, specializing in the manufacturing of various types of food machine. The company's main products: Biscuit production line, cake production line, candy production line, chocolate production line, various kinds of pastry equipment and food packaging equipment. "Good quality is the key to survive, Good credit standing is the key to develop" is the enterprise purpose of SaiHeng. With the management philosophy of "quality, service, innovation", under the efforts of SaiHeng people, the company achieves a rapid improvement in sales value year after year. The company's products are exported to Britain, Japan, Ireland, France, Africa and other parts of the world.
