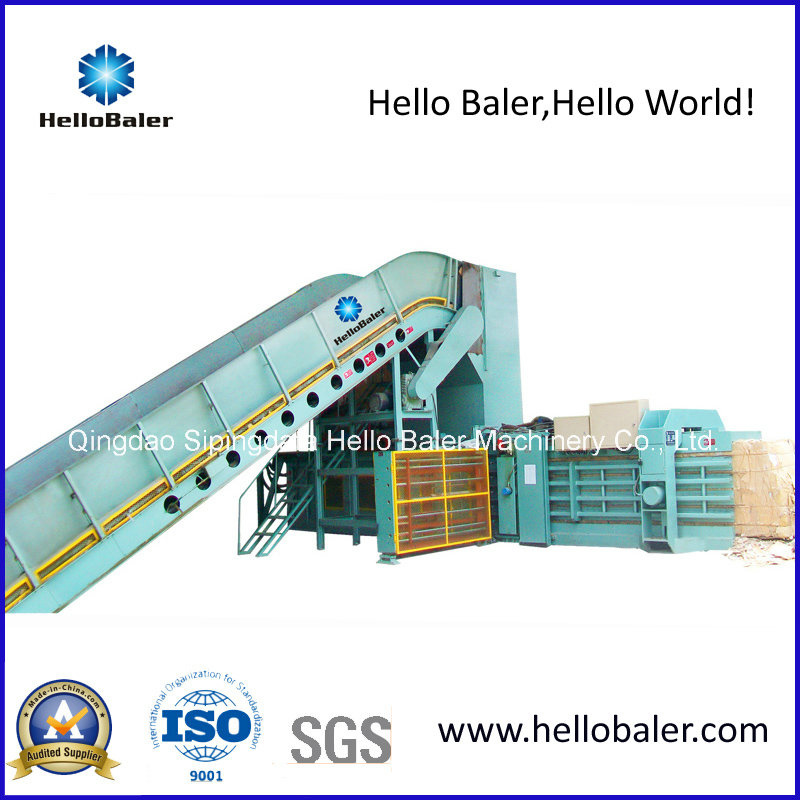

Automatic Paper Packing Machinery (HFA10-14)

Name: Automatic Paper Packing Machinery (HFA10-14)
Brand: china-manufacturer-directory.com
SKU: 690631002
Availability: InStock
Rating: 5 (31 reviews)

Price:	US $ 73800-78800set
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Model/Data: HFA10-14
Bale Size(L*W*H): 1600*1100*850(Length Is Adjustable)
Cylinder: Φ 250
Pressing Force: 1000kn
Cycle Time: 24s
Density: 500-550kg/M3
Bale Weight: 750+-50kg/Bale
Capacity: 10-14t/H
Feed Opening: 2000*1100mm
Power: 37*2sets+5.5+7.5kw
Machine Weight: 25t

- Three hydraulic cylinders clamping increase bales density and make bales tighter and neater;
- Equipped with cooling system to prevent high temperature of the oil;
- Swing-away 5-wire tie automatically inserts and tie on the same side;
- Counter wheel count the rated length of the bales automatically;

HelloBaler's Mission
HelloBaler will bring the highest quality with lower price balers to all over the world customers!
HelloBaler will bale all love and responsibilities to all over the world customers!

HelloBaler Automatic Balers HFA Series

Model/Data		HFA20-25	HFA13-20	HFA10-14
Bale size (L×W×H)	mm	1600×1100×1250 Length is adjustable	1600×1100×1250 Length is adjustable	1600×1100×850 Length is adjustable
Cylinder		Φ280	Φ280	Φ250
Pressing Force	KN	1200	1200	1000
Cycle Time	s	18	24	24
Density	kg/m 3	500-550	450-500	500-550
Bale Weight	kg/bale	1100±100	900-1000	750±50
Capacity	t/h	20-25	13-20	10-14
Feed Opening	mm	2000×1100	2000×1100	2000×1100
Wire	line	5	5	4
Power	KW	45×3sets+5.5+11	45×2sets+5.5+7.5	37×2sets+5.5+7.5
Machine Weight	T	33	28	25
Materials		Waste paper, Cardboard, Newspaper, Magazine, Tissue, Plastic, etc.

Prod Model:	HFA10-14
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Frame:	Heavy Duty Welded by Q234 Steel Plate
Clamping Cylinder:	3
Touching Screen:	Yes
PLC:	Yes
Reeling&Wire Feeding:	Yes
Cooling System:	Yes
Counting Wheel:	Yes
Frequency Converter:	Yes
Conveyor:	Yes
Brand Name:	Hellobaler
Automatic Grade:	Automatic
Strapping Mode:	Welding Type
Driven Type:	Hydraulic
Structure:	Pressure Strapping
Application:	Waste Paper,Cardboard,Plastic Bottles,
Strapping Material:	Iron Wire
Packaging Type:	Bale

We Qingdao SPDF Hello Baler Machinery Co., Ltd, located in Qingdao, Shandong Province, China. Our factory is a professional baler manufacturer in China since 1986. With 28 years developments, nowadays, we have already been the biggest baler manufacturer in China with more than 200, 000 square meters worker shop. At 2012, we expand our business to worldwide markets, with two years developments, we get more and more worldwide customers cause our baler good quality and economic price.

Our main product is automatic baler, semi-automatic baler and manual baler etc, our baler can bale waste, paper, straw, hay, textile etc. All the baler have CE, SGS, ISO9001 Certificate. Our baler machine is very popular in China, the reputation is more than 65% in China market. Our baler is well known and popular in South Africa, South America, Brazil and Russian etc. We strongly believe "Hellobaler" will be very popular and bright in fulture!

Our company culture: Unit, Harmony, Spurt, Professional, Efficient, Promise. Welcome worldwide Cabable Agents Join Hello Baler Team!

Hello Baler, Hello World!
