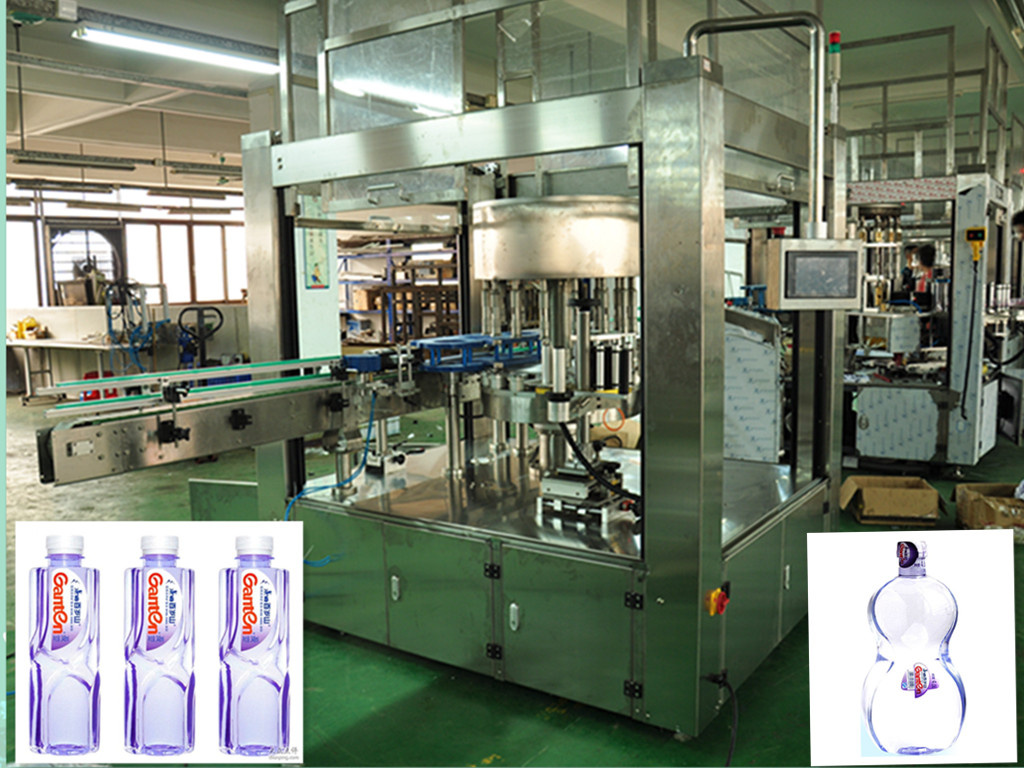

1. Introduction
Automatic Rotary Self-Adhesive/ Sticker Positioning Labeling Machine, which is widely used in beverages, washing, food and other industries, is designed by the excellent engineers and is manufactured by workers in the factory of UJUNR.
2. Function
Paste the labels that the user chooses on the flat bottle, oval bottle and irregular bottle.
3. Application
The machine suits for the application of cosmetic, food, medicine and other industries.
4. Components
1) Screw Stem, Star wheel & Bracket
Through changing the feeding screw stem, the star-wheel and the bracket, the machine can be applicable for high-speed labeling for various types of bottles.
2) Bottle Sensor
The bottle sensor is free outside signal disturbance such as outside light or ultrasonic with exact verification to ensure accuracy of labeling.
3) Label Station
The Label station is applicable for adjusting label location and stability of labeling.
4) Label Smoothing Mechanism
The label smoothing mechanism is applicable for leveling the label, which can paste the label firmer and prevent it from corrugating and loosing.
5. Technical parameters:
|
Power supply |
Three-phase 380V 50 Hz 8000W |
|
Machine dimension |
3000mmx 2500mm x 2000mm |
|
The method of speed adjustment |
uninterrupted- adjust rate |
|
The largest Speed of labels feed |
max speed of 150 meters labels / min |
|
Labeling accuracy |
± 1mm |
|
Maximum label width |
130mm |
|
The maximum length of label |
500mm |
|
The maximum diameter of label |
600mm |
|
Paper core diameter |
152 mm |
|
Type of label |
sticker label |
|
Labeling workstation |
One Labeling head
12 per cycle ULBL-12091R 9000BPH
16 per cycle ULB-16151R 15000BPH
20 per cycle ULB-20181R 18000BPH
Two Labeling head
16 per cycle ULB-16152R 15000BPH
20 per cycle ULB-20182R 18000BPH
Three Labeling head
16 per cycle ULB-16153R 15000BPH
20 per cycle ULB-20183R 18000BPH |
|
Max labeling speed |
24000BPH |
