Product Specifications
| Prod Model: |
CGFD series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Automatic Soft Carbonated 3 in 1 Drink Filling Mac |
| Capacity: |
1200~12000bph |
| Material: |
Ss304 |
| Control: |
PLC Touch Screen |
| Touch Screen: |
Siemens |
| Cap Style: |
Plastic Screw Cap |
| Factory Location: |
2 Hours From Shanghai |
| Processing Type: |
3 in 1 Filling Machine |
| Suitable Bottle: |
Pet Bottle |
| Warranty: |
1 Year for Pare Parts |
| Type: |
Volumetric Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Liquid |
| Filling Valve Head: |
Multi-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Surface Type |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bottle |
| Packaging Material: |
Plastic |
Product Description

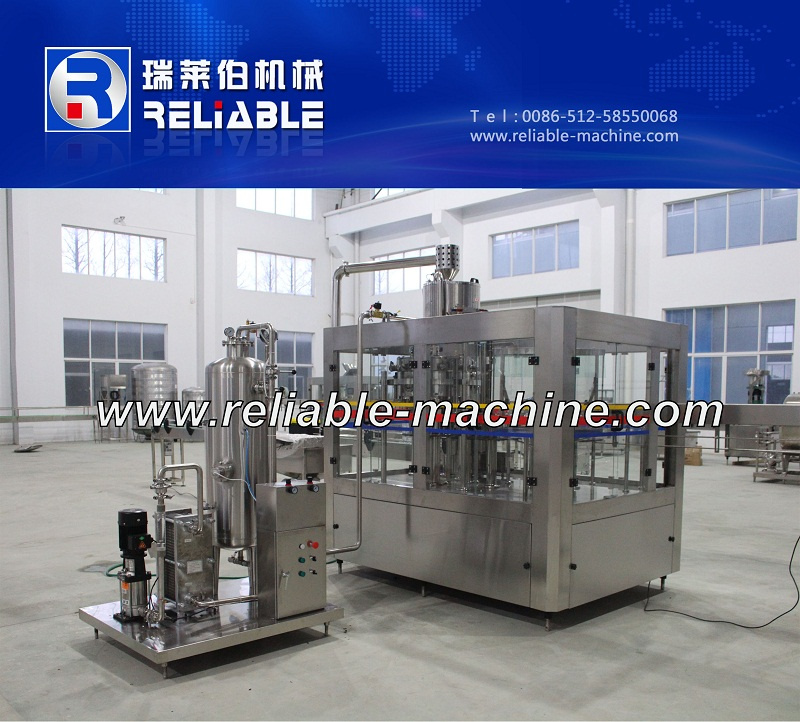

Automatic Soft Carbonated 3 in 1 Drink Filling Machine
Description
.DCGF18-18-6 is designed by our professional team. This 3 in 1 rinsing, filling, capping machine is a new kind of carbonated drink filling machine which is suitable for 250~1500ml bottles. Here are some features of it:
1. This kind of machine's capacity is 1200~12000bph.
2. Years of practice experience and foreign advanced technology are important for the production of the machine.
3. It accepts different customers' suggestions all around the world. Different bottle shapes produced in one machine meets clients' different demands.
4. This machine adopts hanging card bottleneck structure which makes it more convenient and worthwhile to meet the different demands of all kinds of bottles.
5. Bottles are sent, rinsed, dried, filled and caps are sent, screwed automatically by wind.
6. It won't cap without bottles or full water in bottles.
7. Advanced PLC and speed control system are also used in it .
8. It becomes more easy and understandable to operate by HMI touch screen.
Technical Data
| Model | CGFD
8-8-3 | CGFD
16-12-6 | CGFD
18-18-6 | CGFD
24-24-8 | CGFD
32-32-10 | CGFD
40-40-10 |
| Rinsing Head No | 8 | 16 | 18 | 24 | 32 | 40 |
| Filling Head No | 8 | 12 | 18 | 24 | 32 | 40 |
| Capping Head No | 3 | 6 | 6 | 8 | 10 | 12/10 |
| RatedCapacity | 1200-1500BPH | 2500BPH | 3500-4000BPH | 7000-7500BPH | 8000-10000BPH | 10000-12000BPH |
| Overall Size | 2000*1600*2300mm | 2200*1600*2300mm | 2450*1900*2300mm | 2750*2180*2400mm | 4000*2300*2300m | 4550*2650*2300mm |
| Weight | 2T | 2.2T | 3.0T | 4.0T | 8.0T | 12.0T |
| Power(KW) | 3KW | 3.5kw | 4.0kw | 4.8kw | 7.6kw | 8.3Kw |
| Rated Voltage | 380V | 380V | 380V | 380V | 380V | 380V |
Company Information
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
RELIABLE Service
The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.
