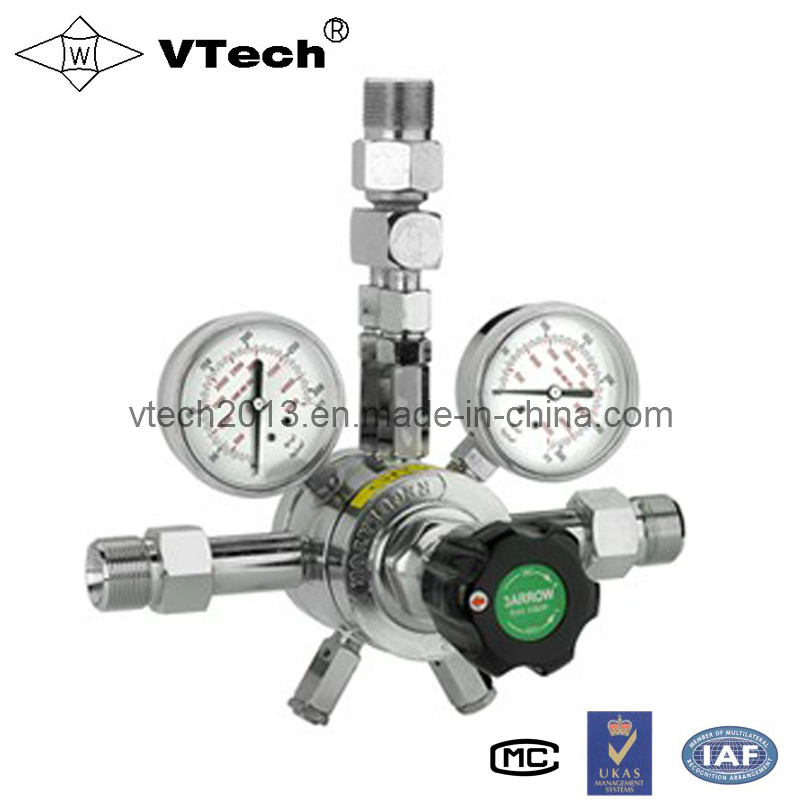

Product Specifications
| Prod Model: |
GR-CH-315K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| For Gas: |
Oxygen |
| Gauge: |
315 Kg/Cm² |
| Inlet Connection: |
W22-14 Rh |
| Outlet Connection: |
W22-14 Rh |
| Package: |
12PCS/CTN |
| Display: |
Pointer |
| Function: |
Electric Signal-controlled |
| Accuracy: |
0.16 |
| Indicating Pressure Reference: |
Differential Pressure Gauge |
| Application: |
Industrial |
| Measuring Range: |
High-pressure Gauge |
Product Description
Features:
The system is automatic switching, both sides of supply at the same time, a party is exhausted, automatically switching to another party for supply, the supply must be replaced after the knob to alternate air source end.
[The main material]
Regulator bodyC3771BE
Regulator coverC3771BE
Seat PTFE
Diaphragm NBR
Note:
1. Always specify model number and gas when ordering.
2. Inlet and outlet connection will be supplied to suit your requirement.
3. The safety relief valve is available if request.
VTech--------To meet stronger!
Model |
For gas |
Gauge |
Inlet connection |
Outlet connection |
|
GR-CH-315K |
Oxygen |
315 kg/cm² |
W22-14 RH |
W22-14 RH |
