Product Specifications
| Prod Model: |
FM-1325ATC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
1540*2640 |
| Working Size: |
1300×2500×300mm |
| Spindle Power: |
Italy 7.5kw Atc Spindle Motor Cooling by Fan |
| Spindle Rotate: |
6000~18000rpm |
| Motion Speed: |
50m/Min |
| Dictate Format: |
G-Code |
| Tools Change Mode: |
Circular Auto Tool Change System |
| Table Surface: |
Vacuum and Tslot Combined |
| Frame: |
Welded Steel Tube Structure |
| Operating System: |
Syntec Control System |
| Controlling Mode: |
CNC |
| Feed Mode: |
Manual |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Spindle Over |
| Certification: |
SGS |
Product Description

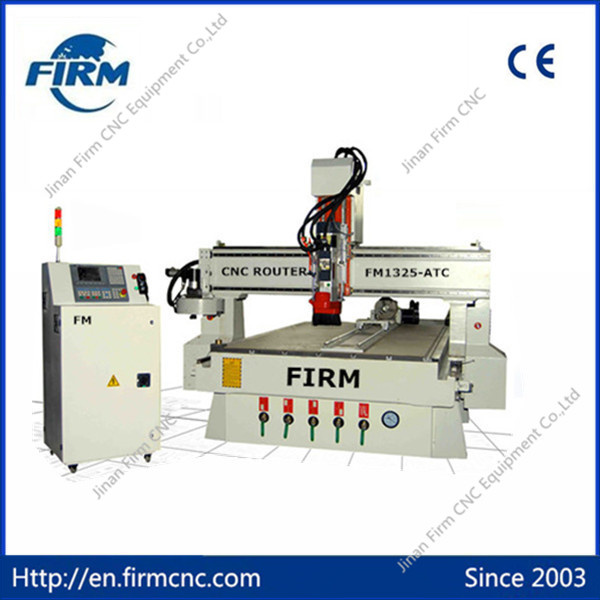

Automatic Tool Change CNC Woodworking Machine
Features:
1. Industrial frame, much solid rigidity.
2. Imported advance controlling system, split keyboard control more function to meet your various requirement.
3. Support all G-code to dictate format, compatible with international CAD/CAM software like castmate/UG/ Proe, etc
4. Taiwan Hiwin liner rail.
5. Imported high speed, mute rolling ball screw transmitting system, ensure processing in high accuracy, and the running speed up to 50m/min.
6. Imported AC power supply servo driving system from Japan.
7. Italy high power ATC spindle motor, high efficiency, long lifetime, easy to complete processing kinds of complex work piece.
8. RH model configured with circular auto tool change system standard configure with 8 pcs tools, 10 and 12pcs tools is optional.
9. LH model configured with liner auto tool change system, standard configure with 6 pcs and 10 pcs tool is optional.
Application:
Applicable to process various Wooden products, Like solid wood furniture and solid wood door, decorative panel, computer desk, office furniture, sign plates, acrylic cutting, , Vacuum plastic moulds, as well as many metal or non-metal materials as copper, aluminum plates.
Packaging & Shipping
CNC Woodworking Machine
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Our Services
CNC Woodworking Machine
# Two year warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours
Company Information
CNC Woodworking Machine
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
FAQ
CNC Woodworking Machine
Question 1: How long about the machine's guarantee?
Answer: 2 year
Question 2: How about your after service?
Answer: Technical support by phone, e-mail or MSN around the clock.
Question 3: How can we install the machine?
Answer: Friendly English version manual and operation video CD disk.
Question 4: How about the payment terms?
Answer: 30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
Question: Do You Arrange Shipment For The Machines?
Answer: Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Tina
Jinan Firm CNC Equipment Co., Ltd
Add: Jingliu road, Jinan City Shandong province, China
Tel: 0086-531- 69986330 Mobile: +8613245301243
Skype number: Firmcnc2
Website: http://en.firmcnc.com
| No. | Description | parameter |
| 1 | XYZ working area | 1300mm*2500mm*200mm |
| 2 | Table size | 1450mm*2940mm |
| 3 | XYZ travel positioning accuracy | ±0.03/300 |
| 4 | XYZ Repositioning positioning accury | ±0.03mm |
| 5 | Table surface | Vacuum and Tslot combined |
| 6 | frame | Welded steel tube structure |
| 7 | drive system X-Y axis | Rack and pinion,Hiwin linear rail bearing |
| 8 | drive system Z axis | Hiwin linear rail and bearing Ball screw |
| 9 | Max power consumption | 3.5KW without spindle |
| 10 | Max velocity | 30000mm/min |
| 11 | Max working speed | 25000mm/min |
| 12 | Spindle speed | 24000RPM |
| 13 | Drive mode | 850w Yaskawa servo system |
| 14 | Working voltage | AC380V/50/60Hz,3Phs(Options;220V,3Phs) |
| 15 | Command language | G code |
| 16 | Interface | USB |
| 17 | Operating system | Syntec control system |
| 18 | Flash memory | 128M |
| 19 | X-Y resolution | <0.03mm |
| 20 | Software environment | Wentai, type3, artcam |
| 21 | Running environment | Temperature:0-45 |
| 22 | Paking size | 3300mm*1900mm*1800mm |
| 23 | Net weight | 1750KG |
| 24 | Gross weight | 1980KG |
