Product Specifications
| Prod Model: |
SGB630-Z205F |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Function: |
Bag Forming & Weighing & Sealing & Print & Filling |
| Weighing Range: |
100-500g, 500-3000g |
| Brand: |
Sg-Packaging |
| Automatic Grade: |
Automatic |
| Packaging Material: |
Film |
| Driven Type: |
Pneumatic & Motor |
| Material Type: |
Granular/Micro-Granular |
| Applicable Industry: |
Food/Fertilizer/Chemical |
| Application: |
Food, Grains, Beans, Coffee, Detergent Powder etc |
| Packaging Type: |
Bag/Pouch/Sachet |
Product Description
Application:

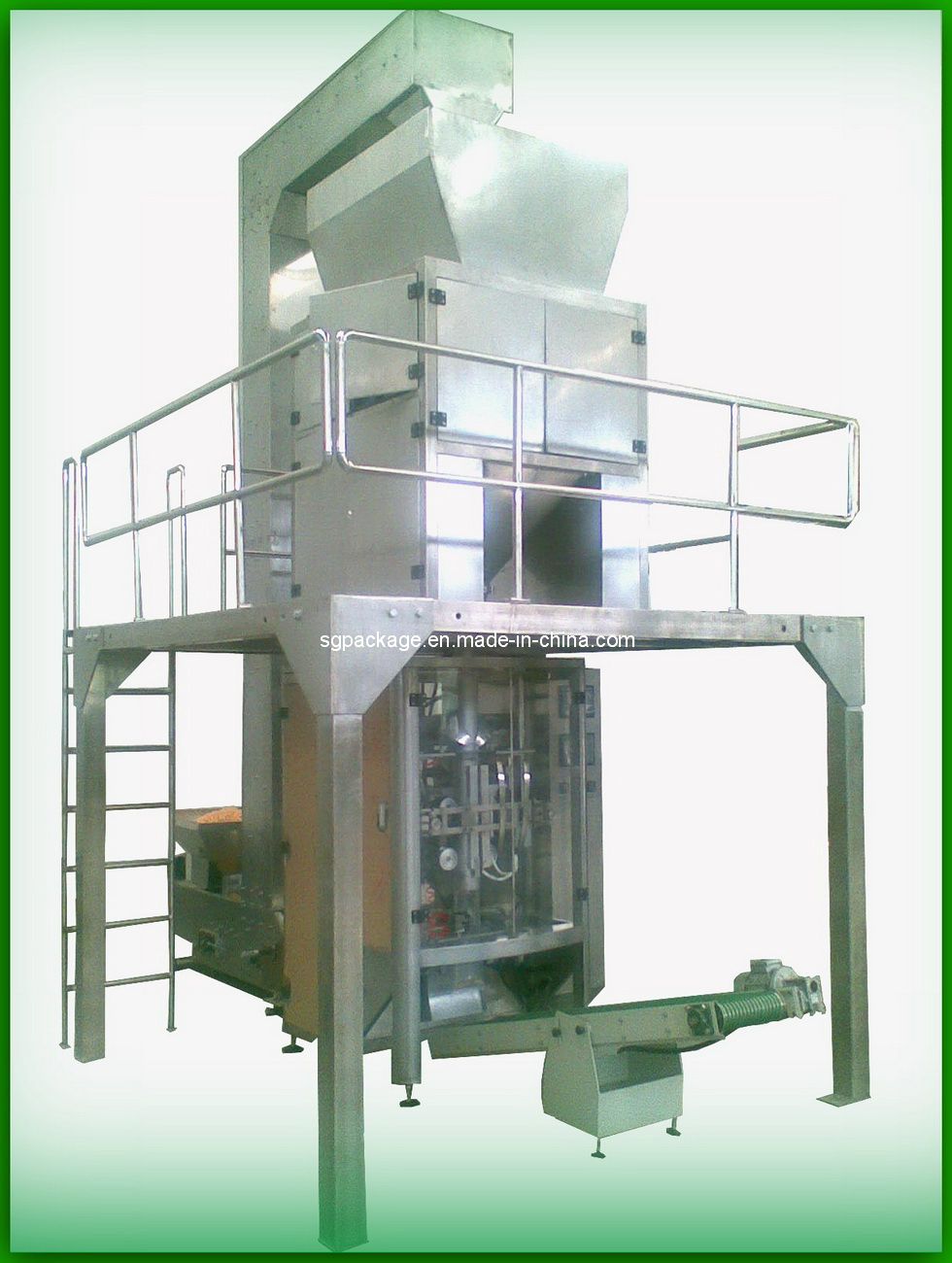

Automatic VFFS packing machine of granule in formed pouch for the grains, rice, corn, seeds, additives, fertlizer, detergent powder as well as other granular or micro-granular raw products.
Packaging Machine Standard Feature:
1. The packaging machine can automatically complete the products measuring, conveying and feeding, filling and bag forming, date code printing, bag sealing and cutting.
2. Servo-motor control bag pulling system.
3. High precision fiber optic photo sensor control, PLC control system.
4. Selected electrical and pneumatic components from reliable international manufacturer.
5. Preloaded operation menu on 5.7" touch screen, can easily set and change the packing parameter, displays daily production output and self-diagnostic machine error.
6. PID temperature controller monitors heat sealing temperature within +I-1centigrade degree.
7. Automatic edge position control assures consistent film alignment during production to produce uniform bag quality.
Optional Parts
1. Gusset pouch forming device
2. Date code printer
3. Materials transfer elevator
4. Feed out conveyor
5. Stainless steel bracket
Processing:
Partner:
After Sales Service:
1. One year warranty for the whole system.
2. Free equipment installation and debugging.
3. We can provide intenship service and help you train the operator and mechanic.
4. Free production technology and process configuration.
|
Weighing range |
10-500g, 500-3000g |
|
Weighing accuracy |
±0.2% |
|
Packing speed |
35-60bags/min |
|
Bag size |
50-450*70-300(mm)(L*W) |
|
Power |
5.5Kw |
|
Voltage |
50Hz/60Hz/220V/380V |
|
Power supply mode |
3-phase 5-wire system |
|
Air source pressure |
0.36-0.6Mpa |
|
Air consmption |
0.4m3/min |
|
Maximum film width |
630(mm) |
|
Inner diameter |
D75mm |
|
Outside diameter |
D500mm |
|
Operation interface |
Simens PLC control system |
Hefei Sanguan Mechanical & Electrical Equipment Co., Ltd. Is located in the national econimic and technological development zone, hefei city, Anhui province, covered an area of 8000 square meters. Since our compnay was founded in 2002, we are becoming a professional manufactue of scientific research, manufacturing, processing, sales of measuring instruments and packageing automatic machinery.
Current our leading product have includ packing machinery in the 9 major series and more than 30 varieties. Products are widely used in chemical industries, fertilizers, fodder, pesticides, washing-powder, seeds, food, medicines, seasonings, tea, building materials and many other industries.
Our products are exported to more than 10 countries and regions, such as Europe, Middle East, Southeast Asia, South Africa. In addition to creat first-class products, Sanguan company always put service at first, providing each customer with the best products, and the most perfect training.
Our company will keep peace with the development of the times, and continue to creat a better tomorrow.
