Main Introductions:

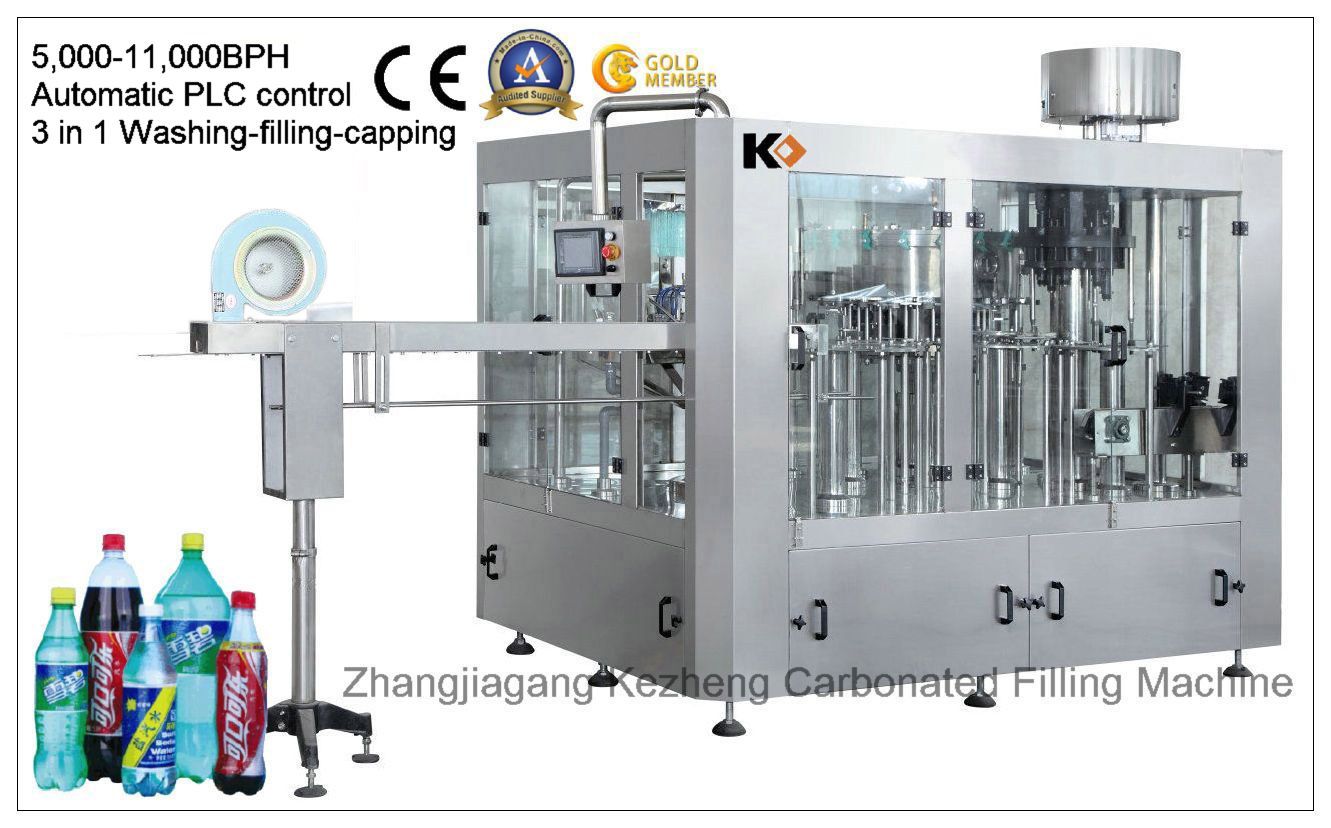

DCGF Series Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products,Combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor.
Advantages:
1. high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal carbonated drink filling production equipment in the country.
2.It adopts frequency controller to govern steplessly.The speed adjustment is very convenient.
3.It has safe and reliable auto filling system.No-Bottle No-Opening valve safe device makes filled liquid no lose/waste.
4.The liquid level of the floating ball is installed to control correctly the liquid height in the filling cylinder to make the filling valve work stadily.
5.It has auto-stop protection while bottle is blocked and start wheel displaces.Once a bottle is dropped and the driving wheel is blocked to mke the start wheel displaces.The machine will auto stops at once to avoid the machine damaging.
Main Usage:
It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user's demands.
Main Technological Parameters for DCGF32-32-12:
1.Production Capacity & Head Quantity:
Production Capacity: 6000~8000bottles/h;
Washing Head Quantity: 32;
Filling Valve Quantity: 32;
Capping Head Quantity: 12
Filling Condition:
Filling Temperature: Normal temperature;
Filling Type: Constant Pressure Filling;
Consumption:
Power: Main Motor: 5KW
Compressed air:3CBM/Hour
Ordering-Cap Motor: 0.09KW
Cap Elevating Motor: 0.34KW
Washing Pump: 0.37KW
Liquid Inlet Pump:0.55KW
Air Convey Motor: 2.2KW
Water Consumption:1.4T/Hour
Filling Condition:
Filing Temperature:3-5degree centigrade.
filling Type:Balanced Pressure Filing
Main Size:
Central Diameter of Filling Valve: ¢720mm;
Central Diameter of Capping Machine:¢240mm;
Central Diameter of Washing Machine:¢720mm
Outside Size & Weight of Main Machine
Whole Length: 4180mm;
Whole Width: 2280mm;
Whole Height: 2500mm;
Net Weight: 5500kg
Specifications:
| Model | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | DCGF40-40-15 | DCGF50-50-18 |
| Filler/Capper heads | 18-18-6 | 24-24-8 | 32-32-12 | 40-40-15 | 50-50-18 |
| Bottle diameter(mm) | Φ=50-100 H=170 330-1500ML | Φ50-Φ110 | H=150-320 |
| Production capacity (b/h) | 5000-6000 | 6000-7000 | 8000-90000 | 10000 | 11000 |
| Filling temperature | 0-5 |
| Filler type | Balanced pressure filler |
| Spraying pressure | 0.2-0.25 |
| Motor power(kw) | 3.1 | 3.1 | 5.6 | 7.5 | 9 |
Overall dimension
(L×W×H)mm | 2400×1900×2300 | 2800×2100×2300 | 4200×2300×2300 | 5000×2800×2400 | 5900×3100×2400 |
| weight kg | 3500 | 4550 | 5500 | 8000 | 9000 |
Important Parts for 3-in-1 Unit:
| S/N | PARTS | BRANDS |
| 1 | Transducer | Mitsubishi |
| 2 | Main electric appliances | Siemens (China) company |
| 3 | PLC | Mitsubishi |
| 4 | Contactor | Siemens (China) company |
| 5 | Sensor | Korean AUTONICS |
| 6 | Approaching switch | Korean AUTONICS |
| 7 | Fiber switch | Korean AUTONICS |
| 8 | Pneumatic component | AIRTAC in Taiwan
|
| 9 | Touch Screen | Xinjie in Taiwan |
| 10 | Decelerating machine | TianYu in Hangzhou |
| 11 | Main Motor | Liduo in Suzhou |
