Product Specifications
| Prod Model: |
15B ~ 40B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
SUS304 |
Product Description
Main Application :

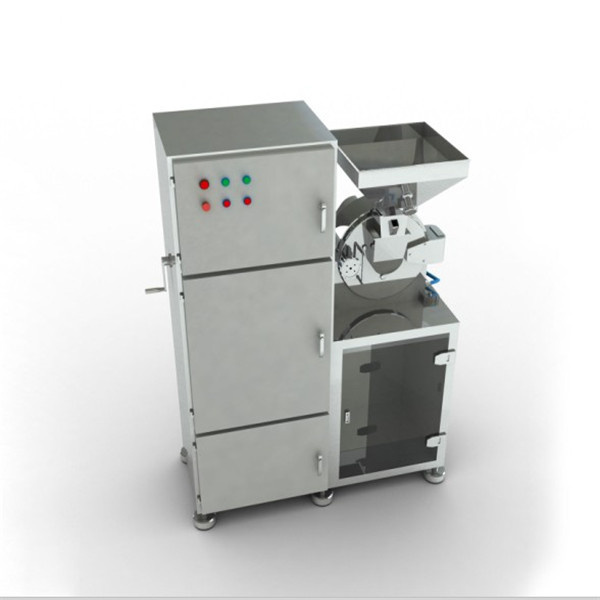

Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Working Principle:
By means of relative motion between movable and fixed fluted discs, ？material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to"GMP" standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
？
|
Model |
Production Capacity |
Spindle speed |
Feeding Size |
Crushing Fineness |
Crushing Motor |
Dust collecting motor |
overall dimension |
weight |
|
15BIV.V.VI |
10-50kg/h |
6000r/min |
6mm |
20-120mesh |
2.2kw |
0.55kw |
950*450*1550 |
220kg |
|
20BIV.V.VI |
60-150kg/h |
4500r/min |
6mm |
20-120mesh |
4kw |
1.5kw |
1120*600*1750 |
480kg |
|
30BIV.V.VI |
100-400kg/h |
3800r/min |
10mm |
20-120mesh |
5.5kw |
1.5kw |
1250*660*1750 |
550kg |
|
40BIV.V.VI |
160-1000kg/h |
3400r/min |
12mm |
20-120mesh |
11kw |
1.5kw |
1450*700*1750 |
680kg |
(P.S.:IV-mild steel,V-stainless steel,VI-stainles steel with water cooler)
|
