General description:
1,Applicable plastic: PE/PP film
2,Max Output capacity: 500kg/hour
3,Needed operation worker: 1 skilled workers
4,Electric power supply: (it can be customized)
Technical parameter of machine
Description:

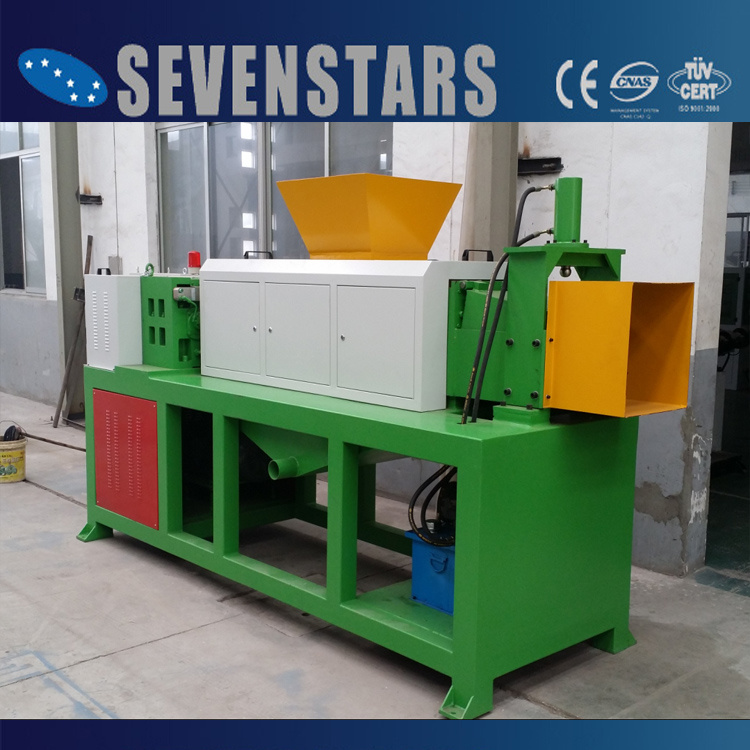

The crowded drying machine can dry the film flake immediately. Equiped with rotating screw, special reduction gear box, which could dewater and dry the film flakes.
Adopt Taiwan and Italian techniques.
Features:
1. This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing design;
2. It is equipped with electric control cabinet, feeder mouth is easy to control the die-face cutting effect
3. This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past.
4. Instead of the dewatering machine, hot blower in the recycling line and energy saving equipment.
PP/PE film squeezing machine |
NO | Item | Parameter |
1 | Motor power | 90kw |
2 | Main Material of Screw and barrel | 38CrMoALA with hardness treatment |
3 | Barrel thickness | 40mm |
4 | Nitrided Hardness | HV880-1050 |
5 | Nitrided depth | 0.6-0.8mm |
6 | tempering hardness | 0.015mm |
7 | Surface trightness | 0.015mm |
8 | Nitride brittleness | Less than grade 2 |
9 | Production capacity | 500kg/hour |
10 | Rotating speed | 60 -80r/min |
11 | Electric Control ways | Siemens brand PLC Automatic control |
Electric relay and contactor brand | Schneider |
12 | Diameter of barrel | 400mm |
13 | Cooling ways of die-heads and gearbox | By chilling water |
14 | Gearbox brand | Guomao brand |
15 | Speed control ways of pelletizing head | By inverter with ABB or danfoss brand |
16 | Motor power of pelletizing heads | 4kw |
17 | Heating power of die-head | 4kw |
18 | Air blower | 5.5kw |
19 | Included function of water drainage at the bottom |
20 | Whole sealing close design with high quality stainless steel 304 |
21 | This machine with silo : 2cubic to store the PP/PE granule |
22 | Material of silo : stainless steel 304 |
Part III Payment, Delivery, and others
1. Term of payment
30% as advance payment by T/T after signing contract;
70% as balance after inspection machine before delivery by T/T
2. Delivery
60 working days since receiving advance payment.
3. Packing
Machine: sea-worthy packing
4. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
5. Arrangement for inspection, installation and testing work
? After informed machines ready for inspection, customer can send engineers to us; Customer can also consign us to finish inspection work.
? After the machines are delivered to customer's factory, please arrange preparation work mentioned in detail 2.2 in advance;
? We will send technicians to the factory after preparation work is completed;
? Technicians will be responsible for guide on-site installation and testing machines.
? Meanwhile technicians will give free training lessons to labors in customer's factory.
? The customer just needs to bear expenses generated for this work, e.g. airplane tickets (round-way), residency, meals and allowance of USD50 per day for each technician.
6. Quantity and quality guarantee
? Quantity/Quality Discrepancy to destination port during transportation:
In case of quality/quantity discrepancy to destination port in transportation, customer should file claim within 30 days after the arrival of the goods at port of destination. We will not be responsible for any discrepancy of the goods caused by shipping company and other transportation organization and/or post office.
? Guarantee period and after-sales services: 12 since installation finish and machine normal working
During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide spare parts at cost price.
? Long-term service:
we will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
