Product Specifications
| Prod Model: |
W24S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Anhui, China (Mainland) |
| Brand Name: |
Baide |
| Machine Type: |
Bending Machine |
| Material / Metal Processed: |
Carbon Steel |
| Power: |
Hydraulic |
| Automation: |
Automatic |
| Color: |
Orange or as Appointed. |
| Speed: |
Fast and Steady |
| Customized: |
Welcome. |
| Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
| Certification: |
CE, ISO, SGS |
Product Description

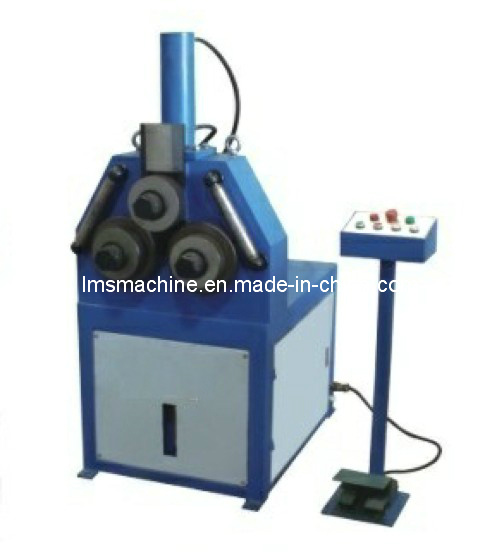

BAIDE W24S profile bending machine Features:
1. The main three rollers and curvature adjustment of Square Pipe Bending Machine, Round Pipe Bending Machines is drove by hydraulic system, which with stability performance.
2. Square Pipe Bending Machine, Round Pipe Bending Machines adopt grating ruler for curvature range adjustment, which with high precision. Square Pipe Bending Machine, Round Pipe Bending Machines is allowed to adjust curvature either by two rollers meanwhile, or by single roller according to set, which is easy to operate.
3. Square Pipe Bending Machine, Round Pipe Bending Machines use touch panel and PLC electrical control system, with advanced technology and stable performance;
4. With fault auto-detecting system and alarm function, and Square Pipe Bending Machine, Round Pipe Bending Machines display error information and solving suggestion on screen;
5. Square Pipe Bending Machine, Round Pipe Bending Machines equipe counting function, to record the quantity of processed workpieces
6. All bending data can be saved in PLC of Square Pipe Bending Machine, Round Pipe Bending Machines as permanent memory, and can be use at any time.
7. Square Pipe Bending Machine, Round Pipe Bending Machines have manual, semi-automatic and automatic work mode. Powerful cooling system allows the Square Pipe Bending Machine, Round Pipe Bending Machines could be used in tropic area stably;
8. Square Pipe Bending Machine, Round Pipe Bending Machines allow to process varies of metal profile, such as angle iron, flat steel, round pipe and other material of abnormal section profile, through change the groove of bending dies;
9. Square Pipe Bending Machine, Round Pipe Bending Machines is able to bend large size profile, while no need to make super size bending die.
Profile bending machine technical parameter:
|
TPYE (W24Y/W24YPC/W25K-) |
30 |
45 |
75 |
100 |
140 |
180 |
260 |
320 |
400 |
500 |
|
profile Max. bend section module(cm*2) |
30 |
45 |
75 |
100 |
140 |
180 |
260 |
320 |
400 |
500 |
|
bending speed(m/min) |
5 |
5 |
5 |
5 |
5 |
4 |
4 |
4 |
4 |
4 |
|
profile yield limit (Mpa) |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
|
Max hydraulic pressure(kw) |
8 |
12 |
14 |
16 |
16 |
16 |
18 |
20 |
25 |
25 |
|
oil pump pressure(kw) |
12 |
16 |
16 |
21 |
21 |
21 |
25 |
31.5 |
31.5 |
31.5 |
|
measure ment(L*W*H)(M) |
1.6*1.2*11 |
1.8*1.5*1.2 |
2.1*1.8*1.6 |
2.2*1.9*1.6 |
2.5*2.2*1.6 |
3.1*2.3*1.8 |
3.6*2.6*1.8 |
4.0*3.2*2 |
4.5*3.5*2.2 |
5.5*4.0*2.5 |
|
weight(kg) |
3400 |
5000 |
7000 |
9000 |
11000 |
16000 |
23000 |
30000 |
36000 |
45000 |
Maanshan Baide CNC Machinery Co., Ltd is a professional manufacturer of metal bending machine, metal forming machine and according machine tools. The main machines we manufacture are; 4 column hydraulic press, single column hydraulic press, pneumatic power press, mechanical power press, CNC power press, mechanical shearing machine, hydraulic swing beam shearing machine, hydraulic guillotine shearing machine, CNC shearing machine, hydraulic plate press brake, CNC press brake, 3 roll plate bending machine, 4 roll plate bending machine, combined iron worker machine, hole punching machine, plate leveling machine, profile bending machine, CNC cutting machine, cut to length line, slitting line, duct manufacture machines, etc.
Our company occupy 20000 square meters, the manufacture factory occupy 10000 square meters, annual manufacture value is above 80000000 yuan RMB, in which more than 25000000 yuan RMB are for exporting. Our company have perfect after sale service system, there are total 14 sale and after sale service agencies in different big cities, 26 technicians special for after sale service and machine maintenance. At oversea market, our company is going to establish departments at European and Middle Asia, to enlarge our service area.
All the times we put the machine quality at the first position, focus on the machine development and update, which keep our company have a fast development speed and get good reputation from customers. Our long-term cooperation company include; Foxconn, NK car, China Aluminum Group, Sany Group, Fangyuan Group, Tianrun Crankshaft, Konka, etc. Our company make "satisfy the customers"as our target, hope to create the best future with old and new customers.
