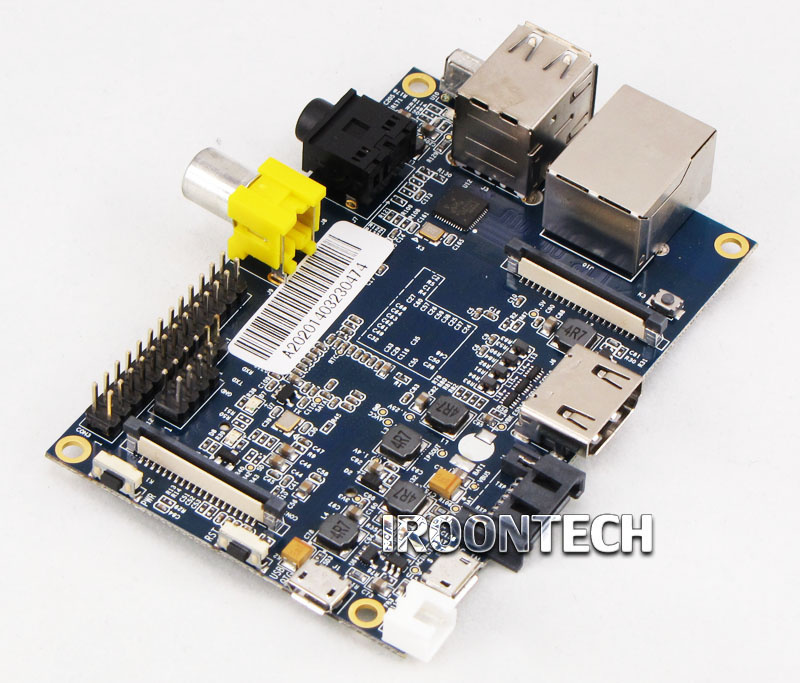

Banana PI 1G ddr3 support Raspberry PI, android, linux, Cubieboard
For download the Image of the Banana PI, please visit our Forum: www.banana-pi.org
Use method
Step 1: Get what you need.
1 SD card
Minimum size 4Gb; Class 4
2 a HDMI(Full sized) to HDMI / DVI lead
2bAV video lead
3 Keyboard and mouse
4Ethernet cable/USB WiFi(Optional)
5Micro USB power adapter
6Audio lead (Optional)
7Mobile Hard disk (Optional)
Step 2: Prepare your SD card for the Banana Pi
Format the SD card.
Windows:
Download the a SD card format tool such as SD Formatter from
Unzip the download file and run the setup. Exe to install the tool on your machine.
In the "Options" menu, set "FORMAT TYPE" option to QUICK, "FORMAT SIZE ADJUSTMENT" option to "ON".
Check that the SD card you inserted matches the one selected by the Tool.
Click the "Format" button.
Linux:
Run fdisk l command to check the SD card node.
Run sudo fdisk /dev/sdx command to delete all partition of SD card.
Run mkfs t vfat /dev/sdx command to format the entire SD card as FAT.
(x should be replaced according to your SD card node)
Download the OS image from Download district.
Unzip the download file to get the OS image.
Windows: Right click on the file and choose "Extract all".
Linux: Run unzip [downloaded filename] command.
Write the image file to the SD card.
Windows:
Download a tool that can wirte image to SD card, such as Win32 Diskimager from:
Open the unzipped image file.
Click Write button. Wait patiently to successfully complete writing.
Linux:
Run fdisk l command to check the SD card node.
Run dd if=[imagename] of=/dev/sdx command to write image file to SD card. Wait patiently to successfully complete writing.
Step 3: Set up your Banana Pi
According to the set up diagram below, you can easily set up your Banana Pi.
Insert the written-image SD card that to the SD card spot on the left side edge of the underside of the board.
On the bottom "edge" in the middle of the board is the HDMI Type A (Full sized) port, just on the right of the SATA port. Just connect any HDMI cable from the board to your TV or HDMI Monitor.
If you don't have an TV/Monitor with a HDMI or DVI-D port you can use the yellow AV jack located in the middle of the "top" edge and the 3.5 mm stereo headphone jack to the right of it.
Plug a USB keyboard and mouse into the USB slots located on the right edge.
Just under the USB ports on the right edge is the ethernet connector for anyone who wants to plug the Banana Pi into a wired network.
Finally, at the very left of the bottom edge is the micro-usb power connector. Plug in a regulated power supply that is rated at 5V ± 5% and at least 700mA (or 0.7A). Any number bigger than 700 mA (like 1000mA) will also work. Avoid using the smaller chargers used for small GSM phones, as these are often unregulated, even if they claim "5V 1A", they may do "5V" and may do "1A", but not at the same time!
The mini-USB (on the left) is the wrong one. It's thicker and looks like a trapezoid with its sides pinched in. The micro-USB (on the right) is the correct one. It is thinner and also looks like a trapezoid except it's sides are rounded outward.
If all goes well, the Banana Pi will boot in a few minutes. The screen will display the OS GUI.
Step 4: Shut down your Banana Pi
You can use the GUI to shut down the Banana Pi safely.
Also you can run the command in the terminal:
Sudo halt
Or
Sudo shutdown h.
This will shut down the PI safely, (just use the power key to turn off might damage the SD-cards file system). After that you can press the power key for 5 seconds to turn it off.
