Product Specifications
| Prod Model: |
XK3110-G2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

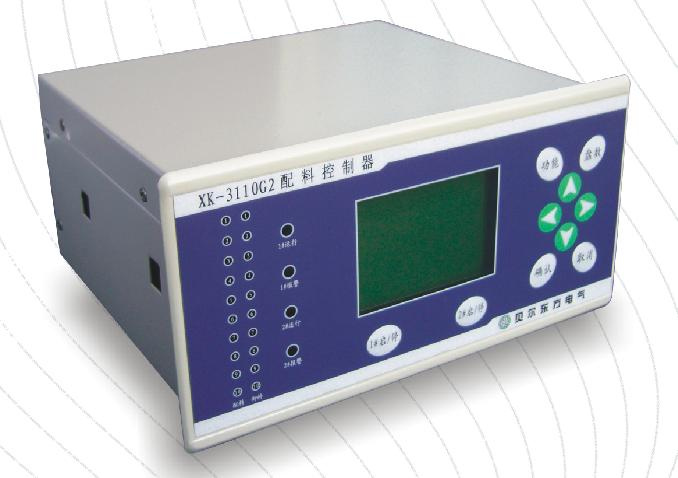

XK3110-G2 batch managing controller mainly used to manage and control single or double concrete production. The common scale which using the competition mode feeding improves productivity, you can choose to use common scale or not. The internale RS232 port can connect with computer, human-machine interface and printer.
Product parameter
Brand: Oriental Nobel
Model: XK3110-G2
Measuring range: 10 scale maximum
Display: LED
Dimention: 100mm*200mm
Working temperature: 0~50 degree
Technical specification
Power: AC220V± 15%, 50Hz;
Power consumption: 9W;
DI: 24, optical isolation, internal power source or extertal DC24V;
On-off output: : 16, optical isolation, relay output, DC30V/0.5A;
Communication mode: Serial EIA-RS485 standard;
Print interface: Serial RS232, microprinter available.
Luoyang Oriental Nobel Electric Co., Ltd. was founded in 2004, and obtained China Metrology Certification in 2006. Luoyang Oriental Nobel Electric Co., Ltd. is a high-tech enterprise which is specialized in batch weighing instrument, batch weighing controller, industrial automatic control system designing and manufacturing.
We manufacture and supply standard products, such as XK3110 weighting indicator controller (series A, B^manage instruments of series G), ampere-voltage digital meter with RS232 communication, transmitter, sensor, junction box, level detector, PLD2008 series of automatic batch weighing control system etc.
We also offer customer specific weighing solutions, and complete sets of automatic control engineering.
Our dedicated team of employees and their technological expertise is our core strength. Passion drives us to reach new heights and the company is on a continuous growth path.
