Product Specifications
Prod Model: |
BYC168-3UV |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ink Type: |
Cmyk+Wwww(White) 8 Colors |
Max Print Size: |
28*60*18cm |
Photo Print Speed (1440dpi): |
Approx 2 Minutes for A3 Size |
Voltage: |
110V / 220V |
Power Consumption: |
Approx 140W |
Printer Dimension: |
87*80*63cm, 68kg |
Gross Dimension (with Wooden Case): |
Approx 96*76*78cm, 100kg |
Color & Page: |
Multi-Colour Printing Press |
Printing Interface: |
USB2.0 |
Plate: |
Flatbed Printing Machine |
Structure: |
UV LED Inkjet Printing |
Usage: |
UV LED Flatbed Printer |
System Supported: |
Windows XP/Vista/7/8 |
Printing Speed: |
Approx 2 Minutes for A3 Size Photo |
Product Description

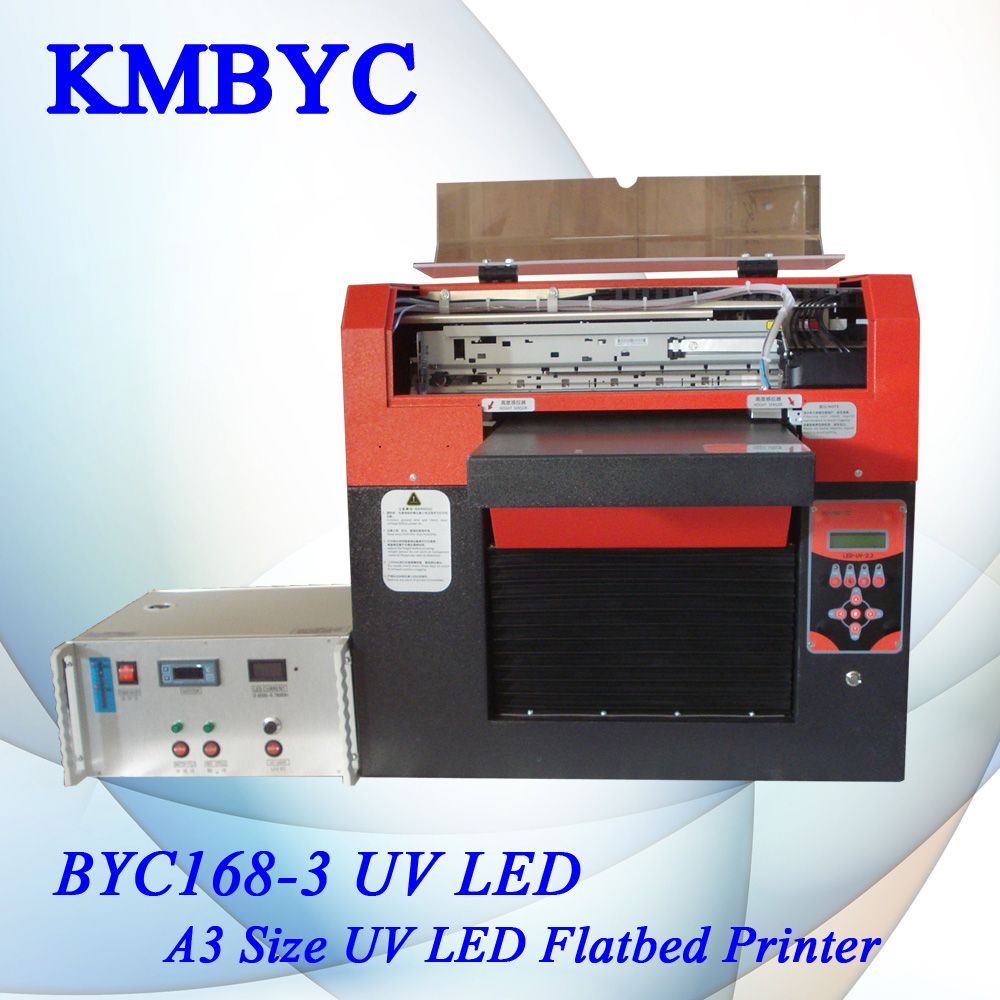

Best Quality digital embossment phone cases printing machine With A3 format
Brief Introduction
1.Our printer with high printing speed and batch production is available .
2.Our print effect have stereo feeling .
3.Our printer is easy used to print durable and lasting design .
4.Our printer can print phone case directly.
Brief Specification
BYC 168-3 UV LED
Max Print Size | 28*60cm |
Max Material Thickness | 18cm |
Max Resolution | 5760*1440dpi (Optional) 5760*1440dpi (Optional) |
Nozzle Configuration | 1440 nozzles (180 * 8 color channels) |
Minimum Ink Droplet Size | 1.5 Pico liters |
Ink Type | 8 colors CMYK+WWWW(White) |
Ink Supply | CISS |
Rated Voltage | AC 110/220V |
Power Consumption | approx 140W |
UV Light Wavelength | 395nm |
Interface | Hi-Speed USB 2.0 |
Height Adjustment | automatically by infrared ray |
Print Speed | A3 size photo costs about 2 minutes (1440*720dpi) |
Operating Systems | windows 2000/XP/7 |
Operating Temperature | 50° to 95° F (10° to 35° C) |
Operating Humidity | 20% to 80% |
Net Dimension | approx 87*80*63cm |
Gross Dimension | approx 96*76*78cm packed in wooden case |
Net Weight | approx 68kg |
Gross Weight | approx 100kg |
Necessary Consumables
1. Color UV ink + White UV ink, can print on any color product;
2. Cleaning liquid: it is better to keep some Cleaning liquid in stock, you may need to clean the printer someday (for example if the printer will not work for long time);
3. RIP software is necessary for print white color, and its inner ICC is very good for print all colors.
Packing & Shipping
1.Packed in wooden case approx 96*76*78cm .
2.Send goods out within 3 workdays after get payment .
3.Shipped by sea ,air,land.
Please inform us the information of your address, seaport or airport, so we can quote for shipping.
Our service
Warranty:We offer one year warranty which includes maintenance and technical support .(except CISS, cleaning unit, print head or damage by human.)
Company Information
We are the designer and oldest manufacturer of flatbed printer; we start research and produce since 2002; and sold very big amount printers to many coutries.
As one of the most experienced manufacturer, we provide high quality machine and good support.
We cooperate with professional freight companies for many years; we will provide fast and safe shipping.
Our factory is SGS cetificated; our product is CE certificated.
You can get high quality machine, good service and lifelong support from us.
Thanks for reading; if you are interest in this printer, please feel free to contact us.
We will reply you within 12 hours.
Kunming Boyichuang Technology Development Co., Ltd. is located in the beautiful City of Perpetual Spring - Kunming City. Our company began researching and producing multifunctional flatbed printer since2001; We quickly fill in the market gap, and soon becomes the leader of multifunctional flatbed printer industry and gain most of the domestic market.
Through years' continuous development, Kunming Boyichuang establishes branch offices in Shenzhen, Shanghai and Guangzhou; Expanded the local sales and improved after-sales service network.
Kunming Boyichuang has more than ten years research, development and production experience in flatbed printer manufacture field; As the biggest domestic producer and seller on small and medium sized multifunctional flatbed printer, our products have been sold to all provinces (include Hongkong, Macao and Taiwan province) of China and more than 100 foreign countries and oversea regions.
On the belief of company philosophy - "growing with honesty and healthy, leading with profession and specialty", we will provide better quality and more efficient multifunctional flatbed printer for you.
