Product Specifications
Prod Model: |
KS-868E |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
433.92MHz |
Power: |
AC220V±15% |
Siren Built In: |
Inner Siren |
GSM And PSTN: |
Optional |
Standard Package: |
1panel+2 Remotes+1door Sensor+1PIR |
Color: |
Ivory White |
Material: |
Plastic |
Zone: |
16 Wireless and 4 Wired Zones |
Item: |
Security System GSM Based |
Type: |
Home Alarm |
Signal Transmission: |
Wireless Alarm |
Working Mode: |
Passive |
Certification: |
CCC |
Application: |
Indoor |
Sensor Type: |
Infrared Alarm System |
Working Principle: |
Electromechanical |
Transmission Mode: |
Wireless |
Alarm Volume (',within 1m): |
≥90dB |
Receive Frequency: |
433.92MHz |
Usage: |
Personal |
Product Description

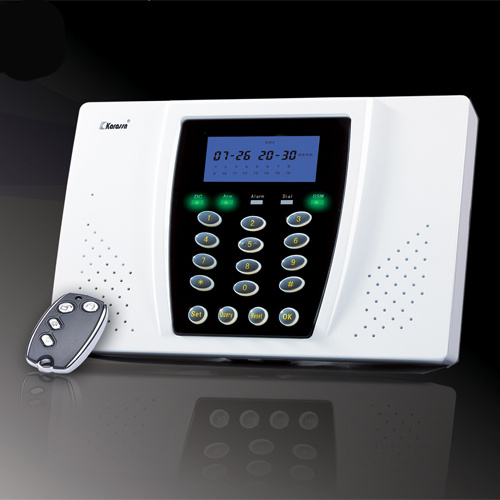

Best quality wireless home security system gsm based
Company:
Karassn Security Protection Electronics Co., LTD was founded in 2000, cover 6000square meter, employing over 250 staffs. The company had invested over USD1 million establish its own production line and design department. we have our own R&D department. Production line capacity each month is 30,000 sets alarm systems with turnover around USD9.5 million yearly. Manufacturing & exporting more than 50kinds of alarm systems. GSM/PSTN alarm system, Home/Commercial /Industrial alarm system, Wireless Visible alarm system, Wireless Long distance alarm system and wireless/wired accessories.
Brief of security system gsm based:
With the most advanced Digital sensing and transmission technology, this alarm is an Intelligent Alarm System combine fire, burglar and gas leakage alarm.Support IOS and Android program and remote operation. With GSM, the system can SMS or call on preset phone numbers. With nice appearance, powerful function, It is widely used in home, office, factory and buildings.
Mean features:
1. Built-in GSM module for alarming, no wire needed
2. 16 wireless zone, 3 detectors for each zone, four attribute for option: burglar,delay, Vocal Duress, Mute Duress
3. Max enroll 8 remote controllers, support home arm, away arm
4. Operated by IOS or Android based smart phone
5. alarm phone type can be set in SMS,Dialing,or SMS & dialing.
6. With 20s recording
7. The home alarm system support two way communication
8. Built-in siren, three levels sound adjustment, support wireless siren&one 12V interface for wired siren,
9. Report of AC and battery power status, on/off optional
10. Arm/disarm report, on/off optional
11. Support remote opration by SMS for arm, disarm, monitoring
12. Support on site monitoring
13. With arm/disarm timer, can set based on working days and weekends
Specifications:
Model | KS-868E security system gsm based |
Brand | KARASSN |
Power | AC220V±15% |
Battery | 12V/900mAh |
Output current of siren | <150mA |
Inner siren | >90dB |
Wireless working frequency | 433MHz gsm pstn alarm system |
GSM band | 900MHz,1800MHz,1900MHz |
GSM emiting currency | ≤2W(900MHz),≤1W(1800MHz,1900MHz) |
Working temperature | -10°C - +50°C |
Humidity | 10 ~ 85% |
Wireless distance | ≥400m in open area (PIR to Unit) |
≥200m in open area (Remote controller to Unit) |
≥300m in open area (Siren to Unit) |
Size | 180 x 130 x 39 (mm) |
Shipment and payment:
MOQ | 10 Sets security system gsm based |
Sample | Sample available for GSM Alarm System |
Shipping | by Air, Sea or Express, such as DHL/FEDEX/UPS etc. |
Payment | L/C, T/T, Western Union, Escrow |
FAQ:
Q: 1. How about the quality of the products?
A: We produce every product with good quality materials, and test carefully follow our own standard(our testing procedure) or customers requirements to make sure good and stable quality during production. So please don't worry, as we wanna long-term business cooperation with customers.
Q: 2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 3. What is the lead time?
A:Sample needs 1-2 working days, mass production time needs 5-15 working days depends on order qty.
Q: 4. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first and take a picture for you to confirm before mass production.
Q: 5. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT, or by Air, or by Sea by your request
Q: 6. Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
Q: 7. Do you accept drop shipping?
A: Yes, it's available
Why choose us:
1.OEM and ODM available for the home alarm system;
2.Certification: CE , CCC, ISO9001;
3.7 full new moving assemble lines;
4.Over 250 employees and 50 R&D engineers;
5.Supplier Assessed by Bureau Veritas France;
6.14 years experience specialize in designing, manufacturing home alarm systems;
7.14 years experience in overseas market. Customers are from more than 50 countries.
